Specifications
Vacuum coating machine1.Certified ISO UAKS
2.Nice after-sales service
3.Strong technology support
4.Size can be dustomi

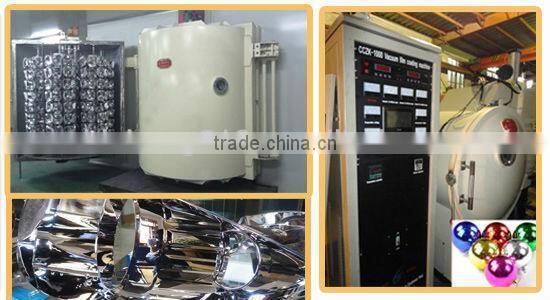

Perfume caps high Vacuum Coating Machine/ Plastic beads vacuum metallizing machine/ PVD vacuum plating machine
1.Features: Aluminum Film Vacuum Coating Machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified. With a reasonable structure, coating evenly into good quality, pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
2.Application:Widely used in reflective Cup, cosmetics, shoe heel, TPU, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, audio and various small appliances, sanitary,clocks and watches, cell phones,cosmetic caps, cosmetics,toys,etc.
3.We can design machine based on user requirements specification models of Vacuum Coaters.Vacuum
units and electric control system can be designed according to user requirements.
|
Mode Dimension |
CCZK-1000 |
CCZK-1200 |
CCZK-1400 |
CCZK-1600 |
1000*1250mm |
1200*1400mm |
1400*1950mm |
1600*1950mm |
|
Film type |
Semitransparent film, transparent film, non-conducting film, gold, silver, red, blue, green, purple, colorful film,ect.. |
|||
Power source |
Thermal evaporation power, bombard power, RF power |
|||
Vacuum chamber structure |
Vertical double/single door, horizontal single door, vacuum system |
|||
Vacuum system |
Diffusion pump +Roots pump +Mechanical pump +Holding pump |
|||
Workpiece rack motion |
Rotation & revolution, frequency control |
|||
Control mode |
Manual/Automatic all-in-one model, Touch screen+PLC |
|||
Ultimate vacuum |
8×10 -4 Pa(clean vessel, idle load) |
|||
Pumping speed |
5×10-2≤5min (clean vessel, idle load) |
|||
Total water volume |
0.2Mpa 3m3/h |
|||
Total gas volume |
0.4-0.8Mpa |
|||
