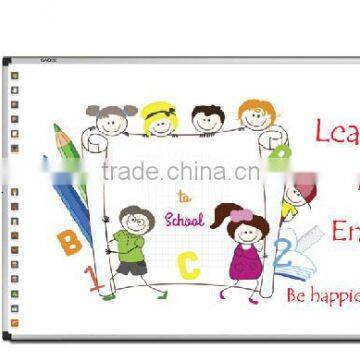

usb magnetic glass whiteboard iq board interactive smart non-glare magnetic glass 2 user writing board
GKBoard interactive whiteboard connects with a general computer by a USB cable, the display output of computer can be projected on the whiteboard through a projector. After calibration, touch and tracking information from the board will be transferred into pointer click and movement of the mouse, and by Gaoke software or other program, all click, tracking and writing information will be displayed on the board at real time.

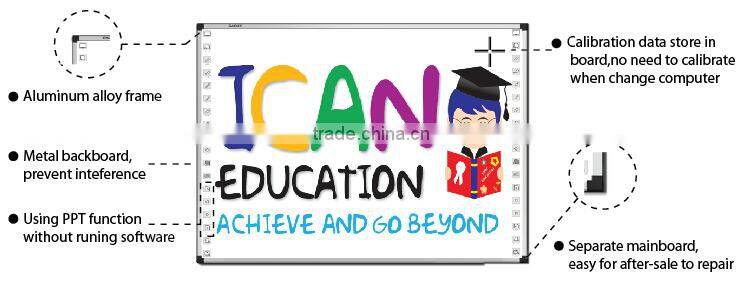

GKBoard electromagnetic smart board hardware features:
- Board writing smoothly and fluently ,with high precision;
- No light spots, to protect user’s eyes;
- the GKBoard could be used also as a traditional white board using water pen for writing.
- All kinds of board material can satisfy different requirement of customers.
- The reverse side use zinc coating plate, to avoid whiteboard working abnormally because of electromagnetic interference
- The main PCB is separated from the board, be convenient for after-sale to repair quickly
- Scratches on the board surface will not affect the use of GKBoard.
- One key for positioning calibration.
GKBoard electromagnetic smart board software features:
- Free upgrade for life;
- Offering free resource download website;
- Supports diverse resource database self-defined by common format files, no limit to the number of resource;
- Marking play-status of Microsoft PowerPoint;
- Catching and marking any desktop contents (files can be printed )
- Audio , video recording and playback function
- Users can expand the application functionality themselves
- One key switch between left mouse button and right mouse button.
- Supporting to insert images, animation, video and other files
- Supporting to self-defined shortcut button function.
Model |
GK-880D/82S |
GK-880D/85S |
GK-880D/95 |
GK-880D/102 |
GK-880D/104 |
Principle |
Electromagnetic Technology |
||||
Ratio |
4:3 |
4:3 |
16:10 |
16:9 |
4:3 |
Dimension |
82inch |
85inch |
95inch |
102inch |
104inch |
Appearance size(mm) |
1650X1235 |
1750X1235 |
2070X1235 |
2276X1235 |
2141X1535 |
Active size(mm) |
1589X1184 |
1689X1184 |
2010X1184 |
2225X1184 |
2080X1484 |
Short key |
No |
Two Sides |
Two Sides |
Two Sides |
Two Sides |
Writing tools |
Wireless electromagnetic pen |
Precision |
0.05mm |
Surface material |
Writing material with low reflection |
Resolution |
8192X8192 |
Backplane |
Zinc coating plate material |
Power supply |
USB only |
Frame material |
Aluminium alloy |
Consumption |
<1W |
Cursor speed |
250 point/sec |
Driver mode |
Plug and play |
Modular design |
Put the PCB and replace easily |
Working temps |
(-10~55°C) |
Supported OS |
Win8/win7/vista/xp/2003/2000/me/98 |
working humidity |
(10%-95%) |
USB cable length |
7m |
Installation |
Wall mounted or mobile stand |

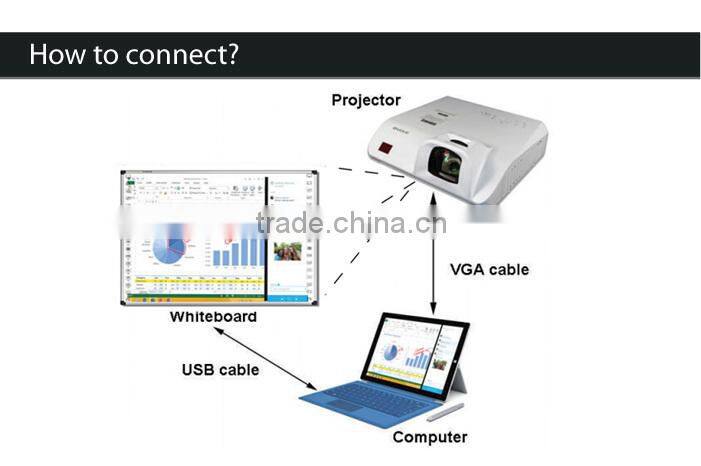

1. How it working? Need any other product?
Gaoke GK-880D series interactive whiteboard system need at least three product to working: 1. Interactive whiteboard, 2. Projector, 3. Computer. Users also can choose visualizer, pointer, speakers.etc to working with interactive whiteboard system.
2. MOQ, Delivery term, Payment term?
Our normal order MOQ is 1 pcs, OEM MOQ is >100pcs.
Delivery term: EXW, FOB, CNF, CIF.etc is no problem.
Payment term: T/T, Western Union, Paypal, Escrow.etc
Any other questions pls kindly email us.
