Help CenterMedal PVD Vacuum Metallizing Machine
Related Products
-
CCZK-900 Vertical Shoe Heel Vacuum Evaporation Coating MachineNegotiableMOQ: 1 Set -
Perfume Caps Vacuum Metallizing MachineUS$ 20,000 - 100,000MOQ: 1 Set
-
Resin Diamond Vacuum Metalizing MachineNegotiableMOQ: 1 Set
-
High Vacuum Metalizing Machine for Perfume CapsNegotiableMOQ: 1 Set
-
Aluminum Film Vacuum Coating MachineNegotiableMOQ: 1 Set
Specifications
1.Certified ISO90012.Nice after-sales service
3.Strong technology support
4.Size customized
5.Warranty: 1 year
what's the details of the cczk-1100 vacuum coating machine
1.Fast deposition speed and high production effiency ,coated film with excellent brightness and well adhesion.
2.Intelligent automatic control, easy to operate the machine without any experience.
3.Environment friendly ,no waste water and gas.
4.Manufacturing by CICEL latest technology,also approved CE and ISO international quality management system certification.
specification of our CCZK-1100 vacuum coating machine

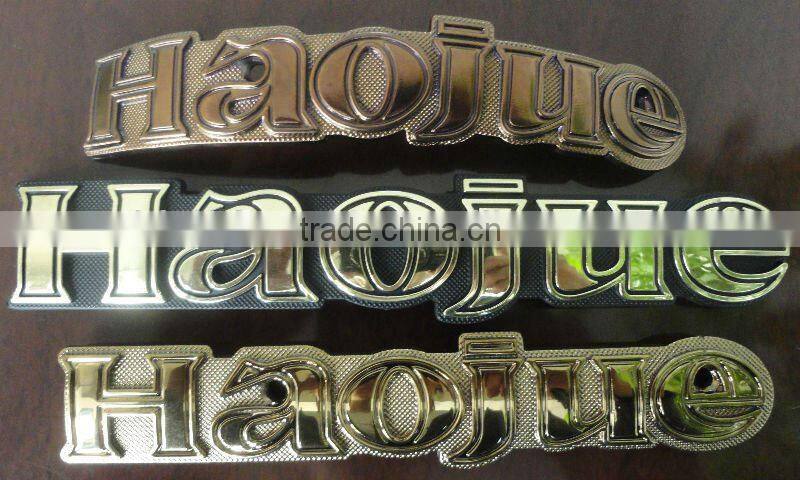

Medal PVD vacuum metallizing machine/ Chrome vacuum coating machine/ Reflective film vacuum coating for auto parts
1. Application:It is applicable in decorative film in various plastic products, and glass. The aluminum-coated film is bright, delicate coating speed, high efficiency and simple operation, equipment stability.
We are able to supply customized vertical single-open and double-open or horizontal film coating machine according to the requirements of our customers.
Vacuum evaporation aluminum coating equipment main models and parameters
2. Main Features:
1>This machine is equipped with a super big crucible electronic gun. In the entire evaporation process the film surface is flat and evaporation distribution is even.
2>This machine is equipped with a quartz crystal film thickness control instrument to control the film forming speed and metallization process automatically.
3>The overall structure is rationally designed to better satisfy the process requirements. The vacuum system is automatically controlled by PLC for convenient operation.
4>The vacuum operating system is protected with an interlock. The diffusion pump has water cutoff and phase loss alarm functions.
5>Touch screen and PLC automatic control are used to set parameters of main components of the entire machine, to monitor the running of this machine at real time, and to diagnose faults intelligently.
6>Control System: The vacuum is controlled by a 10.4 inches color touch screen coupled with a programmable logic controller. The vacuum and coating process are controlled fully automatically.
3. Technical Parameters:
1> Vacuum chamber: ø1100mm×1000mm
2>Vacuum degree: (ultimate vacuum) 8×10 -4 Pa(clean vessel, idle load)
3.>Pumping speed: 5×10-2≤5min (clean vessel, idle load)
4>Evaporation power:380V/12V 20KW
5>Total power: 380V 50Hz 23KW (max. 45KW within short time)
6>Total water volume: 0.2Mpa 3m3/h
7>Total gas volume: 0.4-0.8Mpa
Why choose us?
1.we are the alibaba Assessed 1year Gold supplier.
2.We are the a factury manufacturing vacuum coating machine ,best product capability,best quality control , best service.
3.Inspected by the inspection institution of bureau veritas certification.
4.100%QC inspection before shippment.
5.CE/ISO listed ,competitive price.
Company information
WENZHOU CICEL VACUUM MACHINERY CO.,LTD. is located binhai park in zhejiang wenzhou ,it is a professional enterprise of wenzhou large equipment R&D production,marketing and customer service as one of the company management, most of the staff have many years of production management experience and technology of vacuum.assembly personnel with rich experience in production technology.
The company's main products are:high performance evaporation vacuum coating machine equipment, magnetron supttering coating line,multi-arc ion plating equipment,magnetron supttering vacuum coating machine,the glass vacuum coating machine,optical coating equipment,light protective film professional vacuum coating equipment,the UV line automatic spraying line.
Clients of the company has covered all over the world,the main international trade in central Asia,Turkey,India,and so on.
