vacuum aluminium coating machine for mirror turky

FOB Price

USD $50,580 - $50,600 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port sahnghai

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Coating Production Line	Substrate:	Other, plastic
Coating:	Plating	Place of Origin:	Zhejiang, China	Brand Name:	CICEL
Model Number:	CZ-1800EL	Voltage:	380v	Power(W):	20kw
Dimension(LWH):	1800mm*2000mm	Weight:	4t	Certification:	CE
Warranty:	1year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

pvd vacuum coaters
1,good abrasion resistance
2,Easy to operate
3,Nice after-service support
4,environment-protect

CZ-1800EL main configuration of machine

Part name		Specification	Supplier	Qty.
Vacuum chamber		ø1800mm×H2000mm vertical with double doors	CICEL	1set
Lining board		0.6mm, SUS304	CICEL	1set

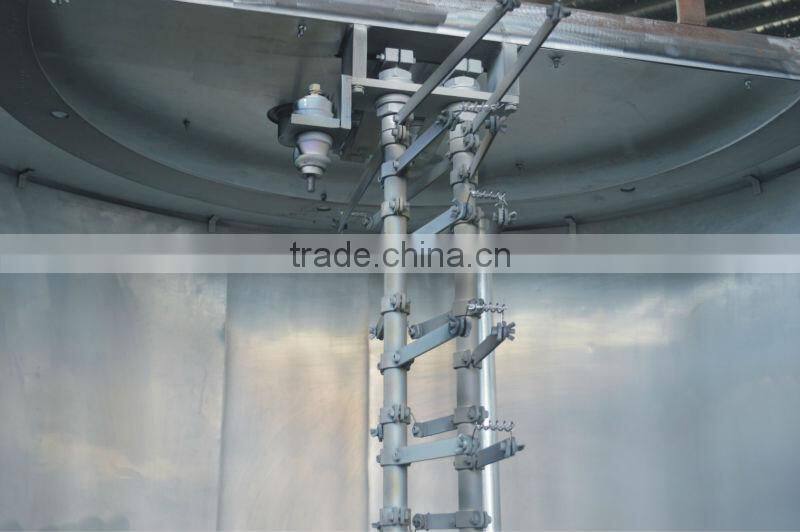

Rotation system of workpiece		Frequency regulation	CICEL	1set
Evaporation power		SCR	CICEL	1set
Evaporating transformer		25KW	GUANGDONG	1set
Glow ion cleaning		Transformer system,13KW	GUANGDONG	1set
Pipe system		Standard equipment	CICEL	1set
Vacuum gauge		ZDF-5227	SICHUANG	1set
valve	Main valve	GDQ-800	CICEL	2set
	Rough valve	GDQ-200	CICEL	1set
	Front valve	GDQ-200	CICEL	1set
Vacuum System	Diffusion pump	KT-800	CICEL	2set
	Mechanical pump	H-150	TONGRI LTD	2set
	Roots pump	ZJY-1200A	YANGGUANG LTD	1set
	Holding pump	2X-30	NANGUANG LTD	1set
Intelligent program		PLC controlled,CICEL program	MITSUBISHI	1set
Electric element		Standard equipment	OMRON,DELIXI	1set
Man-machine interaction		10.4 inch,color touch screen	XINJIE LTD	1set
Pump speed		5×10-²≤4.5mins	Clean idle oven(no-load )

2. Vacuum Chamber

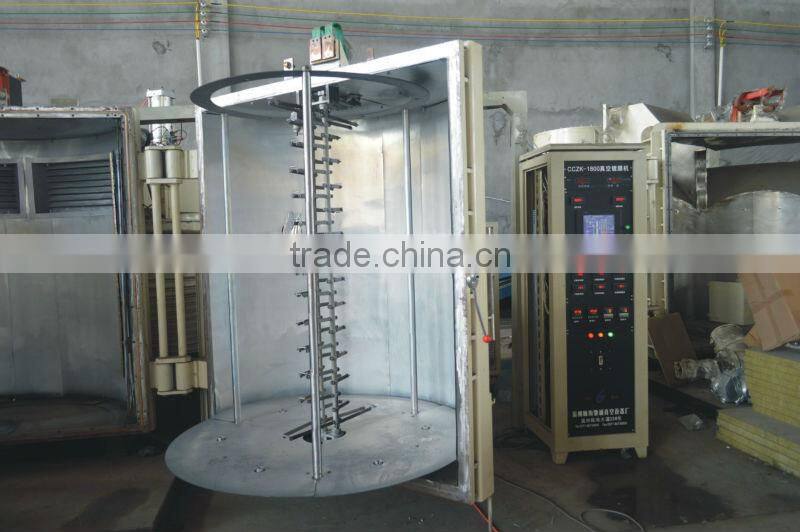

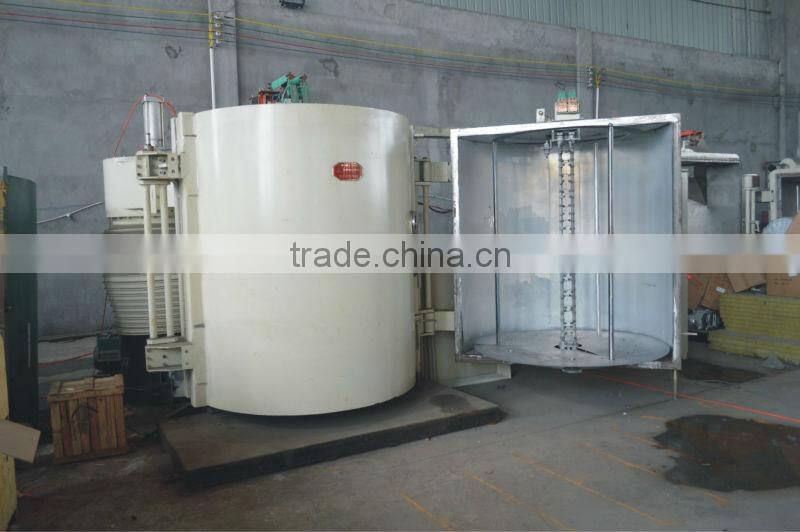

1) Inner Chamber size:Φ1800 x H2000mm,vertical with double door; equipped with an observation window;

2) Vacuum chamber with doors are Q235B(A3) carbon steel, the inner surface is polished; Chamber internal surface area can be greatly reduced, thus greatly improve the vacuum degree and vacuum purity; Outer surface through the passivation, sanding, painting treatment can improve the surface corrosion resistance and beauty.

3) Equip with 0.6mm stainless steel plate, can be removable and cleaned conveniently;

4) With removable stainless steel shutters;

5) Positioning equipment for opening door,1set;

6) Linging board(1set)

Vacuum chamber is equipped with 0.6mm SUS304 lining board,

Shield wall, pollution prevention, heat insulation, easy to clean, drawer-type faxed on the cavity wall;

7) Vacuum chamber cylinder equipped with vacuum leak detection interface;
