High Precision Pcb Wire To Board Connector
Product Description

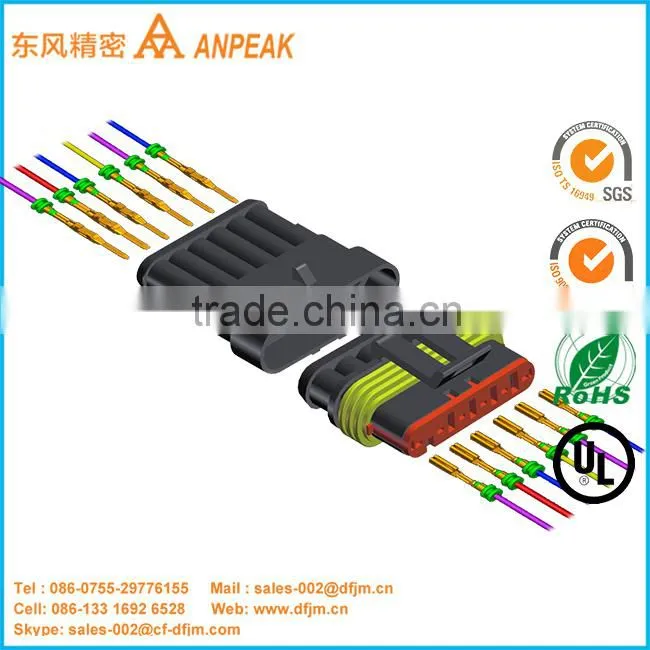

1. One-stop solution,including male connector, female connector, rubbers,terminals.

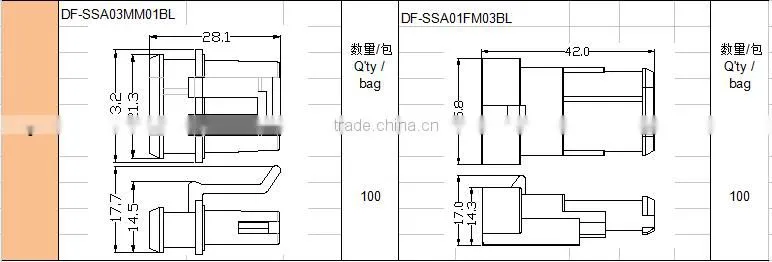

2. 3 pin 6.0mm pitch wire to wire waterproof automotive connector;
3. Housing to housing lock,high stability;

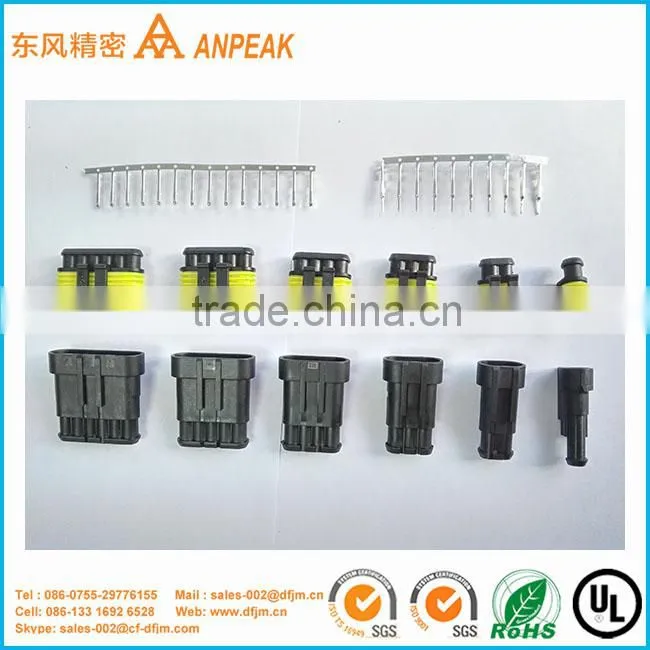

4. Provide 1pin - 6pin connectors used in automotive lamps and lanterns;

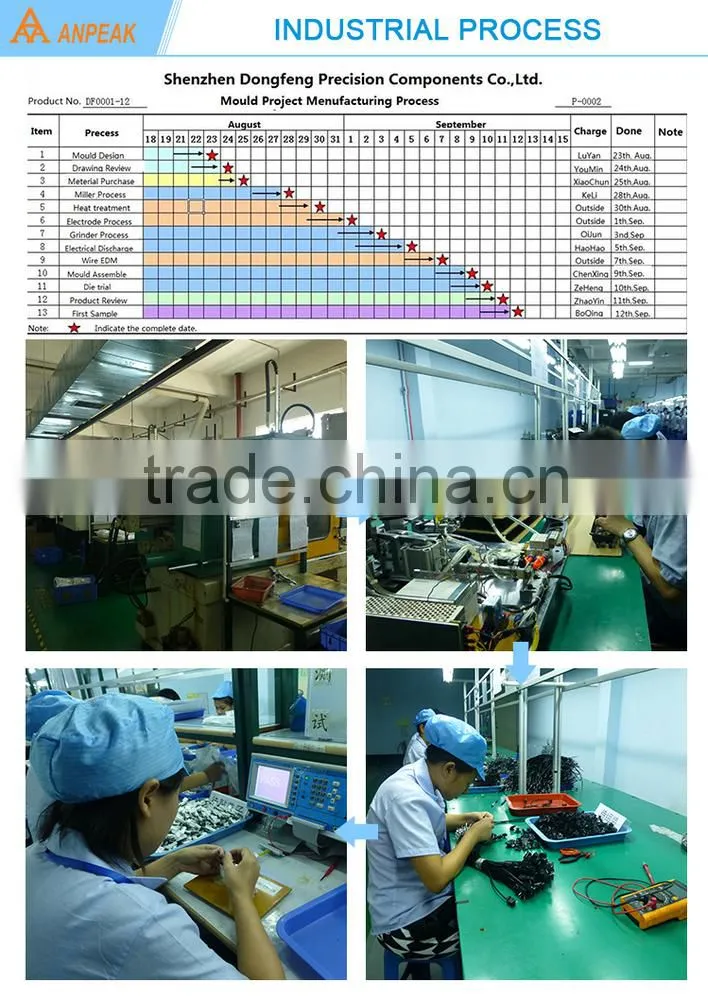

5. Produce in house,factory price with excellent quality
6. 100% testing befere shippment

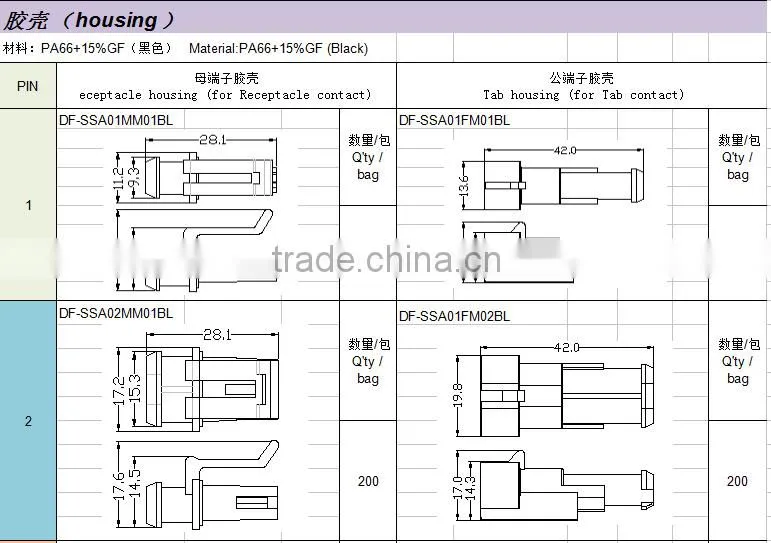

7. Plastic Material: PA66+20%GF;

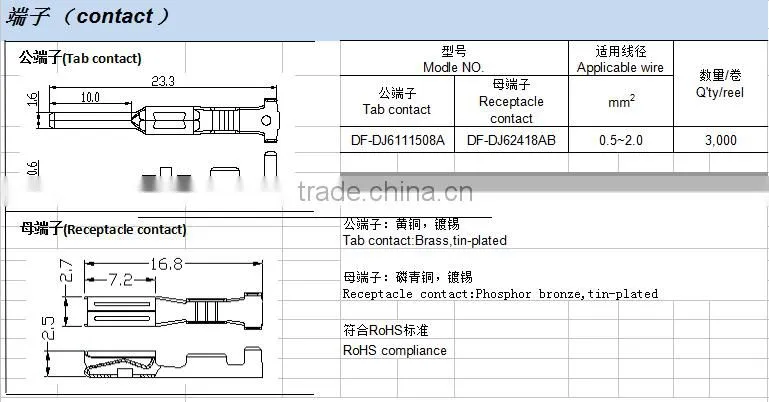

Terminal: Brass for female conn.,tin-plated; Phosphorous bronze for male conn.,tin-plated;
8. Color: black
9. Substitute material or replacement of TE,MOLEX,FCI and so on.

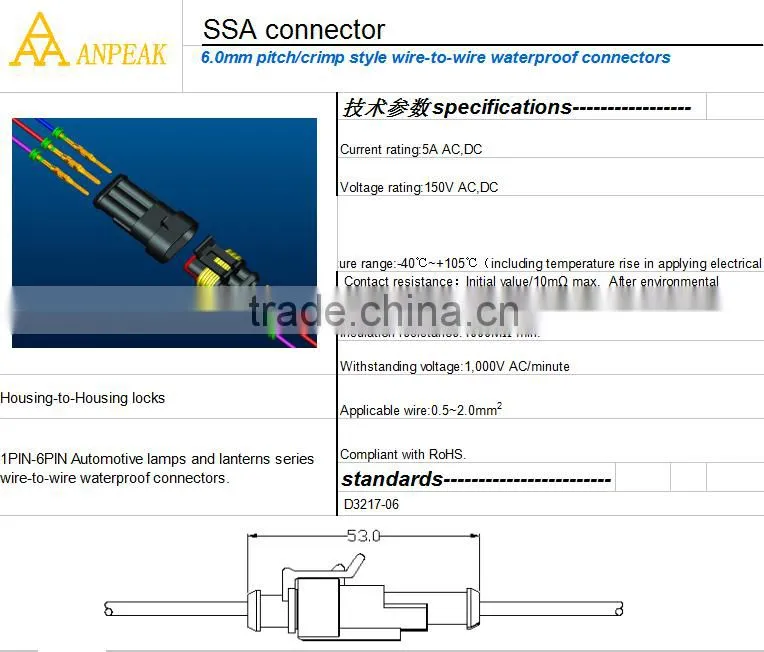

Technical specifications
1. Voltage Rating: 150V DC/AC
2. Current Rating: 5A
3. Temperature Rating: -40~105°C
4. Contact resistance: initial value:10m ohm Max; after environmental testing:20m ohm max
5. Insulation resistance: 1000 M ohm Min.
6. Withstanding voltage:1000V AC/Minute
7. Applicable wire:0.5-2.0mm2
8.Compliant with RoHS
9.Waterproof standards:IP68
Packaging and shipping
Inner packaging: Shaped plastic or customized
Outer packaging: Carton or customized
Shipping via Express
Our Service
Samples provide in 3 days, MP order delivery time in 2-4 weeks;
Your email will be replied within 24 hours;
Factory price,international standard quality, short delivery time, zero compliant.
Please contact us with your demand for plastic parts
Please send us your inquiry including: 2D drawing and 3D model of the requested part (save a single file, eg ZIP), material specification, the annual number of parts and other important information.
Demand will be sent to the contact person.
We will try to prepare our quotation as soon as possible.
Looking forward to serve you with our best quality and reasonable price.
Contact us now.
Sales manager: Sophia cell :+86-133 1692 6528 / TEL: +86-755-2977 6155
