Specifications
BMC products manhole cover 700mm1-Cover size:700mm(27")
2-Clear opening:660mm(26")/635mm(25")
3-Loading ability:A15,B125,C

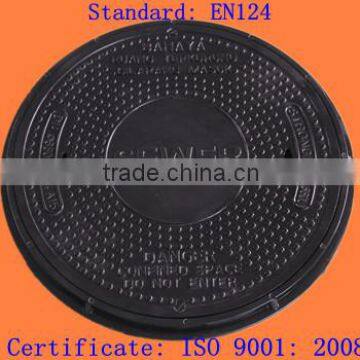

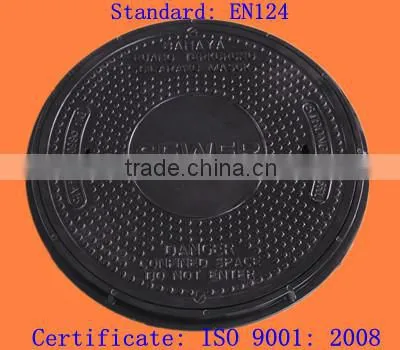

SMC manhole cover BS EN124 standard
Detailed Description
1.Advantages: Good compressive, bending and impact strength, anti-corrosion, not rust,
long service life (at least 30 years). The quality meets the same kinds cast ion manhole
covers but the cost is 30% lower than. Contain no metal and no recovery value, anti-theft.
2.Applications: water supply and drainage, fire engineering, natural gas, electricity and
telecommunications, street lamp and outdoor illuminations.
3.Designs: based on EN124 standard and according to customer's drawing or samples.
4.Color: black, Grey, green, blue and Marble , etc.
5.Inspection: in-house or the third party as per customer's request.
************************************************************************************************************

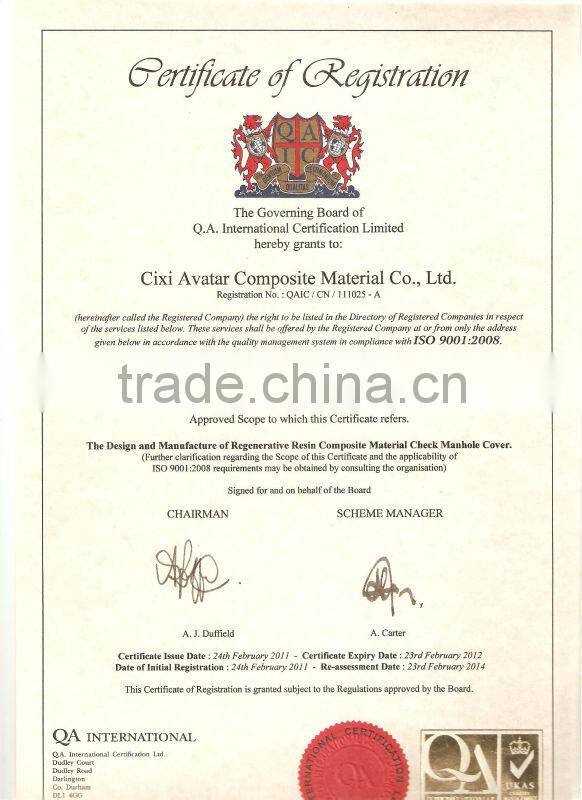

- ISO 9001:2008 CERTIFICATE
************************************************************************************************************
- TEST REPORT BE MADE BY OUR CLIENT
************************************************************************************************************

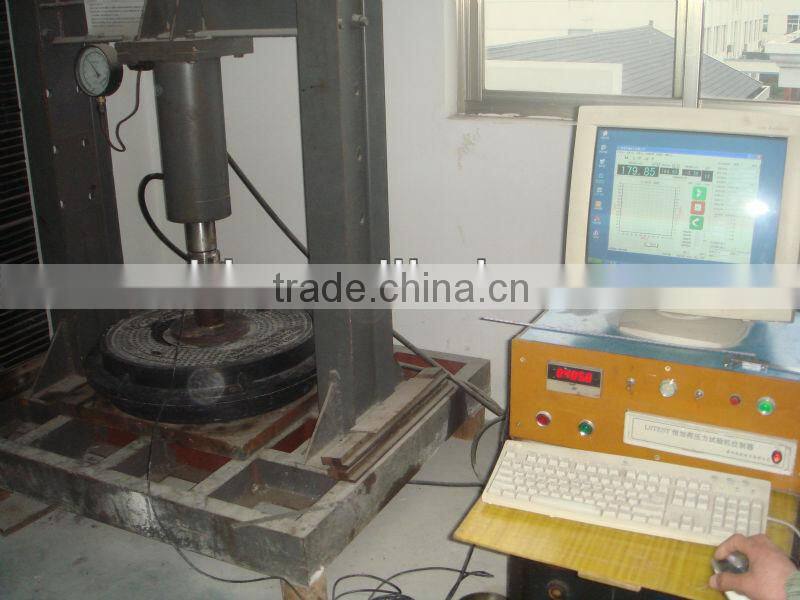

- TEST MACHINE
************************************************************************************************************

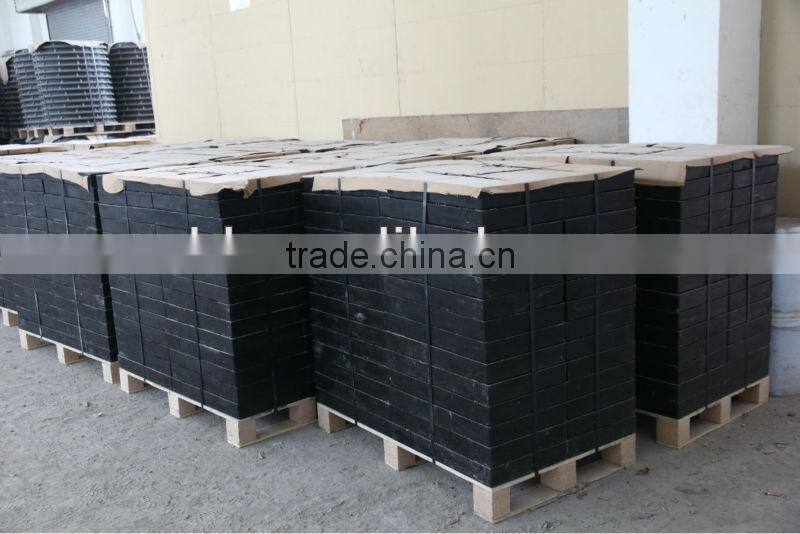

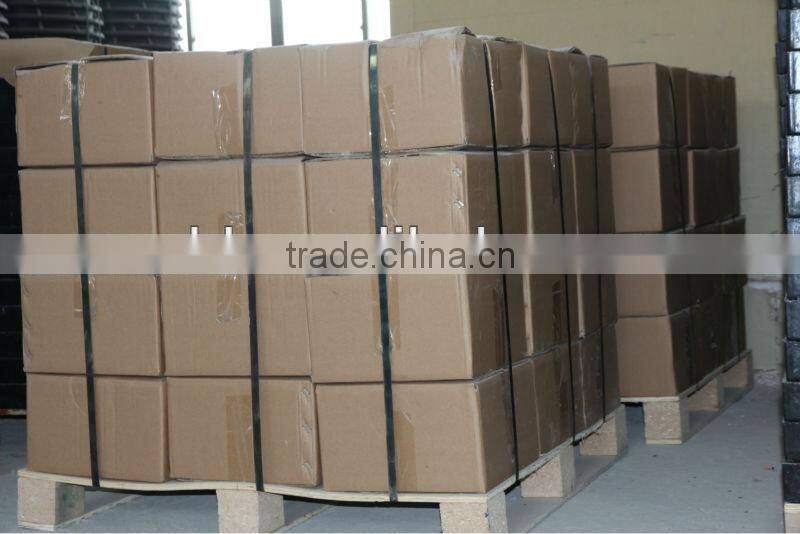

- Package by pallet
************************************************************************************************************
- Equipment
*************************************************************************************************************************************************
- Other Specifications
| Round cover and frame: |
|
|||||||
| Material | Φd(mm) | h(mm) | ΦD(mm) | ΦP(mm) | H(mm) | Loading | standard | weight(kg) |
| Cover Φ600 (Φ23″) Clear open DiaΦ560(Φ22″) | ||||||||
| SMC | 600 | 50 | 700 | 560 | 75 | D400 | EN124 | 39 |
| SMC | 600 | 50 | 700 | 560 | 75 | C250 | EN124 | 30 |
| SMC | 600 | 26 | 670 | 560 | 40 | B125 | EN124 | 18 |
| SMC | 600 | 26 | 670 | 560 | 40 | A15 | EN124 | 9.5 |
| Cover Φ500 (Φ20″) Clear open Dia Φ458 (Φ18″) | ||||||||
| SMC | 500 | 55 | 580 | 455 | 75 | D400 | EN124 | 28 |
| SMC | 500 | 30 | 580 | 455 | 55 | C250 | EN124 | 20 |
| SMC | 500 | 30 | 580 | 455 | 50 | B125 | EN124 | 16 |
| SMC | 500 | 30 | 580 | 455 | 50 | A15 | EN124 | 10 |
| Cover Φ650 (Φ25″) Clear open Dia Φ600 (Φ24″) | ||||||||
| SMC | 650 | 60 | 800 | 600 | 80 | D400 | EN124 | 53 |
| SMC | 650 | 40 | 800 | 600 | 60 | C250 | EN124 | 35 |
| SMC | 650 | 26 | 800 | 600 | 40 | B125 | EN124 | 23 |
| SMC | 650 | 26 | 800 | 600 | 40 | A15 | EN124 | 12.5 |
| Notes: These are only parts of our products,any sizes could be made according to customers' requirements. |
