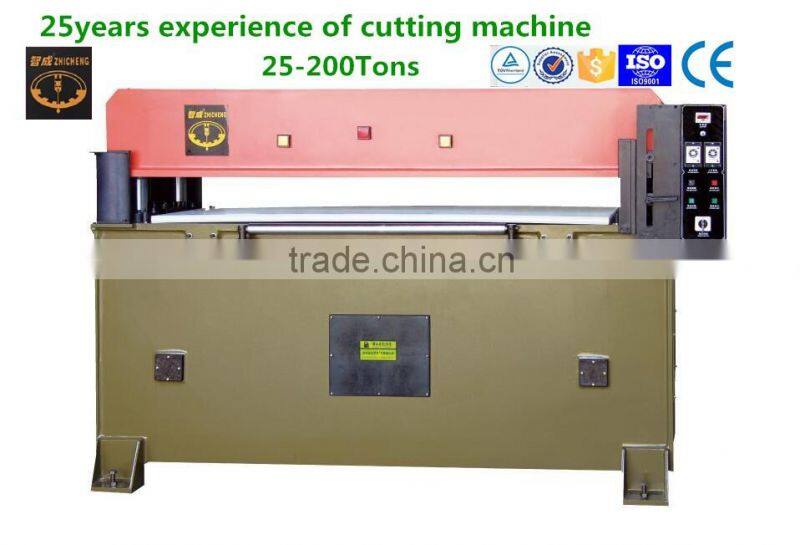

Help Center2016 Multi-layer Hydraulic Wedding Dress Fabric Cutting Press
Related Products
-
Zhicheng 606-30T Hydraulic Leather Shoe Sole Die Cutting Press MachineUS$ 5000.00 - 5000.00MOQ: 1 Set -
Zhicheng 606-40T Pricision Hydraulic Four Column Plane Cutting MachineUS$ 4500.00 - 5000.00MOQ: 1 Set
-
Zhicheng 606-50T Hydraulic Four Column Plane Cutting Machine (manufacturer)US$ 5000.00 - 5000.00MOQ: 1 Set
-
Zhicheng 606-30T Supply CNC EPE Foam Sheet Die Cutting Press Fabric Swatch Cutters MachineUS$ 5000.00 - 5000.00MOQ: 1 Set
-
Zhicheng 607-35T Manual Leather Fabric PVC Cutting MachineUS$ 5000.00 - 5000.00MOQ: 1 Set
ZC-509-40T die cutting machine for making shoe cover
Company Detail
Our company is professional on manufacturing shoemaking machinery with 25 years history, located in the world's footwear production in manufacturing city base-- yancheng, Jiangsu, with the integration of R&D, manufacturing and sales, also own the modern management , have the continue developing and innovation in shoe making machinery and rubber, EVA sole making machinery.
Our company has a complete rubber making machinery. moreover, our machine sold to 60 countries in the world. Perfect after-sales service and high quality machine could be offered by our factory.
Machine Description
What Specification of our cutting press?
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1,The doubie oil cylinder and precise four-column automatic balancing mechanism can make the cutting depth withimn the cutting area even.
2,With stable pressure,there will be no occurrence of cutting failure or edge burr.
3,It can accurately align with the cutting board to prevent the plastic cutting board from sticking onto finished products.
4,The tow-section trpe cutting can solve the radian problem met during the cutting of pearl cotton,spong and other materials of multiple layers.
Mainly used for die cutting leather and leather
products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.
25 years experience of cutting press machine
1. Technical Parameters
die cutting machine for making shoe cover
| Model |
Cutting Force |
Dimension (L*W*H) |
Cutting Area |
Motor Power
|
Stroke | Net weight |
|
ZC-509-30T |
30Tons | 1780x1000x1350mm | 1250x500mm | 3HP | 50~180mm | 1400kg |
| ZC-509-30T | 30Tons | 2050x1000x1350mm | 1470x500mm | 3HP | 50~180mm | 1500kg |
| ZC-509-30T | 30Tons | 2180x1000x1350mm | 1600x500mm |
3HP | 50~180mm | 1700kg |
| ZC-509-40T | 40Tons | 1830x1200x1420mm | 1250x610,710mm | 5HP | 50~180mm | 1700,1800kg |
| ZC-509-40T | 40Tons | 2100x1200x1420mm | 1470x610,710mm | 5HP | 50~180mm | 1800,2000kg |
| ZC-509-40T | 40Tons | 2230x1200x1420mm | 1600x610,710mm | 5HP | 50~180mm | 2000,2200kg |
|
ZC-509-50T |
50Tons | 1880x1300x1520mm | 1250x800mm | 8HP | 50~240mm | 2500kg |
| ZC-509-50T | 50Tons | 2150x1300x1520mm | 1470x800mm | 8HP | 50~240mm | 2800kg |
| ZC-509-60T | 60Tons | 2280x1300x1520mm | 1600x800mm | 8HP | 50~240mm | 3000kg |
2.Customer use of the site

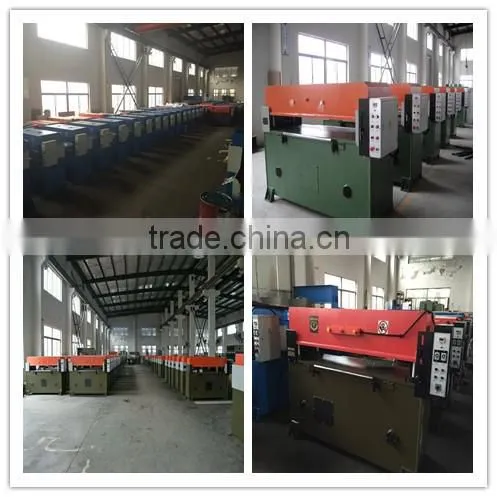

Mass Produced products
