B70 series spider fitting, architectural glass curtain wall
- 2000 Set / Sets per Month
- ningbo/shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Kinmade | Model Number: | B70 |
Material: | Steel |
Product Description
Specifications
Spider series is one of excellect product1.Material: 304 or 316 stainless steel
2. Finish: Mirror or Satin
3.Modern style
Specifications

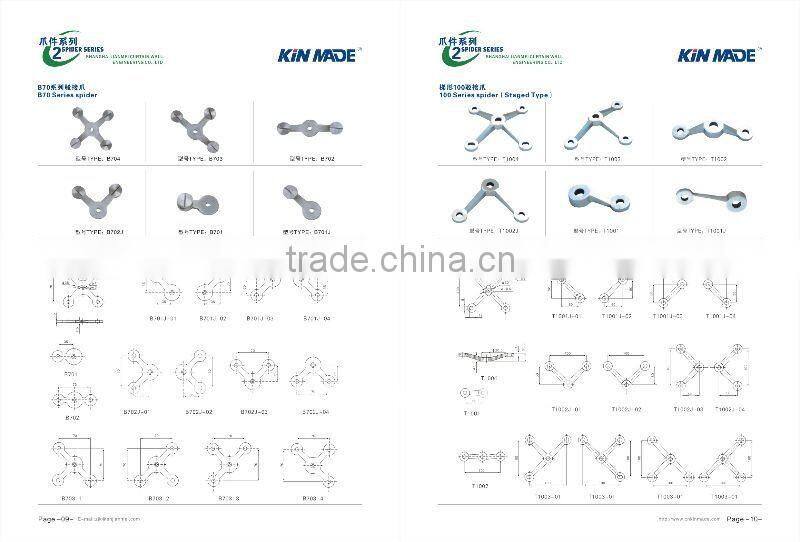

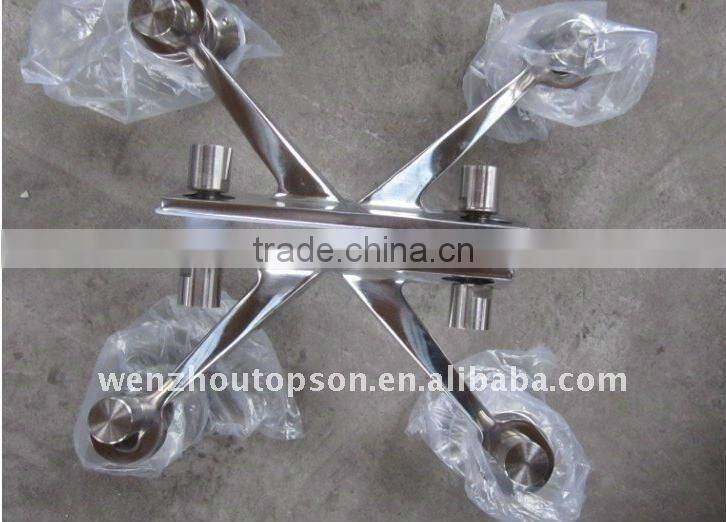

70mm glass spider fitting(glass point fixing)
1) Process: Made from lost wax casting method
2) Material: Stainless steel AISI 316 or AISI 304
3) Surface: Satin(burshed) or mirror (polished)
4) Dimension: Glass hole to hole distance of 70mm
5) N.W.: 1.50kg of 4 arms
0.60kg of 1 arm (90 degree)
2. Installation:
1) Load data: Single arm design value tested under static and dynamic loadings:
Axial load capability(N)---- 2500 N
Radial load capability(N)---- 1400 N
2) Assembly: Suits 1/2/3/4 pcs glass panels; Mounted with 1/2/3/4 pcs T02 routels and 1 pcs Z01 connector in general.

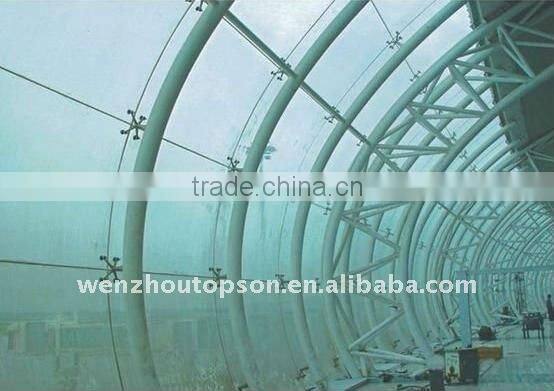

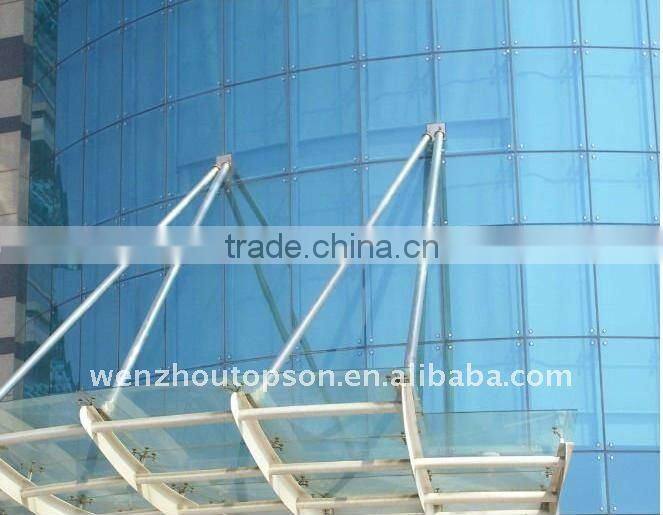

3) Application: Used for Structural Glass Systems such as frameless glass walls, conservatories and canopies.
Shanghai Kinmade, is such a factory that is specialized in the design, manufacturing and installation of Glass Hardware,Glass Sliding Door Fittings,Glass Swing Door Fittings,Glass Connector,Glass Clip,Glass Clamp,Single Point Fixing,Glass Canopy Fittings,Glass Handrail,Spigot,Shower Hinge,Patch Fitting,Glass Door Handle,Handle Lock,Glass Spider and so on. In addition, we also design and manufacture associated hardware and handle options.Some of our frameless glass fittings and our products are made according to the requirements of different customers, the options available are unlimited.
So welcome to Kinmade HARDWARE, we assure that the sincerely service and products with good quality will comfort and satisfy you.
