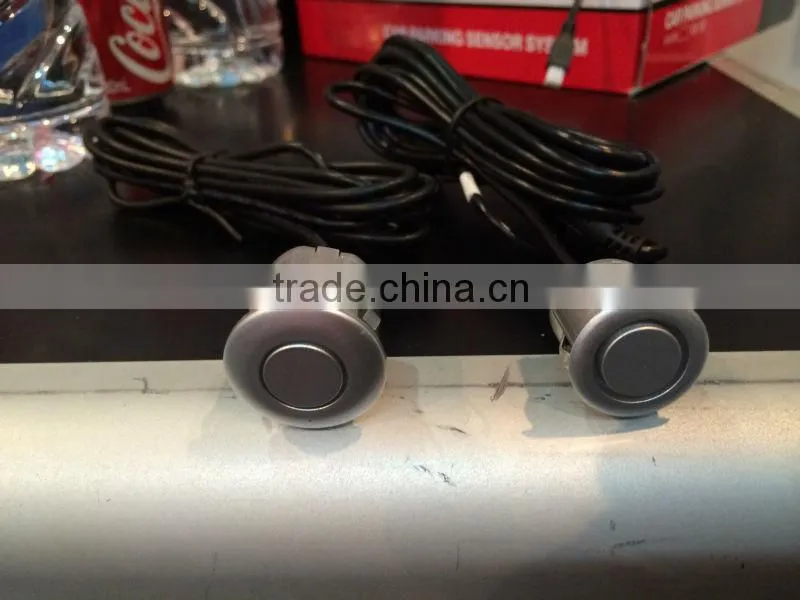

Car Reversing Sensors With LED Distance Display and Buzzer or Human Voice Reversing Sensors

Car Reversing Sensors With LED Distance Display and Buzzer or Human Voice Reversing Sensors thumbnail-1
Car Reversing Sensors With LED Distance Display and Buzzer or Human Voice Reversing Sensors photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Parking Sensor System
Voltage:
DC 12V
Power:
pmax<5w
Contact Supplier Request Quote Chat Now
Shenzhen Xinzhenghong Plastic Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Parking Sensor System
Voltage DC 12V
Power pmax<5w
Car Make all type
Place of Origin Guangdong, China
Brand Name neutral
Model Number led display parking sensor
Warranty 24 Months

Specifications

1.high definition LED digital dispaly
2.bibibi or voice is optional
3.dual-CPU, rapid response
4.2 years warranty

 Car Parking Sensor System with LED Distance Display and buzzer or human voice reverse sensors



Product feature descriptions:

  • When hanging in reverse gear, the system automatically enters the reconnaissance work State
  • 30CM~250CM, cm-level display precision, precisely display distance  obstructions
  • 7-segment LED  lights show obstacle distance
  • Left.. right obstacle position azimuth direction
  • Dual CPU responded quickly. Probe self test function, abnormal status of probe tips to avoid probe damage as a result of back collision
  • high quality LED digital display, easy installation
  • Bi.bi.bi or voice is optional,with or without switch.



Product technical parameters:

  • Rated working voltage: 12V DC (9.6~16V DC voltage);
  • Operating current : 20~180mA;
  • Detection range: 30CM~250CM
  • Display range: 30CM~250CM (centimeter-level display accuracy);
  • Volume de alarm: ≥ 80dB;
  • Working temperature: -40~+80℃;
  • Ultrasonic frequency: 40kHz±1kHz

Product configuration :

  • Controller host:  1 PC;
  • BIBI speaker: 1 PC (standard line long 5M);
  • Ultrasonic sensor:  4 PC (standard line long 2.5M);
  • Power cord:  1 PC (standard line long 0.8M);
  • Drill:  1 PC (standard diameter ¢ 22mm);
  • Product manual:  1 PC (neutral specifications manual in Chinese and English);

Products of conventional packaging:

  • Neutral box packaging; Quantity: 20 PCs/carton; Net weight: 10kg; Gross weight: 11kg; Carton dimensions: 54x32x45CM.



Quality commitment:

  •  quality granted  within two years, the company promises users free replacement , freight paid by the users themselves.

or for the customer original equipment manufacture (OEM) are available.
