Professional Maker Accelerator Speed Pedal Automotive Connector
US$ 0.2 - 0.7
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DFJM
Model Number:
DF-PC005-1, DF-PC005-1
Payment & Shipping
Payment Methods:
Port of Shipment:
shekou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM/ODM Factory Direct Automotive Connector TerminalUS$ 0.2 - 0.7MOQ: 100 Pieces -
Professional Designer For Nissans Accelerator Speed Pedal Automotive ConnectorUS$ 0.2 - 0.7MOQ: 100 Pieces
-
Automotive Sell Online For Mazda Automotive ConnectorUS$ 0.2 - 0.7MOQ: 100 Pieces
-
Professional Manufacturer Automotive Wiring HarnessUS$ 0.2 - 0.7MOQ: 100 Pieces
-
Website Selling Automotive Wire ConnectorUS$ 0.2 - 0.7MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
DFJM
Model Number
DF-PC005-1, DF-PC005-1
Type
Other, PCB Board automotive connectors, PCB Board automotive connectors
Application
Other, Automotive, automotive
Gender
Other, Male connector & Female connectors, Male and Female connectors
Professional Maker Accelerator Speed Pedal Automotive Connector
| 2.Technical spec. | |||||||||
| A. Voltage Rating: 24 V DC | |||||||||
| B. Current Rating : 3A. | |||||||||
| C. Temperature Rating: -40~120℃ | |||||||||
| D.Contact resistance: 10 mΩ Max. (Single terminal) | |||||||||
| E.Insulation resistance: 100 MΩ Min. 500V DC. | |||||||||
| F.Withstanding voltage:500V AC/minute | |||||||||
| G. Applicable wire:0.2~0.5mm2 |
|||||||||
| H.Compliant with RoHS. | |||||||||
| 3. Commercial Standards and Specifications: | |||||||||
| A. JASO D605 Multi-pole Connector for Automobiles. | |||||||||
| B. JIS C3406 Low Voltage Wires and Cables for Automobiles. | |||||||||
| C. JIS D0203 Method of Moisture, Rain and Spray Test for Automobile Parts. | |||||||||
| D. JIS D0204 Method of High and Low Temperature Test for Automobile Parts. | |||||||||
| E. JIS D1601 Vibration Testing Method for Automobile Parts. | |||||||||
| 4. Materials: | |||||||||
| Description | Material | Finish | |||||||
| Housing | PBT | N/A | |||||||
| Terminal | Brass | Tin Plating | |||||||
| 5. Performance Requirements: | |||||||||
| A.Terminal and housing between the retention force: 30N Min. | |||||||||
| B.Contact resistance: 10 mΩ Max. (Single terminal) | |||||||||
| C.Insulation resistance: 100 MΩ Min. 500V DC. | |||||||||
| D.Connector Mating Force: 70N Max. Operation Speed : 100mm/min. | |||||||||
| E.Connector Unmating Force: 50N Min. Operation Speed : 100mm/min. | |||||||||
| F.Wave-soldering temperature: 250℃~270℃. (manual soldering temperature: 340℃~390℃.) | |||||||||

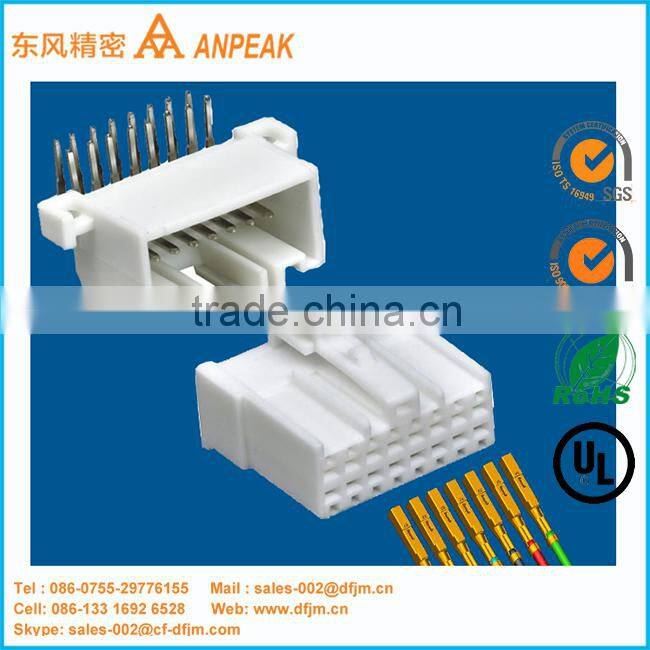

| P/N. | NAME | Description | |||||||

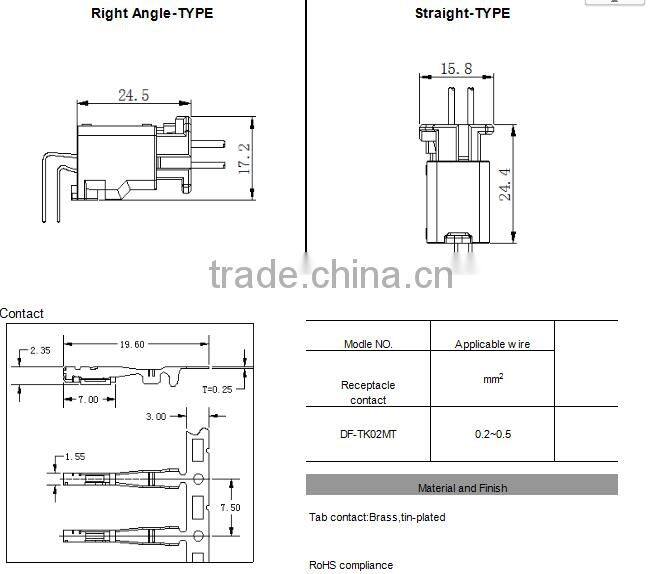

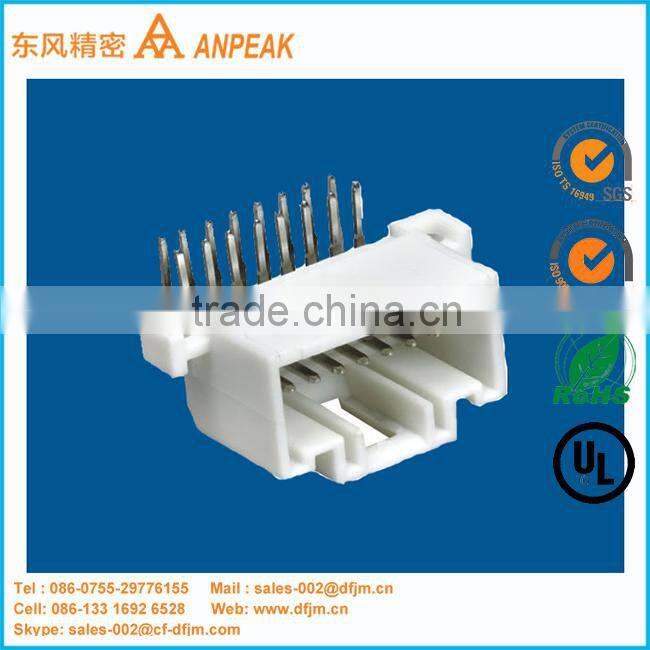

| DF0001-06 | DF-WZ24WM01B.01 | 24Pos H-TYPE Receptacle, Mounting Screw:M2.5 | |||||||
| DF0001-07 | DF-ZZ24WM01B | 24Pos V-TYPE Receptacle, Mounting Screw:M2.5 | |||||||

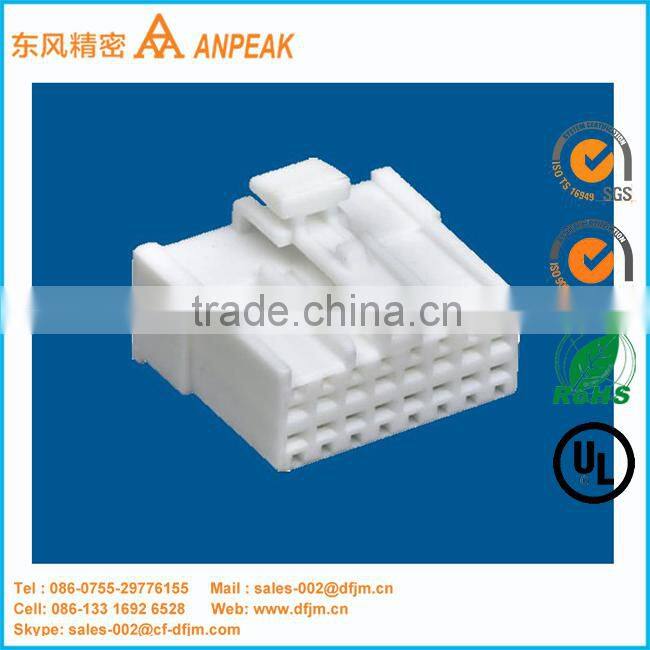

| H11000043 | DF-TKA24MW02WH | 24Pos Plug Housing | |||||||
| DF0001-273 | DF-WZ16WM01B.01 | 16Pos H-TYPE Receptacle, Mounting Screw:M2.5 | |||||||
| DF0001-05 | DF-ZZ16WM01B | 16Pos V-TYPE Receptacle, Mounting Screw:M2.5 | |||||||
| H11000077 | DF-TKA16MW02WH | 16Pos Plug Housing | |||||||
| T11000034 | DF-TK02MT | Plug Terminal | |||||||
We can provide you all kinds of automotive connectors, wire to wire connectors,wire to board connectors, LVDS connectors, USB connectors, waterproof connectors, cable connectors, and so on..
