zhicheng 607-35T travel head cutting press machine
Company Detail
Our company is professional on manufacturing shoemaking machinery with 25 years history, located in the world's footwear production in manufacturing city base-- yancheng, Jiangsu, with the integration of R&D, manufacturing and sales, also own the modern management , have the continue developing and innovation in shoe making machinery and rubber, EVA sole making machinery.
Our company has a complete rubber making machinery. moreover, our machine sold to 55 countries in the world. Perfect after-sales service and high quality machine could be offered by our factory.
Machine Description
What Specification of our cutting press?
This machine is used widely in making products like plastics,fabrics,foam ,leather cutting ,gloves,mask,bags,bliest ect
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
3. The cutting head can automatically move horizontally,with excellent operating visual field and safe and reliable operation.
4.The hydraulic system specially designed is featured by low noise and low oil consumption.
5.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
6.The movement of cutting head is controlled bu automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
7. Differential oil way is adopted to allow rapid and convenient cutting.
8. Products of special specifications can be customized.(Cutting force, Cutting head size,worktable size,automatic feeding device etc.)
Mainly used for die cutting leather and leather
products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.
25 years experience of cutting press machine
1. Technical Parameters
zhicheng 607-35T travel head cutting press machine
| Model |
Cutting Force |
Dimension (L*W*H) |
Cutting Area |
Cutting head |
Motor Power
|
Stroke | Net weight |
|
ZC-607-25T |
25Tons | 2200x720x2000mm | 1600x500mm | 500*500mm | 2.2kw | 5~150mm | 1600kg |
| ZC-607-25TA | 25Tons | 2400x720x2000mm | 1800x500mm | 500*500mm | 2.2kw | 5~150mm | 2100kg |
| ZC-607-35T | 35Tons | 2200x1470x1250mm | ( 1600-2200)x500mm |
500*500mm | 4.5kw | 30~160mm | 3000kg |
| ZC-607-40T | 50Tons | 2200x720x2000mm | 1600x500mm | 550*550mm | 4.5kw | 30~160mm | 3000kg |
| ZC-607-50T | 60Tons | 2200x1600x1550mm | 1600x700mm | 550*550mm | 7.5kw | 30~160mm | 8300kg |
| ZC-607-100T | 100Tons | 2200x2050x1600mm | 1600x800mm | 550*550mm | 15HP | 30~160mm | 10050kg |
2.Customer use of the site
2. Features and Advantages
Features and Advantages( travel head cutting press machine ) |
1. The precis lower limit positioning mechanism can realize full or semi cutting at the same time. |
2. The independent touch screen operation interface makes it convenient ti set various parameters and stores various prese progrms. |
3. The servo motor is adopted to drive the feeding,and feeding length can be precisely set. |
4. PET rolled materials conveying device,rolled materials width limiting device,finished products collection device. |
5. Safety light grid electric eye conform to CE safety standard. |
|
|
Mass Produced products
We can according to your material,requirements,design the machine and mould for you.
3.Application:
The hydraulic cutting press machine is suitable to die cut Footwear factory, shoe materials factory, bag factory , leather goods factory, rubber conveyor belt, PVC conveyor belt, EVA foaming, PVC foaming, rubber products, beach shoe forming, vamps, sport shoe, and so on

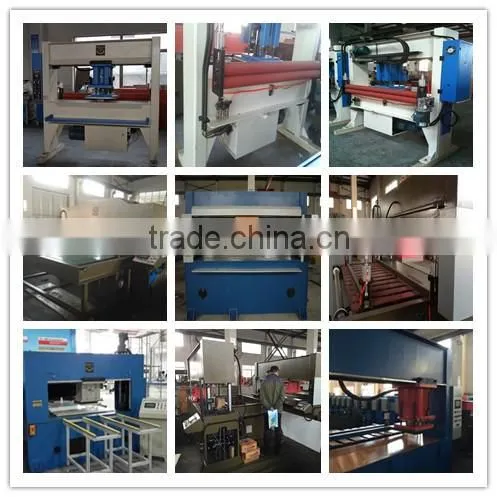

4.the cutting machine Workshop Show
5. Our Certifications
1. We are a factory,and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales service for 1.5 years.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 60 countries.
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
6.Trade shows
Note: we can produce different types, tons and cutting area of machine according to your demand.
Why choose us?
Check below for more information on placing an order
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. zhicheng sales send the Proforma Invoice. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and zhicheng Ship the goods. Inform the tracking number and check the status for clients. |
9. Order can be say “finish” when you receive the goods and satisfy with them . |
10. Feedback to Freedom about Quality , Service, Market Feedback & Suggestion. And we can do better . |
Guarantee and after-sale service
* One year guarantee.
* 24 hours technical support by e-mail.
* Calling or door-to-door service. Seller can send the engineer to buyer’s factory, but Buyer shall pay the round-trip air fare and accommodation
* Offer user manual and videos.
