Good Quality PCB-Mounted Diagnostic Cable Connector
16pin OBD2 pcb mount right angle automotive connector for diagnostic unit
Product Description
| 1. Scope: | |||||||||
| OBD diagnostic unit |
| 2. Commercial Standards and Specifications: | |||||||||
| A. JASO D605 Multi-pole Connector for Automobiles. | |||||||||
| B. JIS C3406 Low Voltage Wires and Cables for Automobiles. | |||||||||
| C. JIS D0203 Method of Moisture, Rain and Spray Test for Automobile Parts. | |||||||||
| D. JIS D0204 Method of High and Low Temperature Test for Automobile Parts. | |||||||||
| E. JIS D1601 Vibration Testing Method for Automobile Parts. |
| 3. Materials: | |||||||||
| Description | Material | Finish | |||||||
| Housing | PA66 + GF15% | N/A | |||||||
| Terminal | Brass | Gold/Nickel Plating | |||||||
| 4. Ratings: | |||||||||
| A. Voltage Rating: 30 V MAX | |||||||||
| B. Current Rating : 5A. | |||||||||
| C. Temperature Rating : -40~85℃ | |||||||||
| 5. Performance Requirements : | |||||||||
| A.Terminal and housing between the retention force: 30N Min. | |||||||||
| B.Contact resistance: 10 mΩ Max. (Single terminal) | |||||||||
| C.Insulation resistance: 100 MΩ Min. 500V DC. | |||||||||
| D.Connector Mating Force: 70N Max. Operation Speed : 100mm/min. | |||||||||
| E.Connector Unmating Force: 50N Min. Operation Speed : 100mm/min. | |||||||||
| F.Wave-soldering temperature: 250℃~270℃. (manual soldering temperature: 340℃~390℃.) |
| 6.Product Listings: | |||||||||
| P/N. | Description | N.W./PCS | G.W./CTN | ||||||

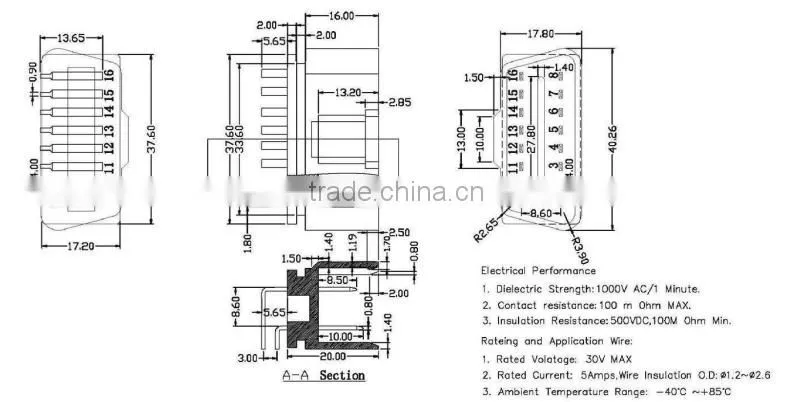

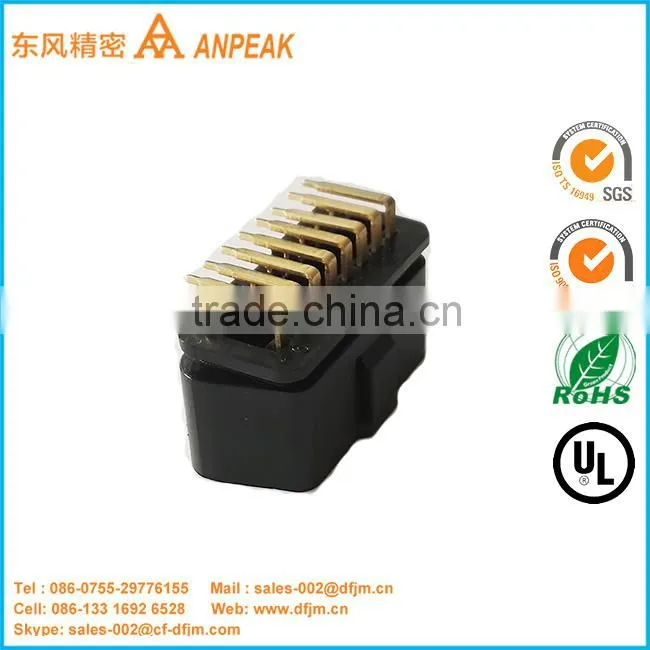

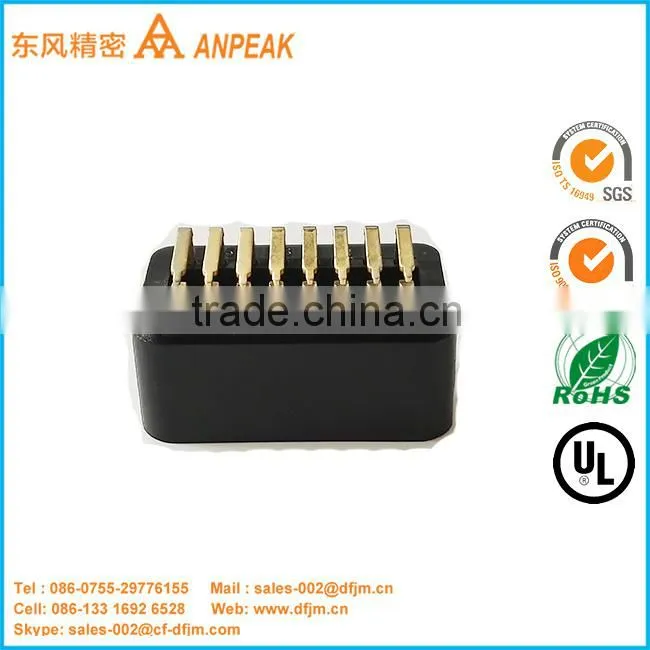

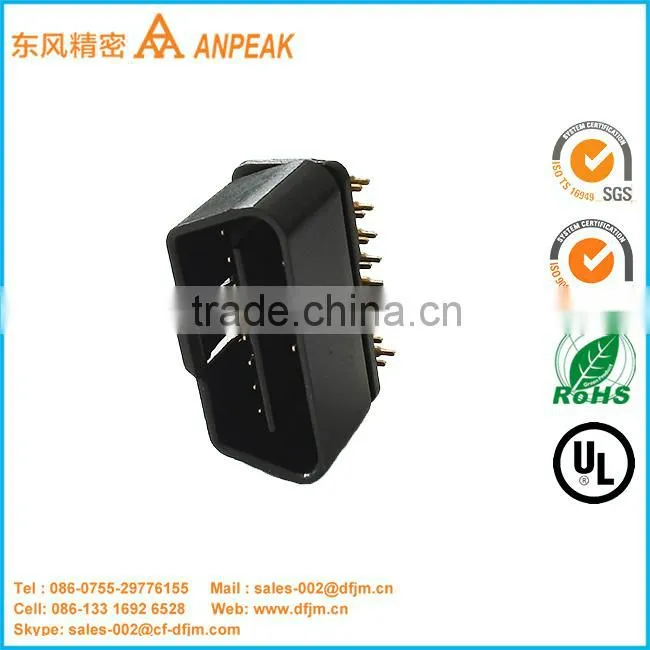

| DF0001-702 | 16pin straight OBD2 male connector | 9.8g | 8.35 KG | ||||||

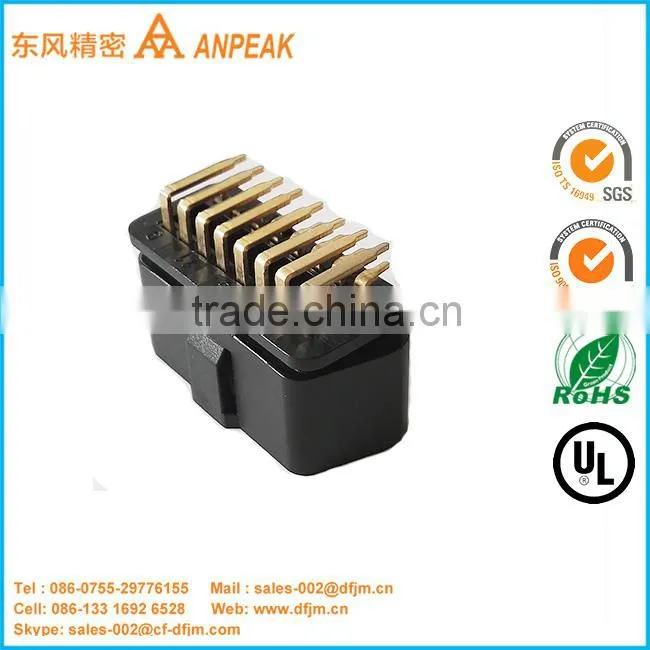

| DF0001-601 | 16pin right angle OBD2 male connector | 10.7g | 8.89 KG | ||||||
| DF0001-703 | 16pin mated female housing | 8.0g | 6.3KG | ||||||
| DF0001-905 | 16pin straight obd2 male connector | 11.2g | 8.22KG | ||||||
OBD2 16pin Connector
We are manufacturing all kinds of obd adapter, obd connector, obdii adapter ,obdii connector.
All items are high quality, and price cheap, delivery in time to all the world.
We have many kinds for obd connectors ,for example,
BMW 20 PINS cable, BENZ 38 Pins, Nissan 14 pins, Nissan 14PINS+OBD2 16PINS, OBD II, OBD2 CONNECTOR, HONDA 3 PINS, TOYOTA 16 PINS, TOYOTA 17 PINS, HAINAN MAZDA 17+2PINS, CHRYSLER 6PINS, KIA 20 PINS, MITSUBISHI 12PINS, MITSUBISHI 12+16PINS, GM 12PINS, MINI CAR 3PINS, MINICAR 4PIN, FIAT 3PINS, OBD II ASSEMBLE TYPE, OBD 2 MALE, HONDA 3PIN ASSEMBLE TYPE, HONDA 3PINS MALE, ETC.
We can provide you all kinds of automotive connectors, wire to wire connectors,wire to board connectors, LVDS connectors, USB connectors, waterproof connectors, cable connectors, and so on..
