f type automotive connector pcb mount

Inner packaging: Shaped Plastic
Outer packaging: Carton

f type automotive connector pcb mount

Product Description

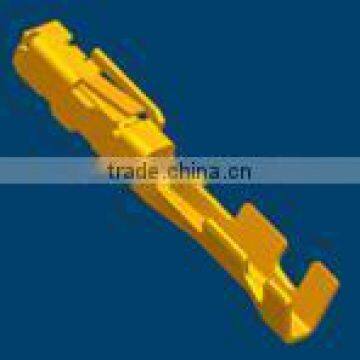

1. One-stop solution,including male connector, female connector, terminals.

2. 2.2mm pitch 8pin PCB automotive connector

3. Wire to board connector

4. Produce in house,resonable price with excellent quality

5. 100% testing befere shippment

6. Plastic Material: PA66/PBT; Terminal: Brass,tin-plated

7. Color: White or Gray

8. Substitute material

9. OEM/ODM orders are welcome, we can make precision plastic injection molds for you.

    We have our own mold for this one, delivery time in 7 business day.

10. We also can provide you from 8pin-40pin.

Technical specifications

1. Voltage Rating: 12 V DC/AC

2. Current Rating: 3A AC/DC

3. Temperature Rating: -40~120°C

4.Contact resistance: 10 m ohm Max (single terminal)

5.Insulation resistance: 100 M ohm Min. 500V DC.

6.Withstanding voltage:500V AC/Minute

7.Applicable wire:0.2-0.5mm²

8. Mounting method: Horizontal

9.Compliant with RoHS

10. Testing standards:

    JASO D605 Multi-pole Connector for Automobiles;

    JIS C3406 Low Voltage Wires and Cables for Automobiles;

    JIS D0203 Method of Moisture, Rain and Spray Test for Automobile Parts.

    JIS D0204 Method of High and Low Temperature Test for Automobile Parts

    JIS D1601 Vibration Testing Method for Automobile Parts.

Packaging and shipping

Inner packaging: Shaped plastic or customized

Outer packaging: Carton or customized

Shipping via Express

Our Service

Samples provide in 3 days, MP order delivery time in 2-4 weeks;

Your email will be replied within 24 hours;

Factory price,international standard quality, short delivery time, zero compliant.

Contact us now

sales manager: Sophia Cell: +86-133 1692 6528 or Tel:+86-755-2977 6155

Certificate

 Our Team

                      R&D team                                                                             Sales Team

We have R&D engineers ready to discuss how best to meet your exact OEM specifications, excellent sales team to ensure good comunications

In-house molding,tooling, production,assembly and packing.

Our Material

We use ChangChun PBT from Taiwan, Dupont PA66 from America, Ascend PA66 from

America, and Jinfa PBT & PA66 from China.

Some of Our testing machines

       Thermal shock testing machine             Aging testing machine

                  Solt Spray tester                                Cable plug tester

We do inspection during the manufacturing process and before packaging

to ensure high product quality.
