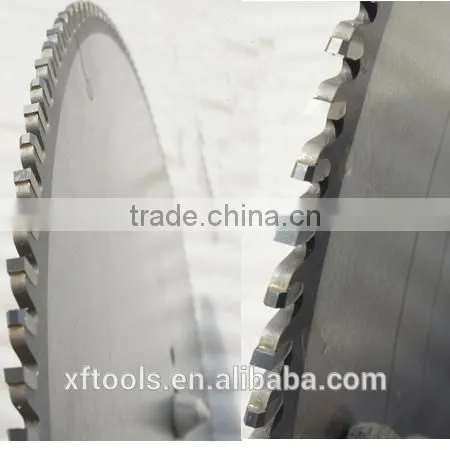

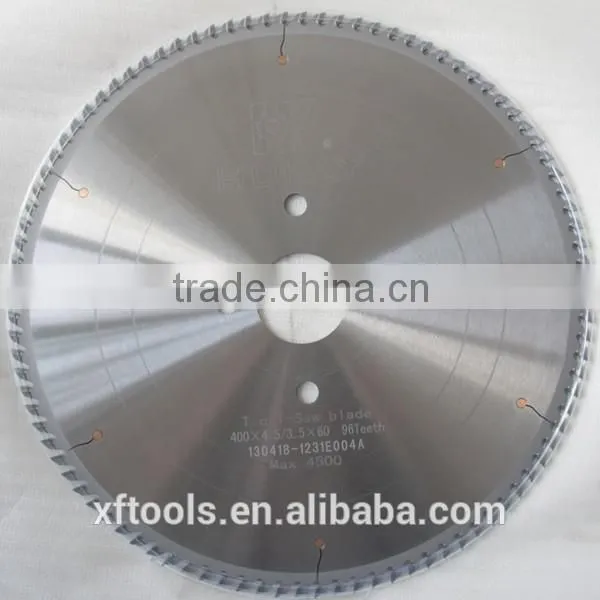

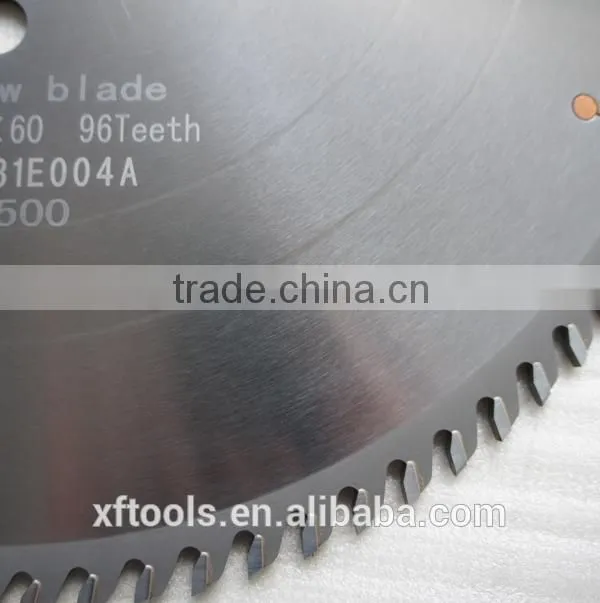

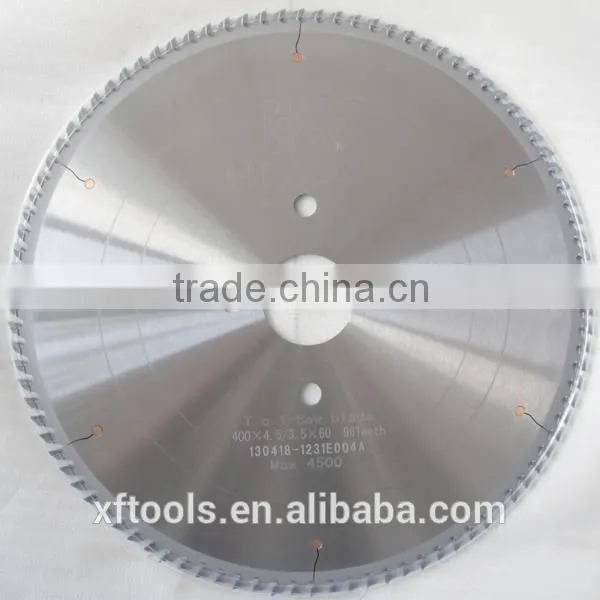

TCT panel sizing circular saw blade for MDF, chipboard and laminates
Brand: Hukay
Tct circular saw blade material
1. Tungsten Carbide tip from Ceratizit, Luxemburg.
2. Saw body: High quality steel plate 75cr1.
Application:
1. For cutting laminated chipboard, MDF, multi-board with the thickness of less then 35mm.
2. Use machine: panel saw, vertical panel saw

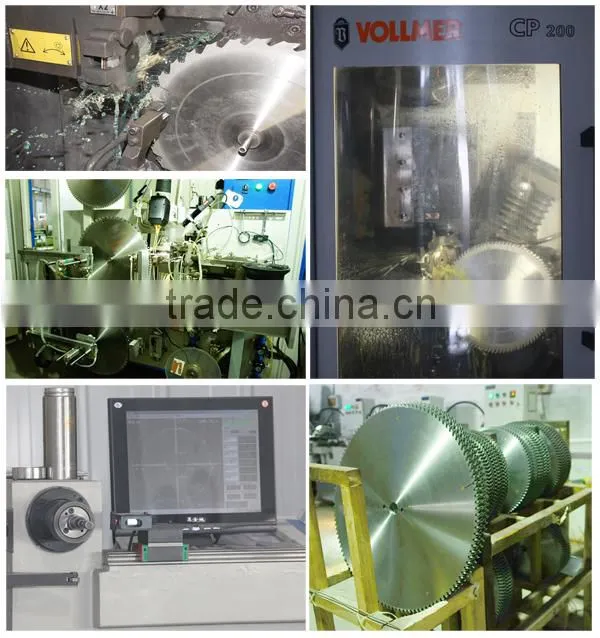

Production line:
German Vollmer CNC grinder
Advantages:

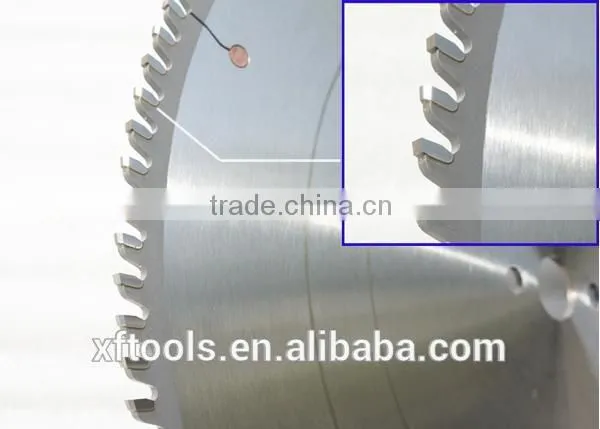

1. We have our own special treatment on face make it smooth and bright(showed on picture)
2. High quality material to guarantee the saw high performance.
3. Pay more attention on customer's comments to satisfy with your requirements.
4. Unique design on tip angle have a precision and fast, clean cutting on MDF, chipboards and laminateds boards.
5. Small quantity trial order acceptable.
Specification table
| Product No | Outer Diameter | Kerf | Body Thickness | Inner Bore | Teeth Count | Teeth Type | Positioning hole | Equipment |
| ID | D (mm) | B (mm) | b (mm) | d (mm) | Z | T-type | Positioning hole | equipment |
| 1 | 300 | 4.4 | 3 | 30 | 60 | TCG | 2/10/60 | Panhans |
| 2 | 300 | 4.4 | 3 | 65 | 60 | TCG | 2/9/110 | Selco |
| 3 | 300 | 4.4 | 3 | 30 | 72 | TCG | 2/10/60 | Panhans |
| 4 | 300 | 4.4 | 3 | 65 | 60 | TCG | 2/9/110 | Selco |
| 5 | 300 | 4.4 | 3 | 75 | 72 | TCG | 2/10/60 | Homag |
| 6 | 300 | 4.4 | 3 | 80 | 72 | TCG | 2/15/110+4/9/100 | Scm |
| 7 | 350 | 4.4 | 3.5 | 25.4/30 | 72 | TCG | ||
| 8 | 350 | 4.4 | 3.5 | 25.4/30 | 84 | TCG | ||
| 9 | 350 | 4.4 | 3.5 | 60 | 72 | TCG | 2/15/100 | Holzma/Nanxing |
| 10 | 350 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 11 | 350 | 4.4 | 3.5 | 75 | 72 | TCG | 4/15/105 | Giben |
| 12 | 350 | 4.4 | 3.5 | 80 | 72 | TCG | 2/15/110+4/9/100 | Scm |
| 13 | 380 | 4.4 | 3.2 | 30 | 84 | TCG | ||
| 14 | 380 | 4.4 | 3.2 | 60 | 72 | TCG | 2/15/100 | Holzma/Nanxing |
| 15 | 380 | 4.4 | 3.2 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 16 | 380 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 17 | 380 | 4.4 | 3.5 | 75 | 84 | TCG | 4/15/105+2/7/110 | Giben/Jidong |
| 18 | 380 | 4.4 | 3.5 | 80 | 84 | TCG | 2/15/110+4/9/100 | Scm |
| 19 | 380 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 20 | 400 | 4.8 | 3.2 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 21 | 400 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 22 | 400 | 4.4 | 3.5 | 60 | 96 | TCG | 2/15/100 | Holzma/Nanxing |
| 23 | 400 | 4.4 | 3.2 | 75 | 84 | TCG | 2/7/110 | Jidong |
| 24 | 400 | 4.4 | 3.5 | 75 | 84 | TCG | 2/7/110 | Jidong |
| 25 | 400 | 4.4 | 3.5 | 75 | 96 | TCG | 2/7/110 | Jidong |
| 26 | 400 | 4.4 | 3.5 | 75 | 84 | TCG | 4/15/105 | Giben |
| 27 | 400 | 4.4 | 3.5 | 80 | 84 | TCG | 2/9/130+4/19/120 | Selco |
| 28 | 450 | 4.4 | 3.8 | 60 | 84 | TCG | 2/15/100+2/15/125 | Nanxing/holzma |
| 29 | 450 | 4.8 | 3.8 | 60 | 96 | TCG | 2/15/100+2/15/125 | Nanxing/holzma |
| 30 | 450 | 4.8 | 3.8 | 75 | 84 | TCG | 4/15/105 | Giben |
| 31 | 450 | 4.8 | 3.8 | 80 | 84 | TCG | 2/9/130+4/19/120 | Selco |
| 32 | 450 | 4.8 | 3.8 | 80 | 96 | TCG | 2/9/130+4/19/120 | Selco |
| 33 | 480 | 4.8 | 3.8 | 80 | 84 | TCG | 2/9/130+4/19/120 | Selco |
Shijiazhuan PioneerTools Co., Ltd. is specialized in manufacturing& exporting woodworking tools. Include TCT circular saw blades, Diamond saw blades, finger joint cutters, etc.
TCT circular saw blade for wood cutting/ wood ripping, saw blade for laminated, MDF panel, particle board, chipboard cutting, saw blades for panel sizing, saw blades for aluminum alloy cutting, saw blades for acrylic and plastic cutting, etc.
Engaged in woodworking tool manufacturing for nearly 20 years, high top quality raw material, Germany VOLLMER full-automatic grinding machine, brazing machine, professional technical personnel, high-quality processing team and strict management system have ensured the saw blade high precision cutting and stability of the quality.
We have excellent customer service and we are looking forward to working with you in the future to establish long-term, mutually beneficial partnership!
