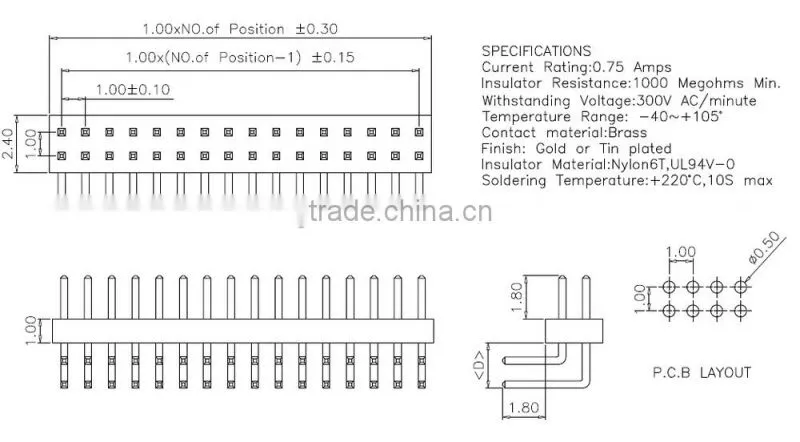

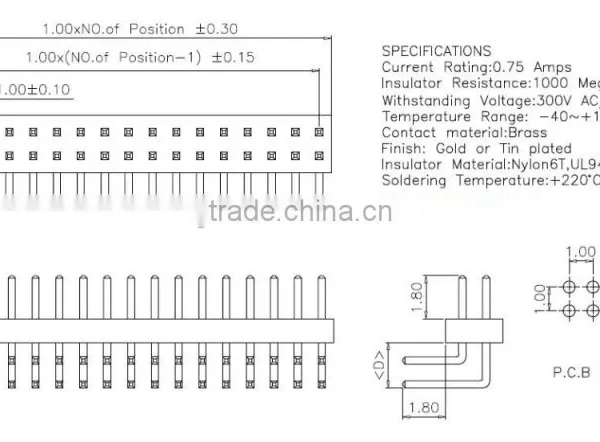

Help Center1.0mm Pitch Double Row Right Angle Pin Header Connector
Related Products
-
1.0mm Pitch Double Housing Straight Pin Header ConnectorUS$ 0.1 - 1MOQ: 5 Pieces -
1.0mm Pitch Double Row Double Straight Connector Pin HeaderUS$ 0.1 - 1MOQ: 5 Pieces
-
1.0mm Pitch Double Row Right Angle Pin Header ConnectorUS$ 0.1 - 1MOQ: 5 Pieces
-
PH100 Single Row Right Angle Pin Header ConnectorUS$ 0.1 - 1MOQ: 5 Pieces
-
1-80P PH1.0 Right Angle Pin Header Connector With Double Pin Double RowUS$ 0.1 - 1MOQ: 5 Pieces
Header connector’s structure is single row, double row even more choice. So does plastic layer. Usual raw material is PBT, PA6T, PA9T and LCP. Usually Finish is tin and gold-plated.
SPECIFICATIONS
Current rating:0.75 Amps
Insulator resistance:1000 megohms Min.
Dielectric withstanding:AC 300 V
Operating Temperature: -40deg C ~+105deg C
Contact material:brass
Insulator material:standard Nylon-6T UL 94V-0
Finish: gold flash or Tin plated or Duplex plating
Max processing temp:230%dfor 30-60 seconds. (260%dfor 10 seconds.)
Packaging and shipping
Inner packaging: Shaped plastic or customized
Outer packaging: Carton or customized
Shipping via Express
Our Service
Samples provide in 3 days, MP order delivery time in 2-4 weeks;
Your email will be replied within 24 hours;
Factory price,international standard quality, short delivery time, zero compliant.
Tips:
If you do not find your needed products in our website,it do not mean that we do not produce what you are looking for.
You know like those products there are so many speficications and we may not put all on website.
You can send your pictures or drawings for us checking to see whether we can help you or not.
If you needs those above products,pls do not forget to tell me which series,it will help me quote to you more quickly and accuracy.
Thks for you again and hope have a happy purchase !
Certificate
Our Team
R&D team Sales Team
We have R&D engineers ready to discuss how best to meet your exact OEM specifications,
excellent sales team to ensure good comunications
Our Workshop
In house mold workshop Plastic Injection Workshop
Assembly workshop Continuity testing of Assembly workshop
In-house molding,tooling, production,assembly and packing.
Our Material
We use ChangChun PBT from Taiwan, Dupont PA66 from America,
Ascend PA66 from America, and Jinfa PBT & PA66 from China.
Some of Our testing machines
Thermal shock testing machine Aging testing machine
Solt Spray tester Cable plug tester
We do inspection during the manufacturing process and before packaging
to ensure high product quality.
Contact us now.
Sales manager: Sophia cell :+86-133 1692 6528 / TEL: +86-755-2977 6155
