PCB used straight right angle smt with 1mm 1.27mm 2mm 2.54mm pitch pin header
- 1000000 Piece / Pieces per Month
- shekou
- T/T
- PCB used straight right angle 3 rows smt with 5.0mm pitch pin header
- PCB used straight right angle double rows smt with 2.2mm pitch pin header
- 1.27mm pitch right angle Pin/female header connector
- 1.0mm pitch double row straight Pin header connector
- 1.0mm pitch double row straight Pin header connector
- 1.0mm pitch double row right angle Pin header connector
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DFJM | Model Number: | PIN header |
Type: | USB | Application: | Automotive | Gender: | Other, Male and female solution |
Packaging Details
Inner packaging: Shaped Plastic
Outer packaging: Carton
Product Description

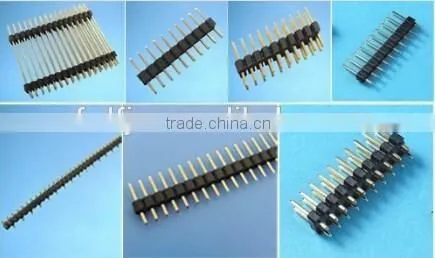

Gold plated straight 2.54 pitch single row pin header
About pin headers:
- Series: 208, 210, 211, 213 series;
- Pitch: 1mm, 1.27mm, 2mm, 2.54mm available;
- No of contacts: 2-40 pins for single row,2-80 pins for double row;
- Pin type: Straight/right angle/SMT;
- Pin length: standard is 2.8*4.0(straight pin type) but can be customized as you required;
- Contact plated: standard is gold flash plated,also can be customiezed as you required;
- Insualtor material: generally is PBT and PA6T, PA9T;
- Insulator height: generally is 2mm, can be do 1.5mm;
- Insulator plastic: can be single row, triple row, four row;
- Application:PCB board mounting;
- Quality: ROHS, ISO9001:2008, ISO14001:2004;
211 series 2.54mm pitch pin header parameters for example:
Description | Gold plated straight 2.54 pitch single row pin header |
Model | 211-XXXX-X02X-XX0 |
Pitch | 2.54mm |
Row | Single row |
Pin type | Straight/right angle/SMT |
Insulator/plastic | Single,double |
Insulator color | Black |
Insulator height | 2.5mm |
Pin No. | 2-40 pins available |
Contact | Brass |
Plating(contact) | Nickel gold and tin plating |
Insulator body | Glass filled polyester UL 94V-0 |
Plating(Boardlock) | Nickel tin plating |
Current rating | 3.0amp |
Contact resistance | 20 mili ohm max |
Insulation resistance | 1000 mega ohn min |
Dielection withstanding voltage | 500VAC RMS |
Operating temperature | -25 centigrade to 105 centigrade |
Mating cycle | more than 500 mating cycle |
Packaging and shipping
Inner packaging: Shaped plastic or customized
Outer packaging: Carton or customized
Shipping via Express
Our Service
Samples provide in 3 days, MP order delivery time in 2-4 weeks;
Your email will be replied within 24 hours;
Factory price,international standard quality, short delivery time, zero compliant.
Tips:
If you do not find your needed products in our website,it do not mean that we do not produce what you are looking for.
You know like those products there are so many speficications and we may not put all on website.
You can send your pictures or drawings for us checking to see whether we can help you or not.
If you needs those above products,pls do not forget to tell me which series,it will help me quote to you more quickly and accuracy.
Thks for you again and hope have a happy purchase !
Certificate
Our Team
R&D team Sales Team
We have R&D engineers ready to discuss how best to meet your exact OEM specifications,
excellent sales team to ensure good comunications
Our Workshop
In house mold workshop Plastic Injection Workshop
Assembly workshop Continuity testing of Assembly workshop
In-house molding,tooling, production,assembly and packing.
Our Material
We use ChangChun PBT from Taiwan, Dupont PA66 from America,
Ascend PA66 from America, and Jinfa PBT & PA66 from China.
Some of Our testing machines
Thermal shock testing machine Aging testing machine
Solt Spray tester Cable plug tester
We do inspection during the manufacturing process and before packaging
to ensure high product quality.
Contact us now.
Sales manager: Sophia cell :+86-133 1692 6528 / TEL: +86-755-2977 6155
Company Profile
Founded in 2003, Shenzhen Dongfeng Precision Components Co.,LTD. is an engineering and manufacturing company focus on Precision Connectors, cables, wire harness for automobile, Medical equipment, war industry, telecommunications industries, and household appliance. With experienced R&D team, advanced production equipment, and perfect management system, we can offer complete solutions for OEM/ODM projects, including mould development to finished products. In a rapid development of 12 years, we've been a strong and professional company with an product range of 2000 kinds and more than 20 patents.
Our TS16949 certificated factory in china mainland has a staff about 200 and 1,800 square meters of production space, two complete production lines with the auto cutting and crimping , molding ,auto flat cable crimping assembled and test equipments . The seasoned engineers and skilled employees can meet your outsourcing of special requirements and provide reliable products timely with strictly products inspection .Moreover ,quality control has deeply rooted into our company culture .
We are able to meet both high volume and low mix or low volume and high mix cable assembly demands for various industries. With our efforts, our products are exported to North America , Europe ,Eastern Asia , South Asia ,Africa and we are continuing to develop our foreign markets now . Sincerely hope we can cooperate for mutual-benefit in near future !
