100KW Open Type ShangChai Diesel Generator Set 50Hz

100KW Open Type ShangChai Diesel Generator Set 50Hz photo-1

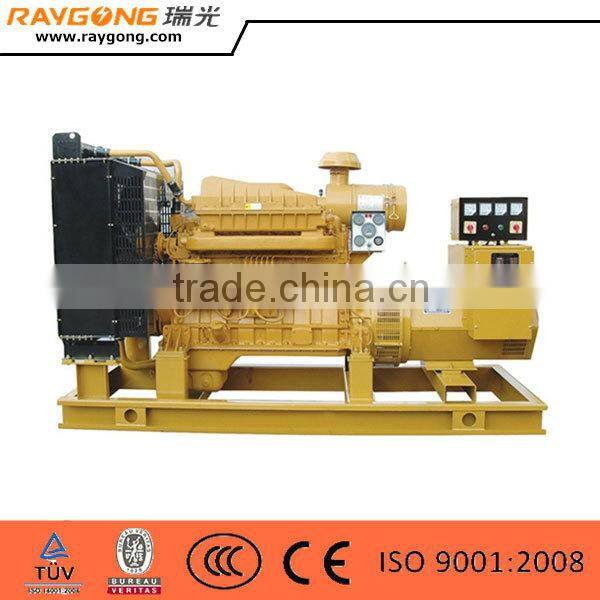

100KW Open Type ShangChai Diesel Generator Set 50Hz photo-2
US$ 1,000 - 9,999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Raygong
Model Number:
RG-100kw
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Raygong
Model Number RG-100kw
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50/60HZ
Rated Power 100kw
Rated Voltage 220V/400V
Rated Current 180A

100KW Open Type ShangChai Diesel Generator Set 50Hz



Product Description

 Shangchai diesel generator set

1.We cooperate with famous diesel engine – Volvo, Deutz, Lovol/Perkins, Weichai, MTU,Yuchai,Shangchai and others famous brand

2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.

3. High-quality steel are thickness -- 2MM to 4MM

4. High density sound-absorbing material -- sound insulation, fireproofing

5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.

6. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator

  100KW Open Type ShangChai Diesel Generator Set 50Hz100KW Open Type ShangChai Diesel Generator Set 50Hz





Model
Prime powerEngine modelNo.of cylsBore/stroke (mm)Fuel Cons. (Lir/hr)Dimension (L*W*H) (mm)Weight(kg)
KWKVA
RGS-50GF5062.54135D-14135/140232.52200*760*13801600
RGS-75GF7593.74135AD4135/150232.52200*760*13801600
RGS-90GF90112.5SC4H160D24105/1241981900*970*14001200
RGS-100GF100125SC4H180D26105/1241981900*970*14001400
RGS-120GF120150SC7H230D26105/1241982500*970*14501600
RGS-150GF150187.5SC7H250D26135/1501982500*970*14501800
RGS-200GF200250G128ZLD26135/1502252900*1130*18002600
RGS-250GF250312.5G128ZLD16135/1502253100*1290*18003000
RGS-300GF300375G128ZLD116135/1502303100*1350*18503500
RGS-300GF300375SC15G500D26114/135229.82800*1200*18503200
RGS-350GF350437.512V135AZLD12135/150232.63200*1450*19004200
RGS-400GF40050012V135BZLD12135/1552103300*1550*19004800
RGS-450GF450562.512V135BZLD212135/1552103400*1550*19004800
RGS-500GF50062512V135BZLD112135/1552103400*1550*19004800





Packaging & Shipping

100KW Open Type ShangChai Diesel Generator Set 50Hz

FAQ

Q:   what is you deliver time ?

A:    Within 30days after got your T/T deposit or LC

Q:    Is it all right to make customer brand name?

A:    You can OEM brand name if the quantity above the MOQ.

Q:   Where is your loading port?

A:    Fuzhou,China .

Q:   What are your payment term?

A:   30% deposit, the balance T/T against by the copy of B/L or L/C at sight.

Q: How to select generator?

(1).Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).

(2).Different country with different rated frequency(50Hz or 60Hz).

(3). For sea side operating environment,anti-condensation heater and droop CT.

(4). Generator insulation class H.(Inccopper wire,rotor,stator,)

(5). Generator stators are wound to 2/3 pitch. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches, when in parallel with the mains.

Company Information

1. FUAN RAYGONG ELECTRICAL MACHINERY CO.,LTD  with 15 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!

2. Main Product Lines:

a.Gasoline Generator Series: 0.75--6KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.

b.Diesel Generator Series: 5--720KW. CE certificates.

c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.

d.Water Pump Series: 1.5',2',3', 4' Water pumps. CE certificates.

e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.

f. Tiller Series: Garden,small farm,large field,ect.

g.IC Forklift Series, Electric Pallet Truck Series, Electric Stacker Series, OEM Offered .

100KW Open Type ShangChai Diesel Generator Set 50Hz

Exhibition

100KW Open Type ShangChai Diesel Generator Set 50Hz

Certificate

100KW Open Type ShangChai Diesel Generator Set 50Hz



Rgi series brushless ac synchronous generator,st stc series single phase three phase harmonic ac synchronous generators c series diesel generator sets, l series diesel generator sets weifang series diesel generator sets yuchai series diesel generator sets shangchai quanchai series diesel generator sets gasoline generator sets air cooled diesel generator sets generator spare parts avr control speed governor alternator sound proof generator sets pe series diesel generator sets accessories ats switch manual control panel gasoline generator water pump gasoline engine brushless alternator gener stc st alternator brushless generator  sound proof silent diesel generator

Any questions pls feel free to contact me, thanks!
