wood working cnc routerSpindle power 4.5KW
Horizontal axis Power 3KW
Horizontal axis speed 24000rpm/min

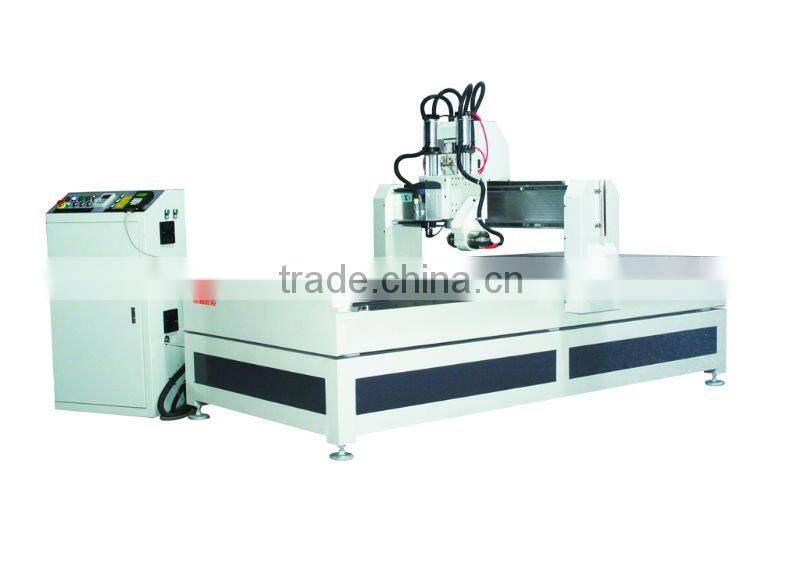

Ja1325-C CNC wood working cnc router (Horizontal drilling machine ) Feature:
1. The whole lathe is thicking,scientific welded,so it will not be become distorted.
2. using imported straight _quadrated rail ,which imported from TaiWan.Two rows and four lines_rolling block devices that ensure it is high loading capacity and moves steadily.the imported screw rod from Germany is very precise.
3. has a power outage continued carving ,power failure recovery,processing time prediction function ,the real humanism design come true.
4.software has good compatibility and is compatible with several design software such as type 3/artcam/castmate/weitai and variety of CAD/CAM design software generate code which is processing.Ensure that the design barrier_free.
Specification: JA1325-C (Horizontal drilling machine)
Model | JA1325-C |
Table size | 1440*3040mm |
X Y Z axis working area | 1300*2500*200mm |
X-Y movement | Rack and pinion ,gear drive |
Z movement | Ball screw drive |
Max cutting speed | 20000mm/Min |
Max speed | 35000mm/Min |
Repeat positioning accuracy | 0.05mm |
Resolutions | 0.025mm |
Adsorb power | 4.5kw /water cooling |
Spindle speed | 24000rpm/Min |
Inverter power | 7.5kw |
Horizontal spindle power | 3KW |
Inverter power | 3.7kw |
Working Voltage | AC380/50-60Hz 3-phase |
Command code | G code |
Drive motors | stepper |
Collet | ER 25~12.7mm.6mm,3.175mm |
Computer interface | USB 2.0 |
Software | Type 3 software/France |
Controls | DSP0501(digital signal processor) for two spindle |
Packing dimensions | 2200mm*3200mm*1850mm 1400kg |
Equipment available | a,Vacuum hold down b,Auto cut adjusting device c,Oil lubrication system d.Clamps and vacuum fitting |
