Specifications
XK45MT-3B furniture machine1.Adsorb power:4.5kw
2.Working size:1300*2500*200mm
3.have 3 spindle heads
XK45MT-3B furniture machine
Using Industry:
XK45MT-3B add cylinders on the basis of three-spindle in one axis, which make the machine can working three different router for three kinds of patterning on the same material, a function of better, more efficient, more convenient for the users. Professional Services in the production of woodworking, cabinets and office furniture such as plate, for flat engraving.
Features:
1.the distance between heads can be adjusted according to the working pieces being processed
2. the spindles can work alternately and shift rapidly, grealy increasing the efficiency and saving the cost, suitable for the working condition of 2-4 tools.
3. Original Ncstudio system, easy to learn and convenient to operate; imported Taiwan linear guide rail, German ball screw and big torque stepper motor, ensure an excellent performance and precise working
4. Rotary attachment is optional, which enable the machine to engrave on column work pieces like table.
5. Especially firm structure and special design on details make the machine to achieve the best performance results
6. Widely application
Furniture industry: solid wood furniture, wooden door, cabinet,
Wooden products processing: wooden Speakers, wooden Clock, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting.
Artwork making: photo frame, jewelry box
Electronic industry: circuit board, insulation material, LED display screen
Parameters:
Description | |
X,Y,Z working area |
1300*2500*200mm(51.2*98.4*7.9inch) |
X,Y,Z System Resolution |
±0.025mm |
X,Y,Z Reposition accuracy |
±0.05mm |
Table surface |
vacuum table |
Lathe bed |
Steel-welding structure |
|
E X,Y transmission |
High accuracy gear rack |
Z transmission |
Imported ball screw |
Max travel speed |
35000m/min |
Max working speed |
20000m/min |
Spindle power motor |
4.5kw (3kw, 6kw for option) |
Spindle speed |
18000r/min |
Driver system |
Stepper motor |
Working voltage |
380V/50-60hz |
Command language |
G code |
Operation system |
Ncstudio |
Interface |
USB2.0 |
Collect |
3.175-12.5 |
Software |
Type3, Wentai, ArtCAM |

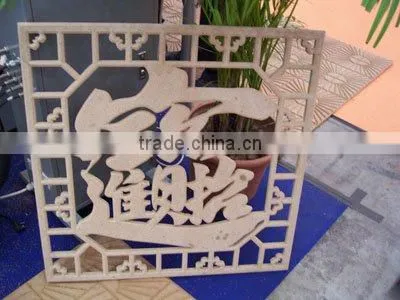

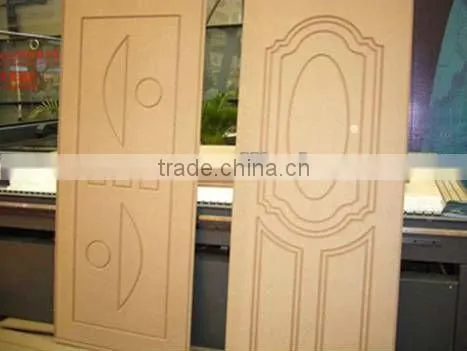

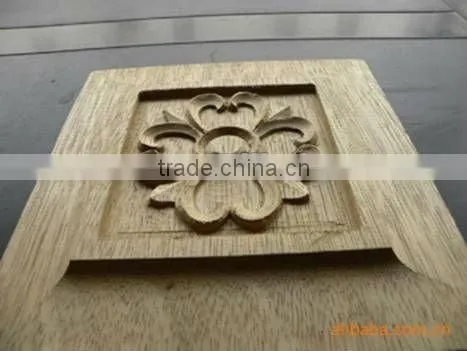

Samples
