Generator sets | Mode | RGW-200GF |
Max.Output (KW) | 220 | |
Rated.Output (KW) | 100 | |
Freuency (HZ) | 50 | |
Voltage (V) | 220/380 | |
Rated Current (A) | 180 | |
Power Factor | 0.8 | |
Starting way | Electric start | |
Panel shape | Universal panel | |
Frameware shape | Open type | |
DC output | Without | |
Fuel Tank(L) | Withtout | |
Fuel consumption (g/kW.h) | 225 | |
Continuing running time(Under rated output) | Available for continuing running | |
Dimension (mm) | 2650×850×1400 | |
Net.weight (kg) | 1300 | |
Accessory tools | Tool box/ manual /wear parts | |
Engine | Engine brand | Shangdong weifang |
Engine model | R6105AZLD | |
Max.output [Kw(r/min)] | 110 | |
Adjusting system | Machinery | |
Noise Level(Null-Full)(A)/7m 65-75 | >80db | |
Cylinder type | Six Cylinder, OHV,4-Stroke,water cooled | |
Bore×Stroke (mm) | 105×120 | |
Compression | 14.5:1 | |
Displacement (ml) | 649 | |
Speed (r/min) | 1500 | |
Lub Mode | CD or upward or SAE10W-30,15W-40 | |
Lub tank (L) | 14 | |
Battery capacity (v-Ah) | 12V-120A | |
Cooling way | Water-cooled | |
Lub way | Pressure splashing compound | |
heat radiation water tank (L) | 120 | |
Fuel type | Diesel:0#(Summer)-10#(Winter)-35#(severe cold) | |
Alternator | Alternator Manufacture | Fuan Raygong |
Model | RGI-100KW | |
Alternator type | Brushless | |
Phase | Three phase | |
Insulation level | F | |
Pole | 4 | |
Magnetization way | Brushless self-excitation | |
Output socket | Without | |
Output wiring terminal | Yes |

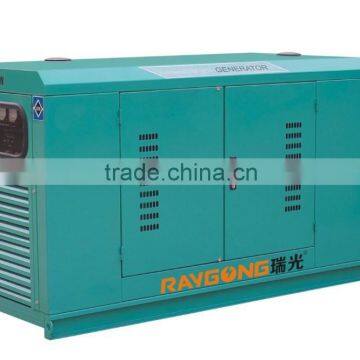

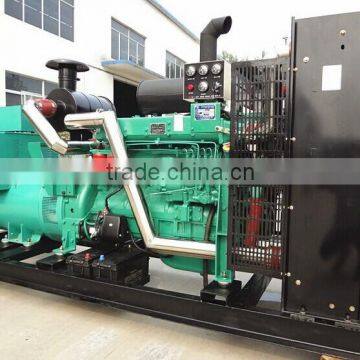

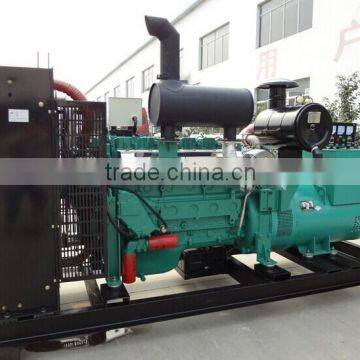

200KW Weifang diesel geneartor sets
FUAN RAYGONG ELECTRICAL MACHINERY CO.,LTD,established in 2009,located in No 56, Stone Yard, Chengyang County, Fuan city which is well known as "city of electric machinery and appliances" in China. We are professional manufacturer of gasoline generator sets from 0.5KW to 10KW, diesel generator sets from 2KW to 2000KW and alternators from 3KW to 2000KW.
We manufacture high quality products according to ISO9001 Quality control system and China Compulsory certificate, and get many international authentication including CE.
We established excellent and high efficient working team based on People-oriented, Quality-oriented management. We follow "Quality is the root, customer is the tenet" and supply the quality product and circumspect service wholeheartedly.
Our products got good reputation at home and abroad and are exported to more than 30 countries including UK,Italy, USA, Australia and so on. Our products deserve high reputation among our clients due to top quality and competitive price.
We sincerely hope to work with you to create a long term mutual beneficial business relationship.
