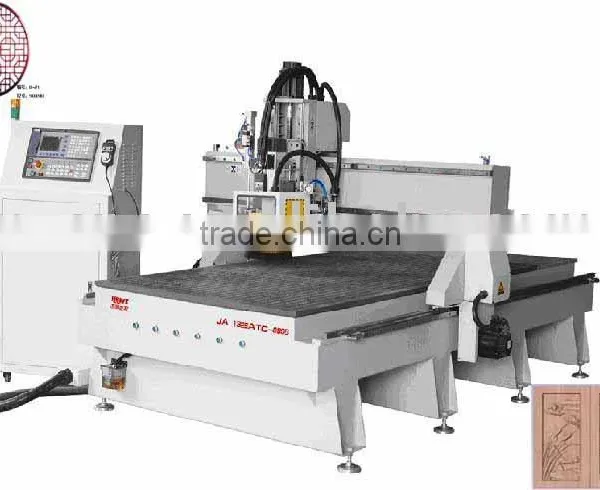

Wood Engraving Machine JA1325-0808

Name: Wood Engraving Machine JA1325-0808
Brand: HAWK
SKU: 105904757
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

HAWK

Model Number:

JA1325ATC-0808

Jinan Creat Star CNC Machinery Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name HAWK

Model Number JA1325ATC-0808

Specifications

Wood engraving machine
1.Table size :1350*3100*300mm
2.Max speed: 6000mm/Min
3..Adsorb power: 8kw HSD /Italy
4.Servo

Jinan Chuangxing Wood engraving machine JA1325-0808

1)high efficency ,high speed 2)steel welding 3)Taiwan H30 Liner rail

4)Japan servo system 5)Taiwan Control System

CNC machine center:

Using :furniture decorative material.3D wave plate.cupboard doors,cabinets,model,musical instrument ,milling machine

Feature:

1. Structure stability:whole machine is welded with seamless steel.the stability is excellent .not easy to be deformed.
2. Excellent Parts:Adopted Italy made HSD air-cooled spindle with strong power of 8.0kw .so the machine can keep working for long-time wirhout fault .X-Y axis rack and pinion. Transmission.fast working.higher efficiency and low lost .Z axis adpots Germany-made Ball screw and Taiwan Hiwin30 linear orbit.with high precision and long life time.
3. Excellent compatibility:CAD/CAM designing software .eg:type 3/Artcam/Castmate/Wentai.etc Guarantee that the design of barrier-free
4. Advanced Taiwan-made LNC control system with separated keyboard and color LCD screen,make the operation easier.and the automatic tool change system like bamboo leaf hats .automatic tool change system
5. Adopting high-torgue .Japan YASKAWA servo motor and with steady working capability and high positioning precision.
6. Auto-oil lubrication system makes maintance more convenionet.
7. Vacuum table with 6 table zones.which can adsorb different size materials and has strong suction of 230cube meter/hour

Technical Parameter:

JA1325ATC-0808

1	Machine description	JA1325ATC-0808 parameter
2	Machine size	1350*3100mm
3	X-Y-Z axis Working area	1300*2500mm
4	X-Y axis movement	Rack and pinion ,Linear orbit. gear drive/Taiwan
5	Z movement	Ball screw drive/Germany
6	Table surface	Vacuum System(option:T-slot and Vacuum Table
7	Guide	Liner30 square /Taiwan
8	Max speed	60,000mm/Min
9	Max cutting speed	30,000mm/Min
10	Repeat positioning accuracy	0.02mm
11	Resolution ratio	0.002mm
12	Spindle rotating speed	18000rpm/Min
13	Feed in height	300mm
14	Adsorb power	Italy HSD 8kw/(air cooling)
15	Working Voltage	AC380/50-60Hz 3Phase
16	Computer interface	USB 2.0
17	Inverter power	11KW
18	Collet	ISO30-12.7mm , 6mm, 3.175mm
19	Software	Type 3 software/France Ucancam software(Option:Artcam software)
20	Running Environment	Temperature:0 degree~45 degree
21	Command code	HPGL,G code ,U00,mmg.plt
22	Controls system	SYNTEC EMBED-CNC control system
23	Drive motor	Servo motors and drivers/Japan(Option:Yaskawa servo,Panasonic servo)
24	Packing dimensions	2200mm3200mm1850mm 2500kg
25	Equipments included	vacuum hold down oil lubrication system dust-removal system clamps and vacuum fitting
