Furniture Woodworking CNC Router Machinery JA1325ATC-08081.Imported liner guide rail
2.Vacuum table
3.With oiling system

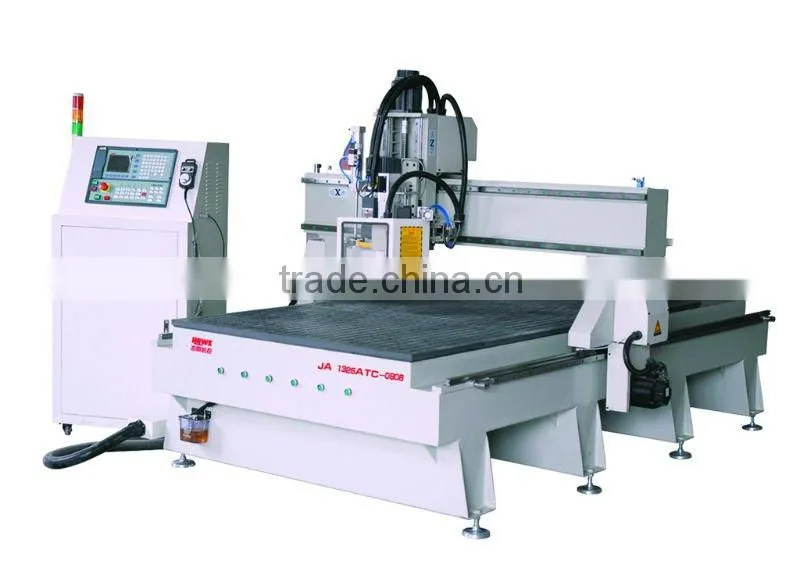

Furniture Woodworking CNC Router Machinery JA1325ATC-0808
Using industry:
Chuangxing JA1325ATC-0808 Gantry-type CNC maching center is designed for the customers for a high standard, high demand, high degree of automation. Suitable for large-volume, all-weather processing of non-ferrous, metal plate.
- Funiture and Decoration: A large area flat plate engraving, drilling processing,sculpture and patterns on doors and windows, panel furniture carving, wood art murals, , cabinet door sculpture.
- Wood Product Industy: Sewing machine table, electrical counter face, sports equipment
- Musical Instrument Industry: Three-dimensional surface can be carved musical instruments, shape cutting.
Model Features
1. Structural stability: Industry into the production model, heavy-duty full steel frame structure, welding, tempering efficient vector processing, solid non-deformed.
2. Good Parts: Taiwan LNC system, Italy HSD spindle motor.And the spindle bearings for high-precision ceramic bearings, low noise, long life.
Adopted from Taiwan Hiwin 30 linear rail, ball screw from Germany, bearing force, under the knife and accurate
To adopt Japanese Yaskawa servo drive system, torque and has a perfect security system.
3. Modular structure design: Select and add a variety of machining spindle configuration, can be sculpture, engraving, milling work.
4. A simple and secure mode of operation, advanced document pre-processing to ensure the speed and accuracy of operation
5. Automatic tool- change systems which can contain 8 knives.
6. High adhesion, vacuum suction device, the displacement of up to 230 cubic meters / hour
7. Compatible: Open software interface, compatible with type3/arteam/castmate / Wentai a variety of CAD / CAM design software generate the processing code, to ensure the design of barrier-free.
Technical Parameter:
JA1325ATC-0808
Machine description |
JA1325ATC_O8O8 |
Table size |
1350*3100mm |
Working area |
1300*2500mm |
Max cutting speed |
30000mm/min |
X-Y axis movement |
Rack and pinion ,gear drive/Taiwan |
Z movement |
Ball screw drive/Germany |
Max speed |
60000mm/min |
Repeat positioning accuracy |
0.02mm |
Resolution ratio |
0.002mm |
Spindle rotating speed |
18000rpm/Min |
Feed in height |
300mm |
Adsorb power |
8kw/(windy cooling) Itlay |
Working Voltage |
AC380/50-60Hz 3Phase |
Computer interface |
USB 2.0 |
Collet |
ISO30-12.7mm ,6mm,3.175mm |
Software |
Type 3 software/France |
Command code |
HPGL,G code |
Controls |
SYNTEC EMBED-CNC control system |
Drive motor |
Servo/Japan |
Packing dimensions |
|
Equipments included |
|
