cheap warehouse buildings roof for sale
- 5000 Ton / Tons per Month
- qingdao tianjin
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | sw | Model Number: | sw-01 |
Product Description
cheap warehouse buildings roof for sale
1 | Steel Structure Parts (Q235 or Q345) Hot galvanized or painted. | (1). Steel Column: H Section Steel |
(2). Steel Beam: H Section Steel | ||
(3). Withstand Wind Column: H Section Steel | ||
(4). Connected beam: Circular Tube | ||
(5). Roof Purline: cold formed galvanized C Section Steel | ||
or Z Section Steel | ||
(6). Wall purline: cold formed galvanized C Section Steel | ||
or Z Section Steel | ||
(7). End Wall purline: C Section Steel or Z Section Steel | ||
2 | Panel Material parts | (1). External Wall panel: (below is selectable) |
1) 50mm, 75mm or 100mm thickness EPS sandwich panel | ||
2) 50mm, 75mm or 100mm thickness Rockwool sandwich | ||
panel | ||
3) 900# Corrugated Galvanized Steel sheet with different Color | ||
4) Kinds of PVC wall panel. | ||
(2). Internal Wall panel: (below is selectable) | ||
1)50mm, 75mm or 100mm thickness EPS sandwich panel | ||
2) 50mm, 75mm or 100mm thickness Rockwool sandwich | ||
panel | ||
(3). Roofing panel: (below is selectable) | ||
1)50mm, 75mm or 100mm thickness EPS sandwich panel | ||
2)50mm, 75mm or 100mm thickness Rockwool sandwich | ||
panel | ||
3)Corrugated Steel Sheet, and insulating layer if need. | ||
4)Corrugated PVC roof panel. | ||
(4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP) | ||
3 | Door and Window | (1). External Door ( Rolled up door or Sliding door ) |
-1. Over-heat Orbit Sliding Door with double open | ||
-2. Galvanized steel opening by power-operated Roller Door | ||
(2). Internal Door: | ||
50mm Thickness EPS sandwich panel with aluminum alloy door frame | ||
(3). Window: | ||
PVC Window or aluminum alloy window frame with glass. | ||
4 | Drainage parts | (1).Galvanized water channel: |
2mm thickness galvanized steel water channel @ 3000mm or 2440mm/pcs | ||
(2). Down spout: ∅110 PVC Down spout with Accessorie | ||
5 | Connecting Piece | (1) Purline draw bar: ∅12 |
(2) Horizontal Bracing: ∅24 Circular Tube | ||
(3) Knee-Bracing: L Steel | ||
(4) Purline Drive pipe: Φ32*2 | ||
(5) Column Bracing: ∅24 Circular Tube | ||
6 | Others | (1) Ventilating device |
(2) Crane beam | ||
(3) Canopy | ||
(4) Bolt: Foundation bolt, High strengthen bolt, Normal bolts. | ||

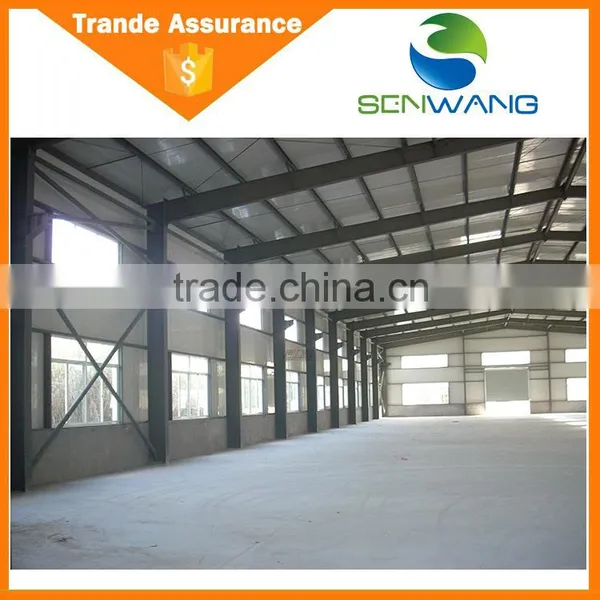

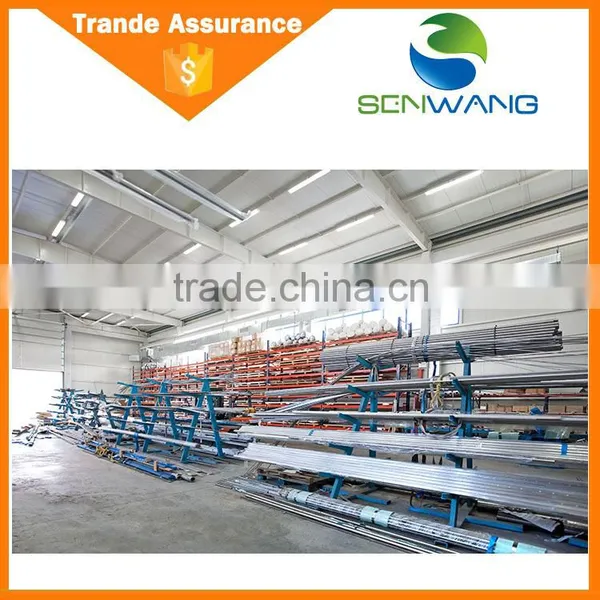

Warehouse storage show
we are big group factory and have more than 25 years experience of steel structure workshope project The first design&Engineering Service,Excellent product and perfect Has won the praise of customers and want to cooperation with more and more friends and customer add us team .
Our factory have independent design institute and the Design qualification is the grade one .excellent design and the perfect price Beyond your imagination .If you want to a perfect warehouse and please provide to us that information wihich as follows;
Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
Q1: What are your main products?
A: Our man products have prefab K house, T house, SHS house, H house, container house, light steel structure villa, steel structure warehouse, sentry box, sandwich panel and other constructive materials.
Q2: What will client provide before factory offers good quotation?
A: When we receive inquiry from client, client please fills purchasing intention sheet, providing us with information of house dimensions, draft drawing, layout and materials for prefabricated house. We will design the drawings and offer competitive quotation with the above information.
Q3: What are main materials of prefabricated house?
A: Our prefabricated house materials mainly include light steel structure, sandwich panel, roof tile, door, window, covers, screws and other accessories.
Q4: How you calculate the total area?
A: Industry calculation rule as below:
(1) house area = exterior house length X exterior house width X floor
(2) canopy area=exterior house length X 1/2 X canopy width
(3) staircase area = 4.5 sqm X quantity of staircase
(4) corridor area = exterior house length X corridor width
(5) total area = (1) + (2) + (3) + (4) + (5)
Q5: What drawing of house will factory supply?
A: Plan drawing, elevation drawing, sectional drawing, foundation drawing, installation drawing.
Q6:How many types of sandwich panel do you have?
A: We have EPS(polystyrene)sandwich panel, rock wool sandwich panel, and PU(polyurethane)sandwich panel.
The characteristics of your sandwich panels respectively:
1.EPS(polystyrene)sandwich panel: thickness is 50mm, 75mm, 100mm. EPS volume weight is 80-200Kg/m3, water-proof.
2.Rock wool sandwich panel: thickness is 50mm, 75mm, 100mm. Rock wool volume weight is 200-400Kg /m3, fire-proof, sound-insulation, heat-preservation.
3.PU(polyurethane)sandwich panel: thickness is 50mm, 75mm, 100mm. PU volume weight is 150-300/m3 water-proof, fire-proof, heat-proof, heat-insulation, heat-preservation, sound-insulation.
Q7: How many colors do your sandwich panels have?
A: Offwhite, ivory white, blue, green and red color.
