copeland cooling unit
1. Introduction:
Copeland cooling unit consists of Copeland compressor, air cooled condenser, pressure control, hi&low pressure guage, solenoid valve, filter drier, oil separator, etc. They are widely applied to freezer room and chiller room for freezing and cold storage.
2. Tech.Data:
| Model | Nominal Horse power | Nominal Ref. Capacity | Compressor power | Condenser | In and out o f the tube diameter |
|||
| Heat exchange area | Total volume air | Motor power | Air suction | Outlet pipe | ||||
| HP | R22(W) | KW | m² | m³/h | nxW | mm | mm | |
| ZB15/FH18 | 2 | 3750 | 1.84 | 18 | 2200 | 1x140 | 19 | 10 |
| ZB19/FH22 | 2.5 | 4350 | 2.00 | 22 | 3400 | 1x180 | 19 | 10 |
| ZB21/FH28 | 3 | 5500 | 2.50 | 28 | 4400 | 2x140 | 19 | 12 |
| ZB26/FH33 | 3.5 | 6050 | 2.78 | 33 | 4400 | 2x140 | 19 | 12 |
| ZB29/FH33 | 4 | 7370 | 3.19 | 33 | 4400 | 2x140 | 22 | 12 |
| ZB38/FH41 | 5 | 8800 | 3.90 | 41 | 6800 | 2x180 | 22 | 12 |
| ZB45/FH50 | 6 | 11100 | 4.78 | 50 | 6800 | 2x180 | 22 | 16 |
| ZB48/FH60 | 7 | 12194 | 5.18 | 60 | 6800 | 2x180 | 22 | 16 |
| ZB58/FH72 | 8 | 14150 | 6.10 | 72 | 8800 | 4x140 | 28 | 16 |
| ZB66/FH80 | 9 | 16500 | 6.75 | 80 | 13600 | 4x180 | 35 | 16 |
| ZB76/FH90 | 10 | 19500 | 8.00 | 90 | 13600 | 4x180 | 35 | 16 |
| ZB88/FH100 | 12 | 22000 | 9.05 | 100 | 13600 | 4x180 | 35 | 22 |
| ZB95/FH120 | 13 | 22400 | 10.10 | 120 | 13600 | 4x180 | 35 | 22 |
| ZB114/FH140 | 15 | 27000 | 12.05 | 140 | 19200 | 4x250 | 35 | 22 |

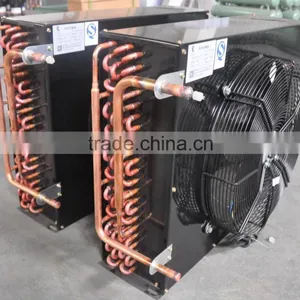

3. Main components:
4. Different type for cooling unit:
All the products are packed with wooden case for exporting specially, fumigation is not needed.
We have professional shipping company like MSK, CMA, MSC, CSCL, COSCO, MOL to support us on shipment, ship our products to your hand easily.
Shanghai EMTH Import & Export Co., Ltd., as a sole agent of Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them.
With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment are being exported to countries like the United States, Canada, Germany, middle-east, etc.
Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.
We are sure EMTH will provide best solution for you.
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
