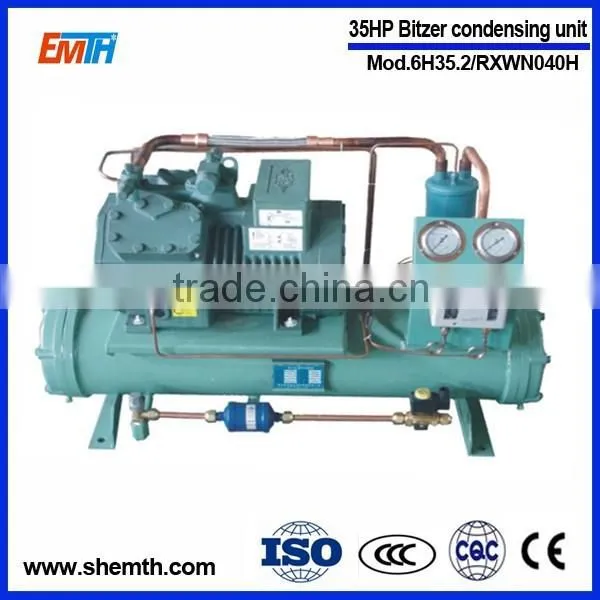

Shell and Tube Condenser for Cold Storage

Shell and Tube Condenser for Cold Storage thumbnail-1
Shell and Tube Condenser for Cold Storage photo-1
US$ 1,000 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BITZER
Model Number:
6H35.2/RXWN040H
Contact Supplier Request Quote Chat Now
Shanghai EMTH Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BITZER
Model Number 6H35.2/RXWN040H
Type Other, Semi-hermetic wind cooling units
Application Refrigeration Parts
Certification CE

Specifications

shell and tube condenser
1. Temperature: high and middle
2. Brand name: BITZER
3. Type: Semi-hermetic
4. Size: 1640mm*720mm*

 shell and tube condenser

1. shell and tube condenser Introduction:

 Refrigeration equipment consists of compressor, condenser, pressure control, etc. We use the Bitzer brand compressor and other brand spare parts, so to make sure the whole system is in excellent performance.



2. shell and tube condenser Specification:



 Model Nominal Horse power Nominal Ref. Capacity Compressor power Condenser In and out of the tube diameter
Model Cooling water volume In and out of the water tube dia. Air suction Outlet pipe
HP R22(W) KW m³/h nxW mm mm
2HC2.2/RXWN003H 2 3910 1.40 RXWN-003 2.2 G1 16 10
2FC3.2/RXWN003H 3 5590 2.00 RXWN-003 2.2 G1 16 10
2DC3.2/RXWN005H 3 7980 2.69 RXWN-005 3.0 G1 1/2 22 12
2CC4.2/RXWN005H 4 9890 3.31 RXWN-005 3 G1 1/2 22 12
4FC5.2/RXWN005H 5 11230 3.66 RXWN-005 3.0 G1 1/2 22 12
4EC6.2/RXWN008H 6 13860 4.56 RXWN-008 4.3 G1 1/2 28 12
4DC7.2/RXWN008H 7 16830 5.40 RXWN-008 4.3 G1 1/2 28 16
4CC9.2/RXWN010H 9 20250 6.62 RXWN-010 5.2 G2 28 16
4VCS10.2/RXWN010H 10 22250 6.61 RXWN-010 5.2 G2 28 16
4TCS12.2/RXWN015H 12 26800 8.09 RXWN-015 8.4 G2 35 16
4PCS15.2/RXWN020H 15 31950 9.35 RXWN-020 11.0 G2 42 16
4NCS20.2/RXWN025H 20 37000 11.34 RXWN-025 13.4 G2 42 22
4J22.2/RXWN025H 22 41000 12.24 RXWN-025 13.4 G2 42 22
4H25.2/RXWN030H 25 47150 14.17 RXWN-030 16.5 G2 54 22
4G30.2/RXWN035H 30 54000 16.67 RXWN-035 19.5 G2 1/2 54 22
6H35.2/RXWN040H 35 70800 21.30 RXWN-040 21.8 G2 1/2 54 22
6G40.2/RXWN050H 40 81100 25.00 RXWN-050 27.3 G3 54 28
6F50.2/RXWN060H 50 95900 31.30 RXWN-060 31.8 G3 54 28
8GC60.2/RXWN070H 60 12590 38.70 RXWN-070 38.7 G3 76 35
8FC70.2/RXWN080H 70 138500 48.30 RXWN-080 43 G3 76 35







 3. shell and tube condenser Workshop:

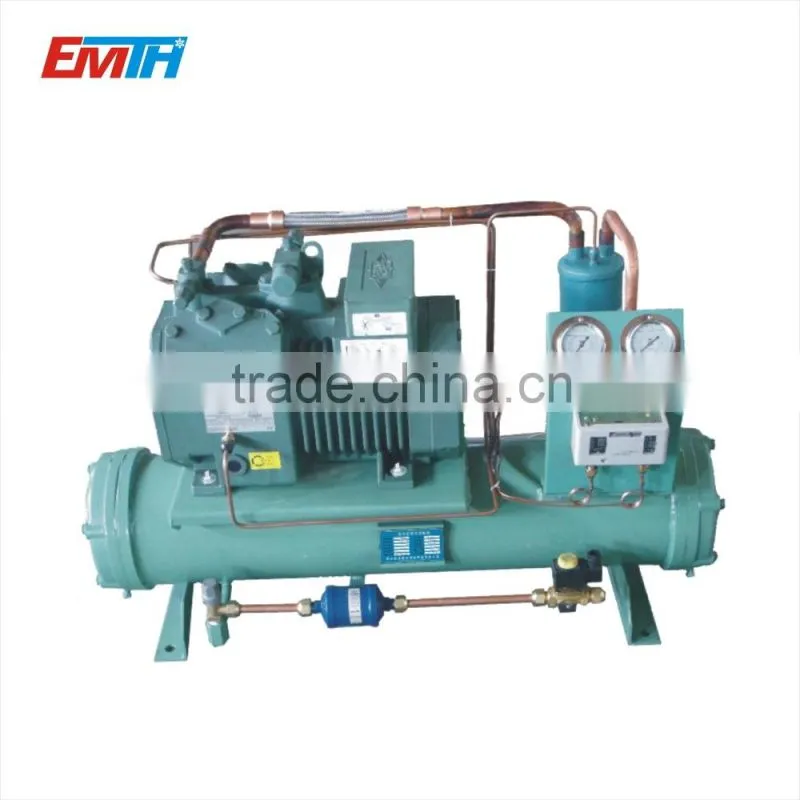

 shell and tube condenser for cold storage





shell and tube condenser for cold storageshell and tube condenser for cold storage



shell and tube condenser for cold storageshell and tube condenser for cold storage




4.Exhibition in Germany,Beijing 2014:











5. Company Information:





Shanghai EMTH Import & Export Co., Ltd., belongs to Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them. Besides, mushroom is our another product, which mainly includes the Pleurotus Eryngii and seafood mushroom. We produce both the refrigeration equipment and mushroom in large scale.



With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment and mushroom are being exported to countries like the United States, Canada, Germany, middle-east, etc.



Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.



We are sure EMTH will provide best solution for you.







6. Certificates:





7. FAQ:







Q1: Are you a factory or a trading company?



A1: We are a factory







Q2: Where is your factory located?



A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.







Q3: Is a sample available?



A3: Yes, but the sample will be at your charge.







Q4: What is the main market for your products?



A4: Our main market is in Middle East, South America, Europe and USA.







Q5: What is your warranty?



A5: We can assure you one year against manufacturing defect.







Welcome to contact us for more details!
