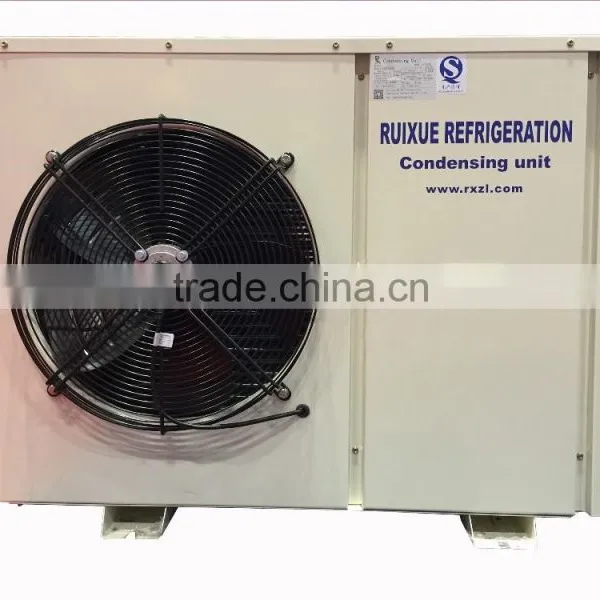

Small Condensing Unit

Small Condensing Unit thumbnail-1
Small Condensing Unit photo-1
US$ 360 - 1,200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Condensing unit
Place of Origin:
Zhejiang, China
Brand Name:
RUIXUE
Contact Supplier Request Quote Chat Now
Shanghai EMTH Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Condensing unit
Place of Origin Zhejiang, China
Brand Name RUIXUE
Model Number RX-FNL-02MH
Certification CE, CSA, GS, ROHS, UL
After-sales Service Provided No overseas service provided



Product Description

  small condensing unit

1.R22, R404A

2. 380V 50HZ 220V 50HZ
3. Fitted with original Copeland compressor



Small condensing unit is a best solution for small freezer cold room or chiller room.

Specifications:

Based on R22 refrigerant



                         Medium and High Temperature Air-cooled Condensing Unit

                                         Scroll Series

Model of units

RX-FNL-02MH

RX-FNL-03MH

RX-FNL-05MH

RX-FNL-06MH

RX-FNL-08MH

Compressor

ZB15KQ

ZB21KQ

ZB38KQ

ZB45KQ

ZB58KQ

Applicable evaporating temperature

0℃ ~ -15℃

Refrigerant

R22

Power supply

380V/50HZ



Cond

enser

Quantity of Fan

1

1

2

2

2

Air volume (m3/h)

1*3200

1*3200

2*3200

2*3200

2*3200

Power of Fan(w)

1*60

1*60

2*60

2*60

2*60





Ref. capacity for condensing units

Evaporating

Temperature at 0 degree

Ref. capacity(w)

4775

6840

11200

13850

18100

Power(w)

1615

2300

3570

4330

5500

Evaporating

Temperature at -5 degree

Ref. capacity(w)

3950

5710

9175

11150

14925

Power(w)

1630

2280

3525

4325

5490

Evaporating

Temperature at -12 degree

Ref. capacity(w)

2985

4230

6575

8560

10675

Power(w)

1660

2240

3490

4345

5440

Connector

Tube coupling

φ10

φ10

φ12

φ12

φ16

Suction coupling

φ16

φ16

φ19

φ19

φ22

Overall dimension



Length (A)mm

1020

1020

1020

1020

1020

Width (B)mm

420

420

420

420

420

Height (H)mm

850

850

1250

1250

1250

Installation dimension

(D)mm  Length

590

590

590

590

590

(E)mm  Width

440

440

390

390

390





 Based on R404A refrigerant:



                         Medium and High Temperature Air-cooled Condensing Unit

                                        Scroll Series

Model of units

RX-FNL-02MH

RX-FNL-03MH

RX-FNL-05MH

RX-FNL-06MH

RX-FNL-08MH

Compressor

ZB15KQE

ZB21KQE

ZB38KQE

ZB45KQE

ZB58KQE

Applicable evaporating Temperature

-5℃ ~ -25℃

Refrigerant

R404A

Power supply

380V/50HZ

Cond

enser

Quantity of Fan

1

1

2

2

2

Air volume (m3/h)

1*3200

1*3200

2*3200

2*3200

2*3200

Power of Fan (W)

1*60

1*60

2*60

2*60

2*60





Ref. capacity for condensing units

Evaporating

Temperature @-15 degree

Ref. capacity(w)

2550

3990

6750

7950

9850

Power(w)

2000

2650

4370

5050

6630

Evaporating

Temperature @ -20 degree

Ref. capacity(w)

2020

3280

5500

6540

7560

Power(w)

1980

2630

4350

5030

6610

Evaporating

Temperature @-25 degree

Ref. capacity(w)

1620

2680

4700

5650

6550

Power(w)

1960

2610

4330

5010

6580

Connector

Tube coupling

φ10

φ10

φ12

φ12

φ16

Suction coupling

φ16

φ16

φ19

φ19

φ22

Overall dimension



 Length (A)mm

1020

1020

1020

1020

1020

Width (B)mm

420

420

420

420

420

Height (H)mm

850

850

1250

1250

1250

Installation dimension

Length (D)mm

590

590

590

590

590

Width (E)mm

440

440

390

390

390

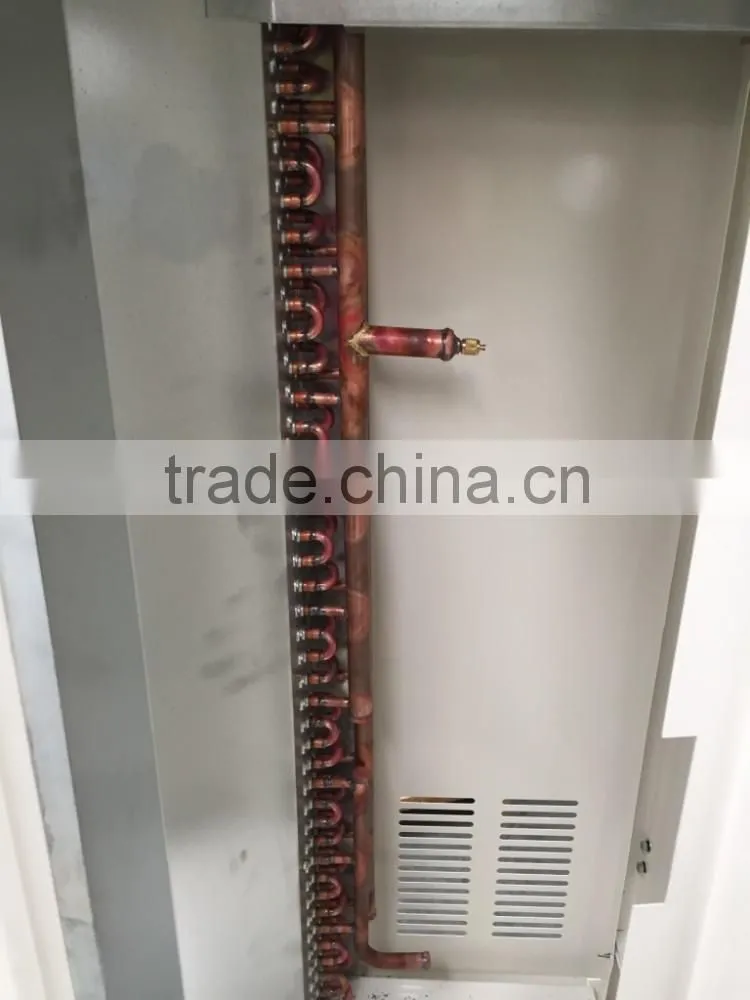

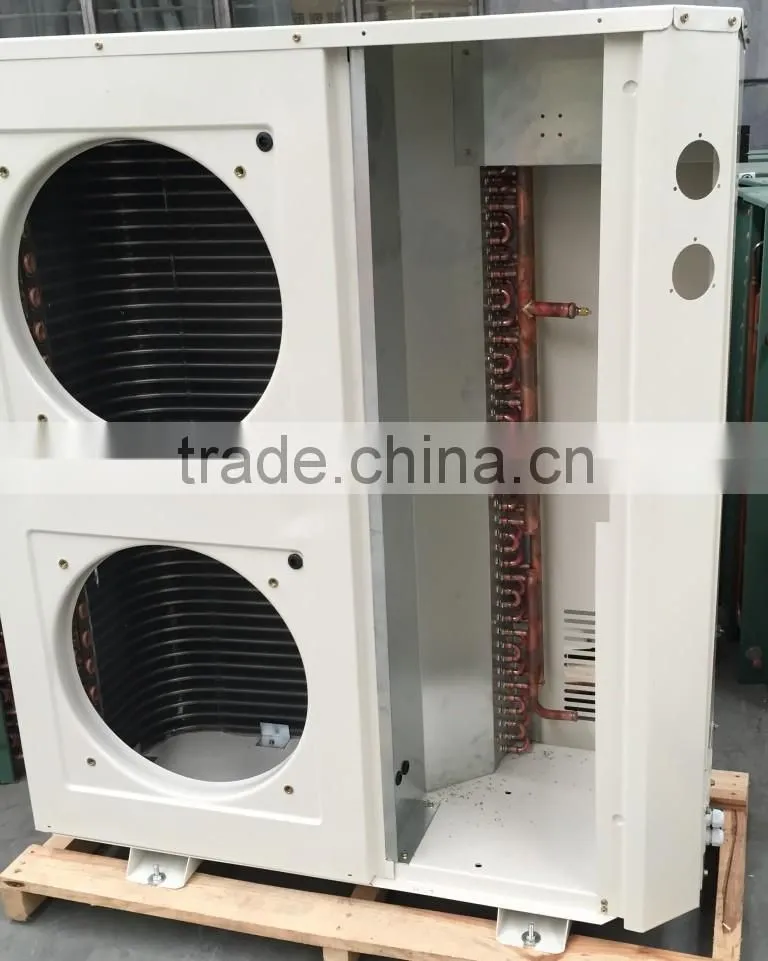

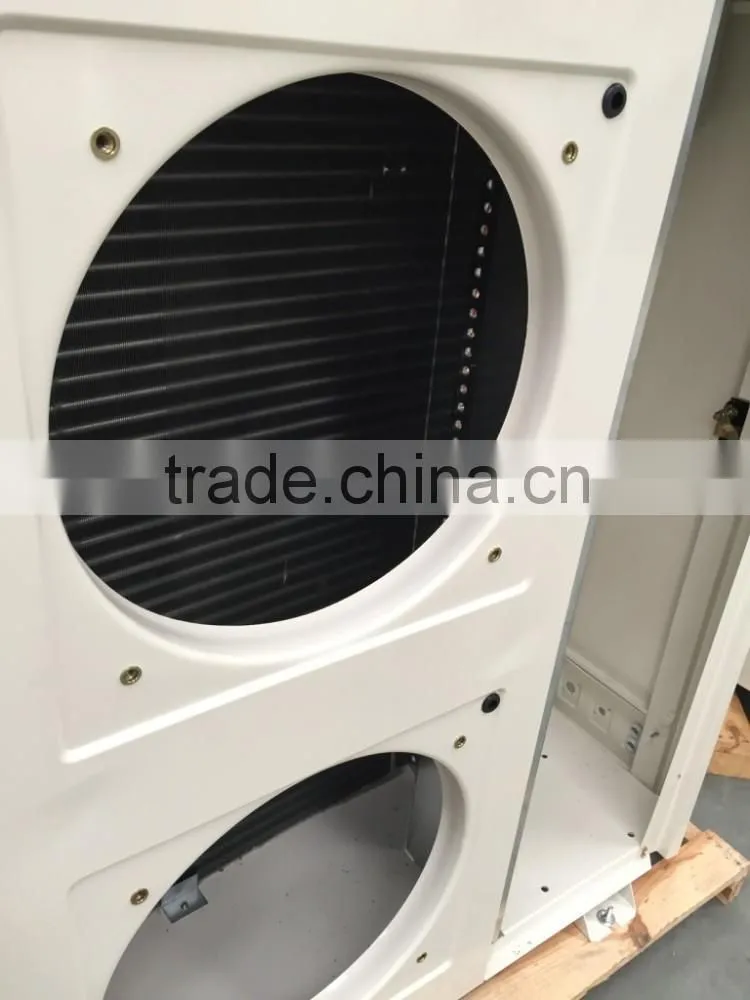

Workshop:

small condensing unitsmall condensing unitsmall condensing unit

small condensing unit



Packaging & Shipping

All the products are packed with wooden case for exporting specially, fumigation is not needed.

We have professional shipping company like MSK, CMA, MSC, CSCL, COSCO, MOL to support us on shipment, ship our products to your hand easily.

small condensing unitsmall condensing unitsmall condensing unit



Company Information

Shanghai EMTH Import & Export Co., Ltd., as the sole agent of Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them. Besides, mushroom is our another product, which mainly includes the Pleurotus Eryngii and seafood mushroom. We produce both the refrigeration equipment and mushroom in large scale.

With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment and mushroom are being exported to countries like the United States, Canada, Germany, middle-east, etc.



Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.



We are sure EMTH will provide best solution for you.



small condensing unitsmall condensing unit

small condensing unitsmall condensing unit



FAQ

Q1: Are you a factory or a trading company?

A1: We are a factory

Q2: Where is your factory located?

 A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.



Q3: Is a sample available?

A3: Yes, but the sample will be at your charge.



Q4: What is the main market for your products?

A4: Our main market is in Middle East, South America, Europe and USA.



Q5: What is your warranty?

A5: We can assure you one year against manufacturing defect.
