Made in China 20mm steel ball 100c6 steel ball solid steel ball
1.Product picture
2.Specifications
Made in China 20mm steel ball 100c6 steel ball solid steel ball
Size |
1~25.4mm |
|||
Grade |
G20-G1000 |
|||
Hardness: |
HRC 60min |
|||
Application: |
Automotive applications, semi-precision bearings, and commercial applications such as castors, locks, drawer slides, bicycles and conveyors. |
|||
Ball Diameter |
Minimum |
Ball Diameter |
Minimum |
|
Case Depth |
2.0-3.0mm |
0.5mm |
9.5-11.0mm |
1.4mm |
3.1-4.5mm |
0.6mm |
11.1-12.5mm |
1.7mm |
|
4.6-5.5mm |
0.8mm |
12.6-14.0mm |
1.8mm |
|
5.6-6.5mm |
0.9mm |
14.1-19.0mm |
1.9mm |
|
6.6-9.5mm |
1.1mm |
19.1-38.0mm |
2.0mm |
|
Chrome stee balls AISI52100
Universal material for ball and roller bearing industry.
Chrome steel balls contain chromium and due to through hardening
has an excellent surface quality and high load bearing.
Hardness: Modern heat treating facilities, complete with controlled
atmosphere and temperature, to maintain excellent hardness
control with a through hardness of HRC 60 to 67.
Size Available: 0.5mm - 102mm (4")
Grade Available: G5, G10 - G1000
Application: Universal for many application. For example: balls &
roller bearings, Linear montion, Balls lead screws, grinding media.
Carbon steel balls AISI1015
Feature: High hardness with a soft core giving
resistance to shock load & excellent resistance
to surface wear.
Hardness: Hardness is HRC 60 min. Reference
the accompanying chart for minimum case
depth.
Size Available: 2.0mm - 50mm (2")
Grade Available: G40 -- G1000
Application: Moderate loads and alow rotating
parts, for example: castors, conveyors, roller
skates, drawer slides, seat slides, bicycles,etc.
440C Stainless Steel:
A martenistictype stainless steel
used extensively in bearing
applications thathardness,
dimensional stability, corrosion
resistance and toughness.
balls are resistant to corrosion
fresh water, steam, crude oil,
gasoline,perspiration, alcohol, blood
and stuffs. 440 is also magnetic.
Size Available: 0.5mm - 102mm (4")
Grade Available: G10 - G1000
304 Stainless Steel
Steel is an austentistic, unhardened
resistance to corrosion by oxidizing
agents,most organic chemicals, food
and sterilizing solutions. It has a
Steel and is slightly magnetic.
Size Available: 0.5mm - 102mm (4")
Grade Available: G100 - G1000
316 Stainless Steel:
316 stainless steel balls provide resistance
tosulfurous acid compounds and other
highly corrosive environments, and
is used in the presence of sulfuric,
phosphoric and acetic acids. It is the
least magnetic of the 300 series.
Size Available: 0.5mm - 102mm (4")
Grade Available: G100 - G1000
carbon content than 302 Stainless

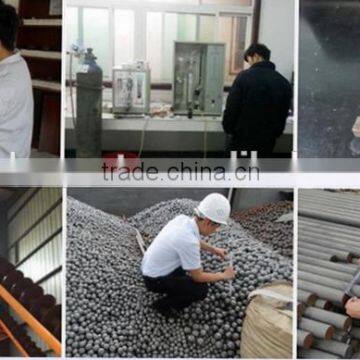

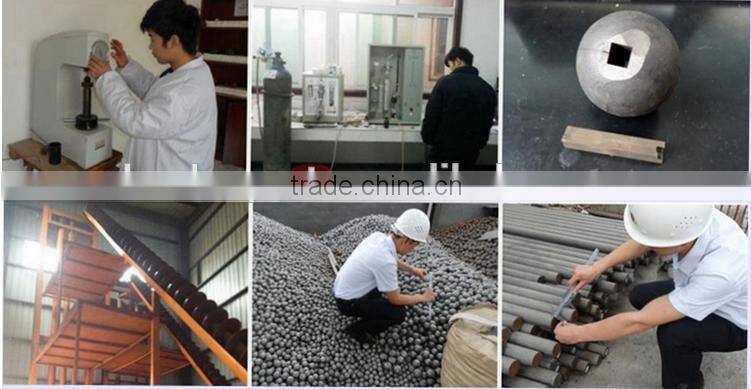

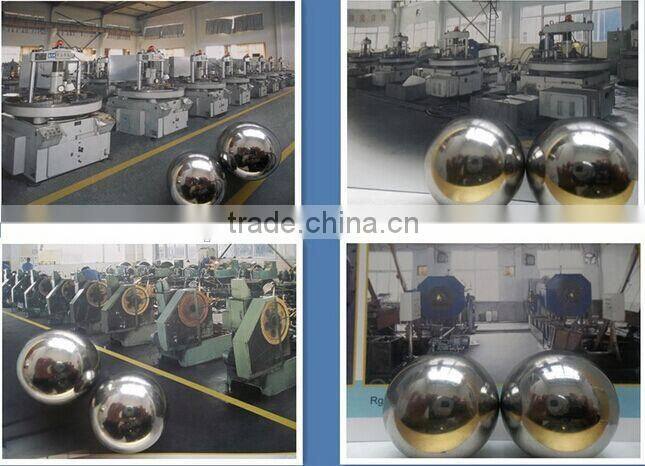

3.Factory Picture:
4.Packing picture
5.Certificate
5.Our Services
| (1).Quality, loyalty and service is our faith! |
| Deemed continuous improvement as our permanent pursuits. |
| (2)Quality control |
| We have introduced many advanced equipments and mature techniques, |
| to meet various of customers’ requirements. High precision, low noise, |
| long-life and excellent reliability are our product’s features. |
| 3.According to the customers' requirments |
| We can adjustment the price according to your market demand’s changes, |
| and also can launch a series of promotional activities in a bad economic environment. |
| 4.After-sale services |
| We will do our best to deal with the problems our customers encountered, |
| in order to ensure our customers' satisfaction and also improve our better reputation. |
