Product Details
Condition | New | Type | Evaporative Air Cooler | |
Place of Origin | Zhejiang, China | Brand Name | RUIXUE | |
Model Number | DL-22.0/105 | Operating Voltage | 380/400 VAC | |
Mounting | Ceiling Mount | Certification | CE | |
After-sales Service Provided | No overseas service provided |
Product Description
Introduction
Model D Series Air cooler/Cooling Fan/ Evaporator is a type of cooling equipment applied to vrious of refrigeratories like frozing, storing and freshing food. Model D series have the three types: DL, DD, DJ, which can meet different requirement on temperature. Model DL applies to 0 degree freshness storehouse. Model DD applies to -18 degree cold storage. Model DJ applies to -25 degree quick-frozen storage.
Feature
1. With reasonable structre, symmetrical forming frosting, highly-effective performance on heat transfer.
2. Assembled with high quality fan and motor, to make sure the low noise, big air volume and stable operation.
3. All the air coolers are tested under 2.5MP pressure, so to make sure they are in high air tightness.
Tech. data:
Model | Ref. capacity (kw) | Cooling area (m²) | Space of fins | Fan | Water Defrost | |||||||
Qty | Dia.(mm) | Air volume(m3) | Pessure(pa) | Power (nxW) | Voltage (V) | Water volume | Water inlet (inch) | Water outlet (inch) | ||||
DD-12.0/60 | 12.0 | 60 | 6 | 2 | 500 | 2x6000 | 167 | 2x550 | 380 | 1.1 | G1 1/2 | G2 1/2 |
DD-15.9/80 | 15.9 | 80 | 2 | 500 | 2x6000 | 167 | 2x550 | 1.3 | ||||
DD-20.0/100 | 20.0 | 100 | 3 | 500 | 3x6000 | 167 | 3x550 | 1.7 | ||||
DD-24.0/120 | 24.0 | 120 | 3 | 500 | 3x6000 | 167 | 3x550 | 2.1 | ||||
DD-28.0/140 | 28.0 | 140 | 4 | 500 | 4x6000 | 167 | 4x550 | 2.5 | ||||
DD-32.1/160 | 32.1 | 160 | 4 | 500 | 4x6000 | 167 | 4x550 | 2.9 | ||||
DD-37.4/200 | 37.4 | 200 | 2 | 600 | 2x10000 | 200 | 2x1500 | 3.5 | G2 | G3 | ||
DD-46.8/250 | 46.8 | 250 | 3 | 600 | 3x10000 | 200 | 3x1500 | 4.2 | ||||
DD-56.2/310 | 56.2 | 310 | 3 | 600 | 3x10000 | 200 | 3x1500 | 5.2 |

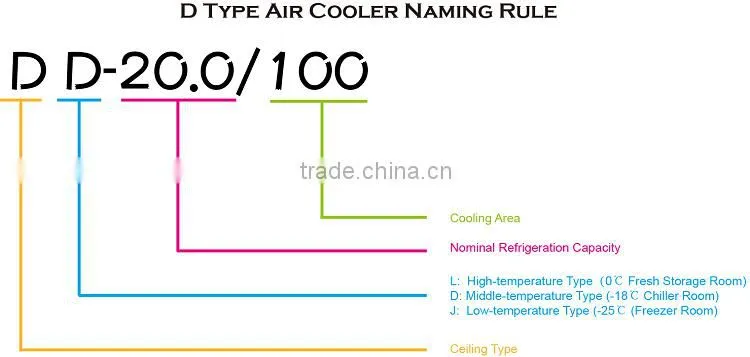

Naming Rule
Workshop
Abroad Exhibition
Packaging & Shipping
We have professional shipping company like MSK, CMA, MSC, CSCL, COSCO, MOL to support us on shipment, ship our products to your hand easily.
All the big products are packed in wooden case for exporting specially, fumigation is not needed.
All the small products are packed in cartons for exporting specially.
Company Information
Shanghai EMTH Import & Export Co., Ltd., as a sole agent of Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in manufacturing air coolers/evaporators, air cooled condensers, air cooled/water cooled condensing units, cold room panels/doors to people who are interested in them. One-stop service is available at our side, that means you will get everything for whole refrigeration system.
With professional technical support, progressive production equipment, together with honesty and concentration, the refrigeration equipments are being exported to countries like the United States, Canada, UK, Ireland, Dubai, Australia, etc.
Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to you!
We are sure EMTH will provide best solution for you!
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou
international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
