Specifications
air charge cooler1. Environmental
2. Easy to fit
3. OEM workable
4. Short delivery time
air charge cooler
1. air charge cooler Introduction:
Model D Series Air cooler/Cooling Fan/Refrigerator Evaporator is a type of cooling equipment applied to vrious of refrigeratories like frozing, storing and freshing food. Model D series have the three types: DL, DD, DJ, which can meet different requirement on temperature. Model DL applies to 0 degree freshness storehouse. Model DD applies to -18 degree cold storage. Model DJ applies to -25 degree quick-frozen storage.
2. air charge cooler Feature:
A. With reasonable structre, symmetrical forming frosting, highly-effective performance on heat transfer.
B. Assembled with high quality evaporator fan, to make sure the low noise, big air volume and stable operation.
C. All the air coolers are tested under 2.5MP pressure, so to make sure they are in high air tightness.
3. air charge cooler Tech. data:
| Model | Ref. capacity (kw) |
Cooling area (m²) |
Space of fins | Fan | Defrost heater | |||||||
| Qty | Dia.(mm) | Air volume(m3) | Pessure(pa) | Power (nxW) |
Power supply | Coil (kw) |
Catchment (kw) |
Power supply | ||||
| DL-2.1/10 | 2.1 | 10 | 4.5 | 1 | 300 | 1700 | 98 | 90 | 220V/380V 50Hz 1PH/3PH |
0.6 | 0.3 | 220V 50HZ 1PH |
| DL-3.1/15 | 3.1 | 15 | 2 | 300 | 2x1700 | 98 | 2x90 | 0.9 | 0.6 | |||
| DL-4.2/20 | 4.2 | 20 | 2 | 300 | 2x1700 | 98 | 2x90 | 0.9 | 0.6 | |||
| DL-5.2/25 | 5.2 | 25 | 2 | 350 | 2x2200 | 98 | 2x140 | 380V 50HZ 3PH |
1.2 | 0.6 | ||
| DL-8.2/40 | 8.2 | 40 | 2 | 400 | 2x3400 | 118 | 2x180 | 1.5 | 0.6 | |||
| DL-11.5/55 | 11.5 | 55 | 2 | 400 | 2x3400 | 118 | 2x180 | 2.1 | 0.6 | |||
| DL-16.7/80 | 16.7 | 80 | 2 | 500 | 2x6000 | 167 | 2x550 | 3.0 | 0.6 | |||
| DL-22.0/105 | 22.0 | 105 | 2 | 500 | 2x6000 | 167 | 2x550 | 4.2 | 0.6 | |||
| DL-25.8/125 | 25.8 | 125 | 3 | 500 | 3x6000 | 167 | 3x550 | 4.8 | 0.8 | |||
| DL-35.6/160 | 33.6 | 160 | 3 | 500 | 3x6000 | 167 | 3x550 | 6.0 | 0.8 | |||
| DL-38.7/185 | 38.7 | 185 | 4 | 500 | 4x6000 | 167 | 4x550 | 7.5 | 1 | |||
| DL-44.0/210 | 44.0 | 210 | 4 | 500 | 4x6000 | 167 | 4x550 | 8.0 | 1 | |||
| DL-52.9/260 | 52.9 | 260 | 2 | 600 | 2x10000 | 200 | 2x1100 | 10.0 | 2 | |||
| DL-67.2/330 | 67.2 | 330 | 3 | 600 | 3x10000 | 200 | 3x1100 | 12.0 | 2 | |||
| DL-83.4/410 | 83.4 | 410 | 3 | 600 | 3x10000 | 200 | 3x1100 | 14.0 | 2.6 | |||

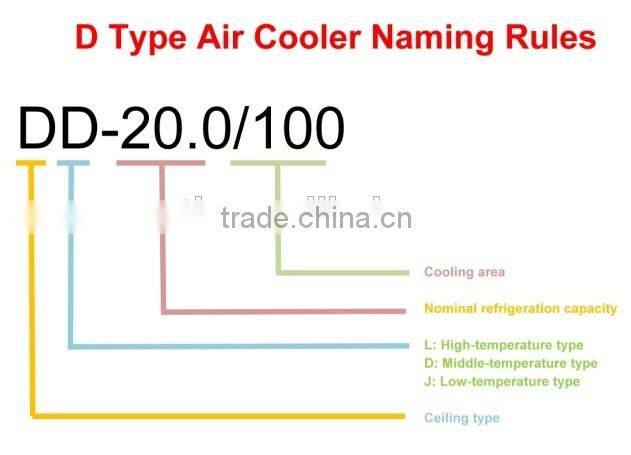

4. air charge cooler Naming rule:

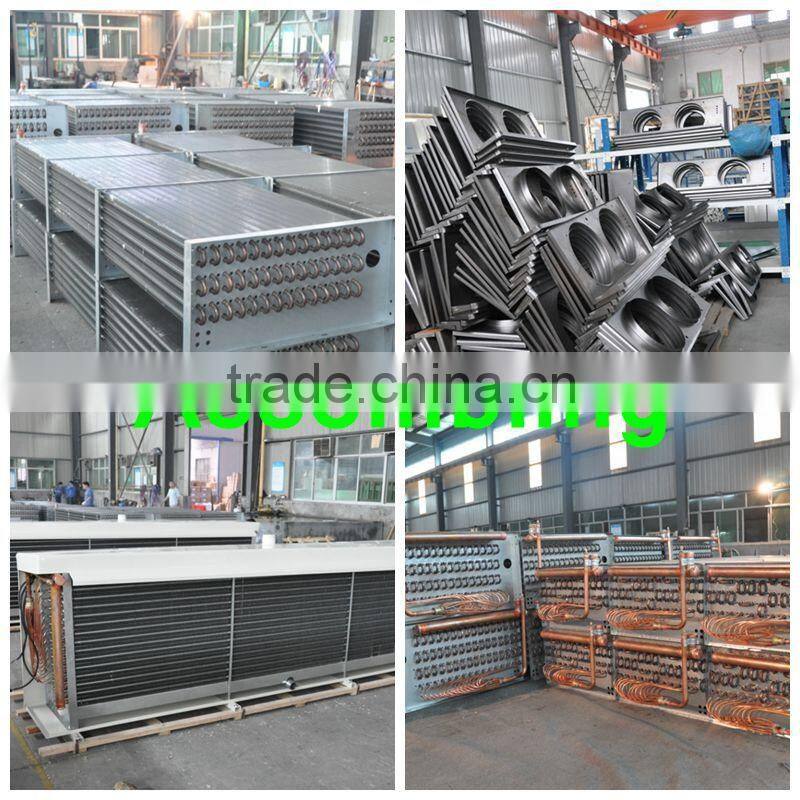

5. air charge cooler Workshop:
6. Exhibition in Germany,Beijing 2014:
7. Company Information:
Shanghai EMTH Import & Export Co., Ltd., belongs to Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them. Besides, mushroom is our another product, which mainly includes the Pleurotus Eryngii and seafood mushroom. We produce both the refrigeration equipment and mushroom in large scale.
With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment and mushroom are being exported to countries like the United States, Canada, Germany, middle-east, etc.
Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.
We are sure EMTH will provide best solution for you.
8.Certificates:
9. FAQ:
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
