Light steel structure prefabricated warehouse workshop building drawing low cost
Production Description

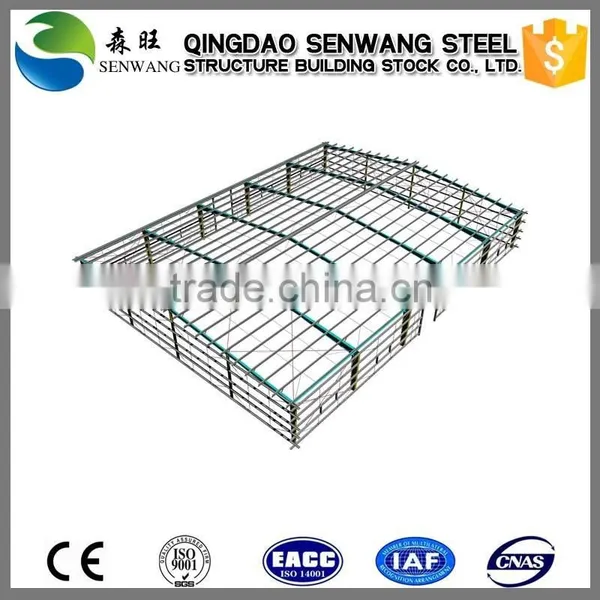

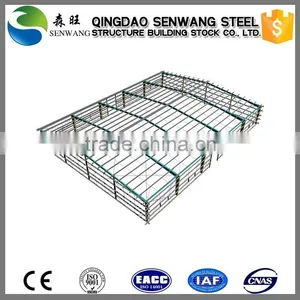

Main structure |
Welded H Section or Hot rolled H section steel, Q235, Q345 |
Purlin |
C Section or Z Section, Q235 |
Roof/Wall Cladding |
Corrugated plate,PU,EPS,Rock Wool,Fiber Glass sandwich panel |
Tie bar |
Q235 Round Steel Tube |
Brace |
Q235 angle steel, round bar or steel pipe |
Knee Brace |
Q235 Angle Steel |
Roof Gutter |
Color Steel Sheet |
Rain spout |
PVC Pipe |
Door |
Sliding Sandwich Panel Door or Metal rolling door |
Windows |
PVC/Plastic Steel/Aluminum Alloy Window |
Connecting |
High Strengthen Bolts, Normal bolts with nuts |
Packing |
As per your request, loaded into 40’GP/OT, 20’GP, 40’HQ |
Drawing |
We can make the design and quotation according to your detailed conditions or as per your drawin |

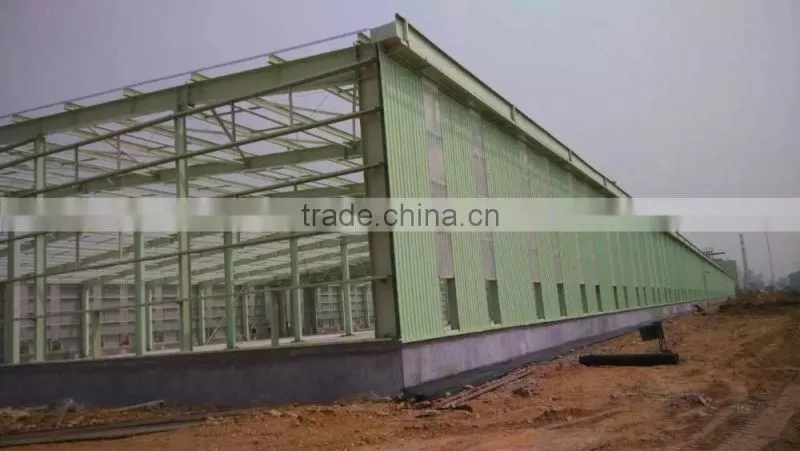

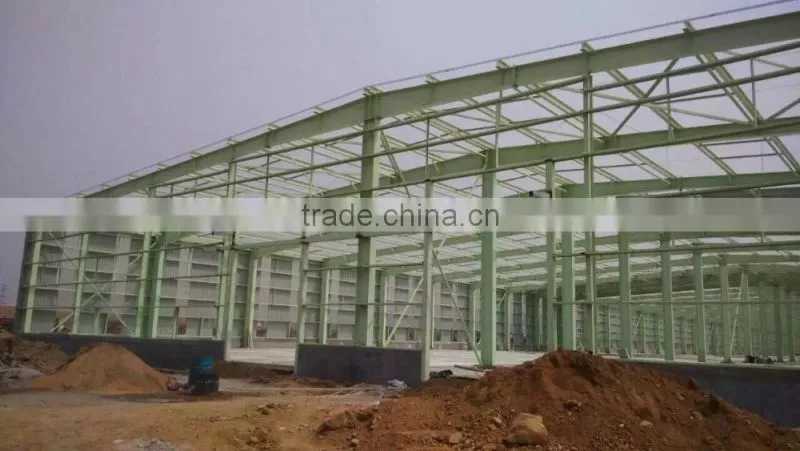

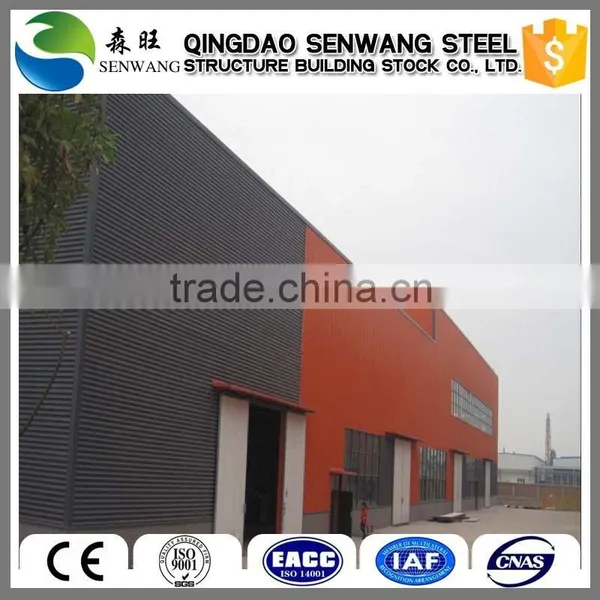

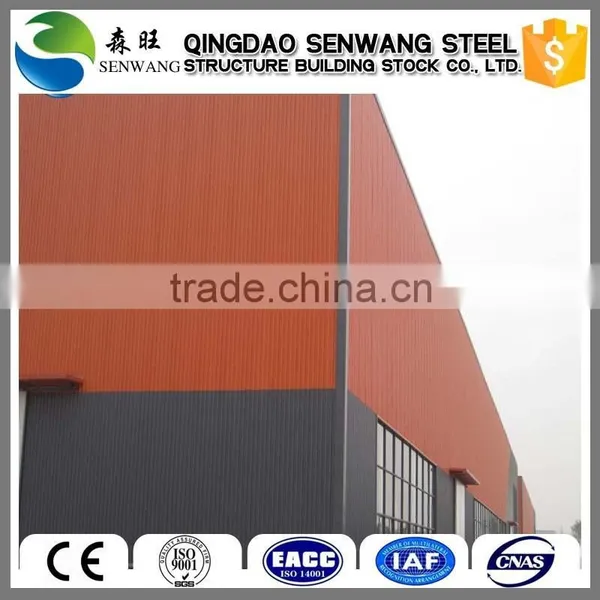

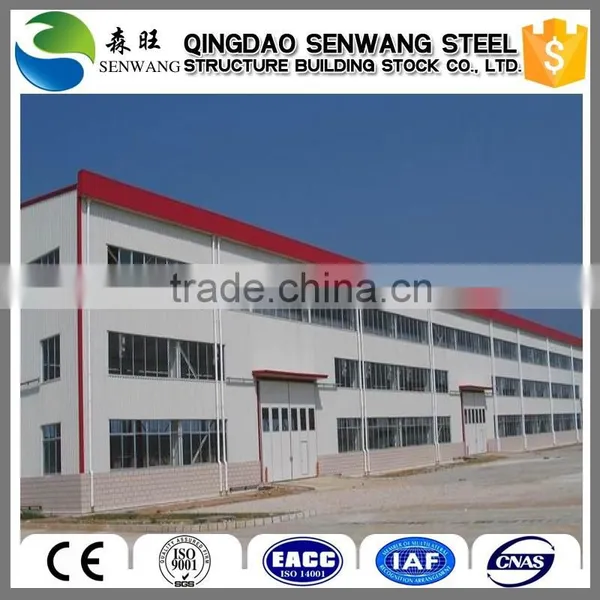

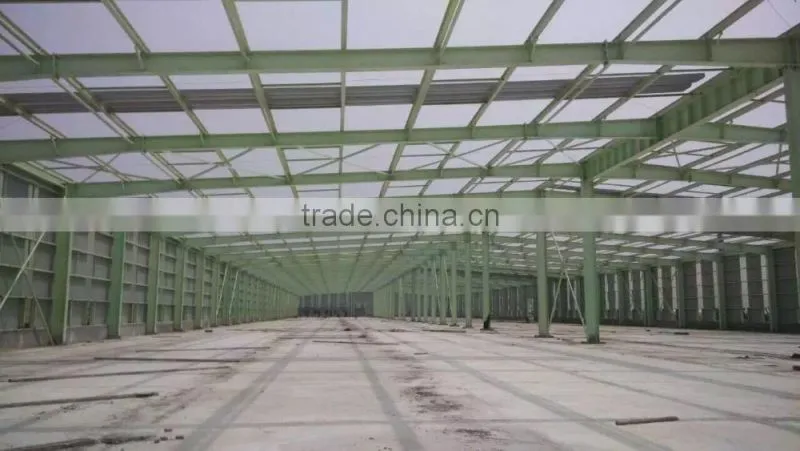

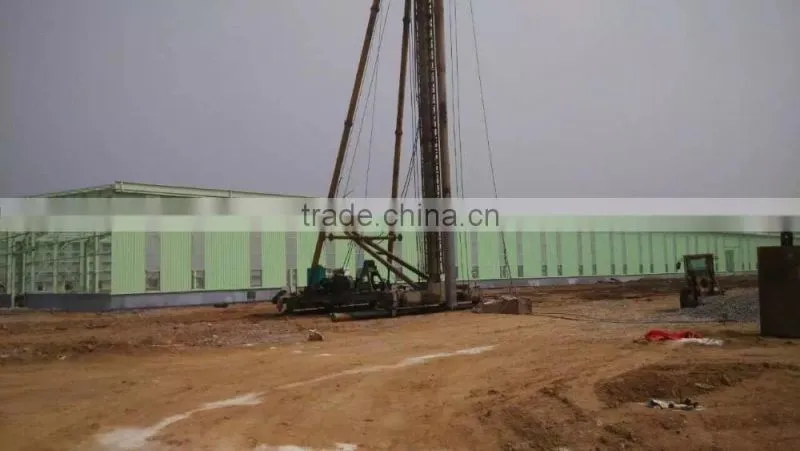

Workshop project showing
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Shot Blasting Machine | QHQ6910 | 1 | 3.0 | Acceptable |
| C-beam Forming Machine | No Information | 1 | 3.0 | Acceptable |
| Corrugated Plate Forming Machine | 820 | 1 | 3.0 | Acceptable |
| Complex Tile Press Machine | 840/900 | 1 | 3.0 | Acceptable |
| Cutting Machine | No Information | 2 | 3.0 | Acceptable |
| Shearing Machine | QC12Y16X2500 | 1 | 3.0 | Acceptable |
| Bending Machine | WC67Y1200X320 | 1 | 3.0 | Acceptable |
| Drilling Machine | Z3050X16/1 | 1 | 3.0 | Acceptable |
| H-beam Assembling Machine | HG1800 | 1 | 3.0 | Acceptable |
| CNC Flame Cutting Machine | HWHG5011 | 3 | 3.0 | Acceptable |
| H-beam Straightening Machine | W800XL18000 | 1 | 3.0 | Acceptable |
| Gantry Welding Machine | ZP-SUBA2000 | 2 | 3.0 | Acceptable |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Micrometer | SHANFENG | 2 | 2.0 | Acceptable |
| Welding Tester | KH45B | 2 | 2.0 | Acceptable |
| Vernier Caliper | SHANGGONG | 2 | 2.0 | Acceptable |
| Film Thickness Tester | ET820 | 2 | 2.0 | Acceptable |
1. We have a group of professional engineers, most of whom has more than 10 years’ experiences in architecture field.
2. Established for more than ten years, our company has got a various of experiences in design, manufacture, installation and so on. The work staffs have excellent skills. Some of them had helped customers to install the warehouse around the world.
3. We also have possessed more than 80 sets of large precise and domestically advanced processing equipments, including large gantry planning machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and so on.
4. Besides manufacture according to customers' requirements, we also established a set of production standards. With perfect technique, excellent quality, reasonable price, top-grade services, we have won the favor of lots of customers at home and abroad.
5. "Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choice; we'll give you a satisfied answer.
we are big group factory and have more than 25 years experience of steel structure workshope project The first design&Engineering Service,Excellent product and perfect Has won the praise of customers and want to cooperation with more and more friends and customer add us team .
1. Speed of construction and camp installation Allows for the building and the site work to be completed simultaneously, reducing the overall completion schedule, all the Main Structures will be connect with bolts, no welding works. All the wall and roof structure, flooring will be fixed by Self-tapping Screw or nails, normal Carpenter team could make a good job!
2. Economical Solution, compare to concrete building, prefabricated building will be much more Economical
3. Ability to service remote locations Assembling a work camp close to the work site reduces travel time which reduces cost.
4. Long time span Well-built modular worker camps can last for 10, 15 or 20 years or more.
5.Safe and stable, Earthquake resistance: Grade 7, Wind resistance: Grade 11(wind speed≤ 120km/h)
Our service
1. Professional design and engineering team
Full solution for house design. We could make the design for whole house as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building
We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision
We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.
