air cooled condenser price
1. Introduction:

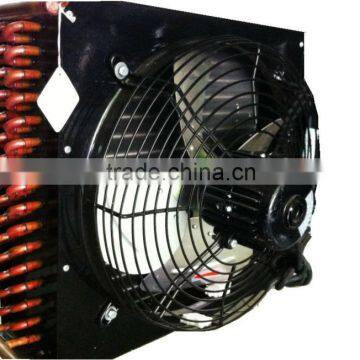

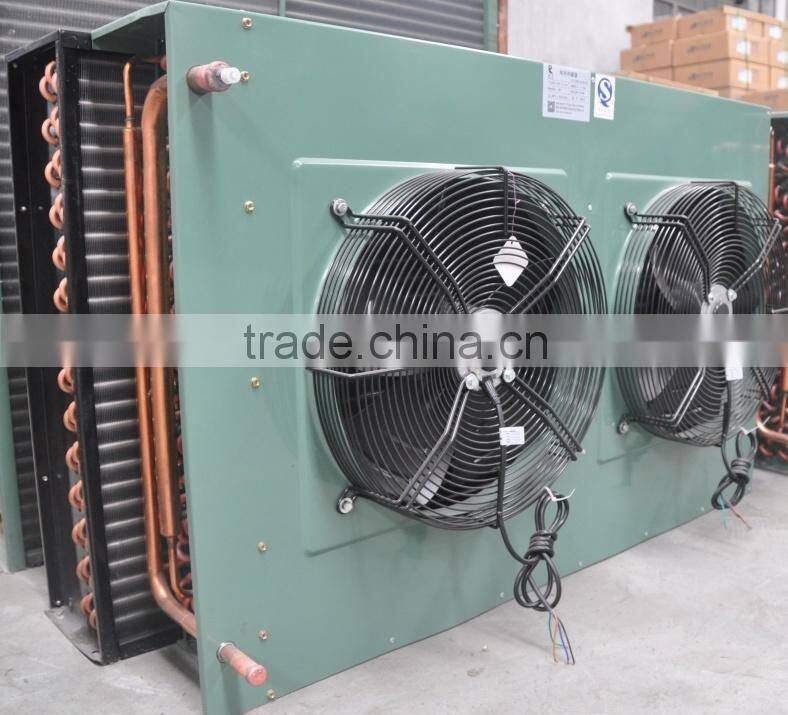

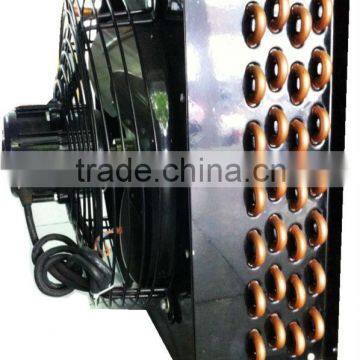

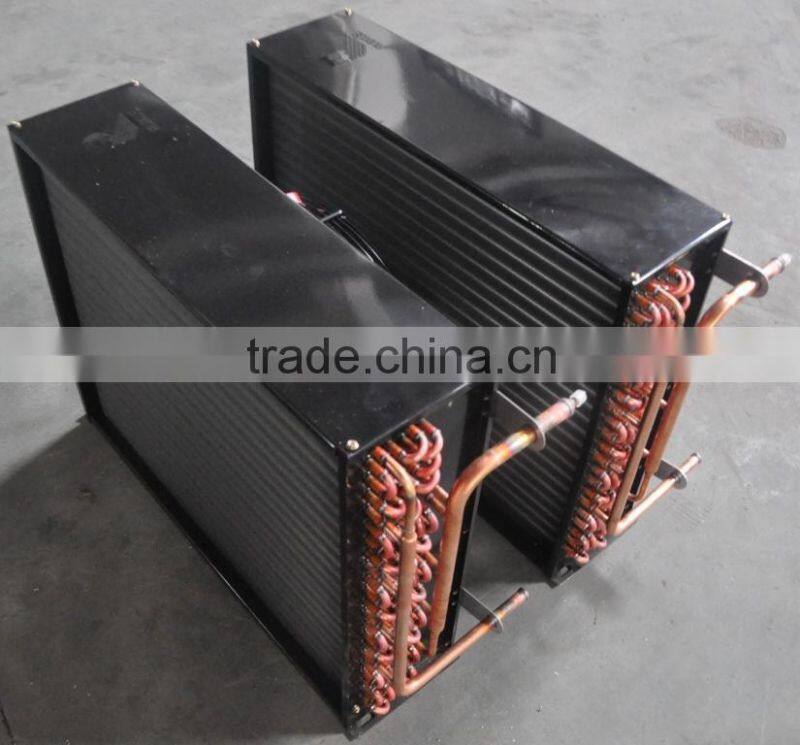

Air cooled condenser is a kind of radiating facility work for refrigeration equipment, whose medium is air. We have three types available, H, V, W. Model FNH is side blown, FNV & FNW is top blown.

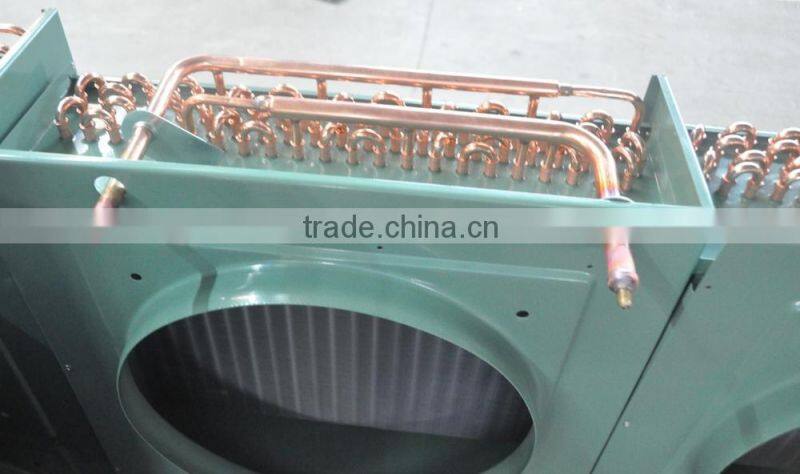

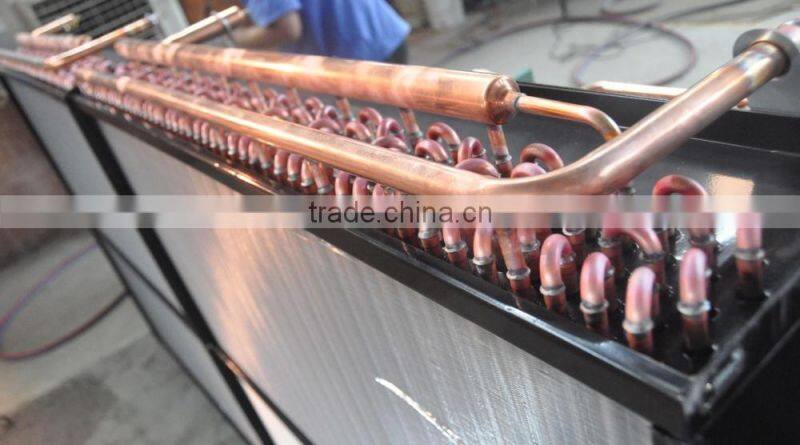

Blue aluminum Fin,fin space 2.83/3.17mm.1mm or 1.2mm galvanized steel casing,black color paint,anti-corrosion.U side tube and piping side all black paint.diameter 9.52mm copper tube,thickness 0.30 or 0.35mm,tube space 21.65*25mm,with or without axial fan motors,used for cold room,display showcase,ice macking machine,chiller,commerical refrigeration.High quality welding,no leakage.Accept customized drawing.European quality&reasonable prices.
2. Feature:
1. Can be used widely.
2. Excellent corrosion resistance, with beatiful appearance.
3. In stable performance.
4. Customizable.
3. Tech.data:
| Model | Heat exchange (kw) |
Surface (m²) |
Fan | Intake-tube (mm) |
Drainpipe (mm) |
||||
| Qty | Dia (mm) |
Air volume (m³/h) |
Power (W) |
Power supply | |||||
| FNHC-25-3 | 6.6 | 25 | 1 | 400 | 3400 | 180 | 380V 3PH 50HZ |
19 | 16 |
| FNHC-35-4 | 9.1 | 35 | 1 | 450 | 4800 | 250 | 19 | 16 | |
| FNHC-41-5 | 10.8 | 41 | 1 | 500 | 6500 | 450 | 22 | 19 | |
| FNHC-55-8 | 14.5 | 55 | 1 | 550 | 87000 | 600 | 25 | 19 | |
| FNHC-80-10 | 21.0 | 80 | 2 | 500 | 13000 | 2x450 | 25 | 19 | |
| FNHC-110-115 | 28.8 | 110 | 2 | 550 | 17400 | 2X600 | 28 | 22 | |
4. Naming rule:

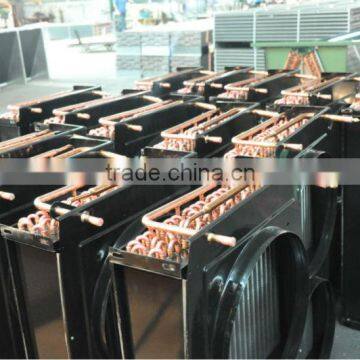

5. Workshop:
All the products are packed with wooden case for exporting specially, fumigation is not needed.
We have professional shipping company like MSK, CMA, MSC, CSCL, COSCO, MOL to support us on shipment, ship our products to your hand easily.
Shanghai EMTH Import & Export Co., Ltd., as a sole agent of Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them.
With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment are being exported to countries like the United States, Canada, Germany, middle-east, etc.
Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.
We are sure EMTH will provide best solution for you.
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
