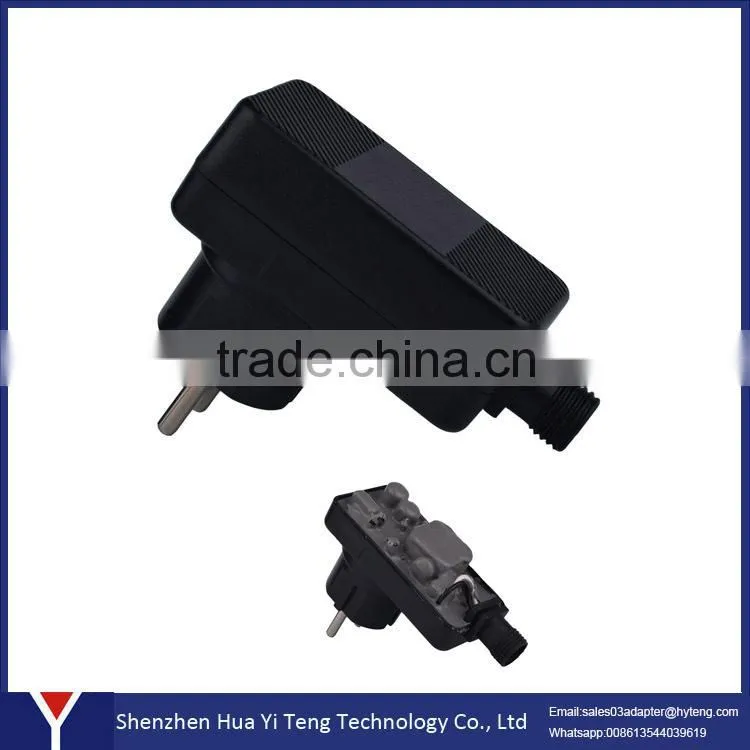

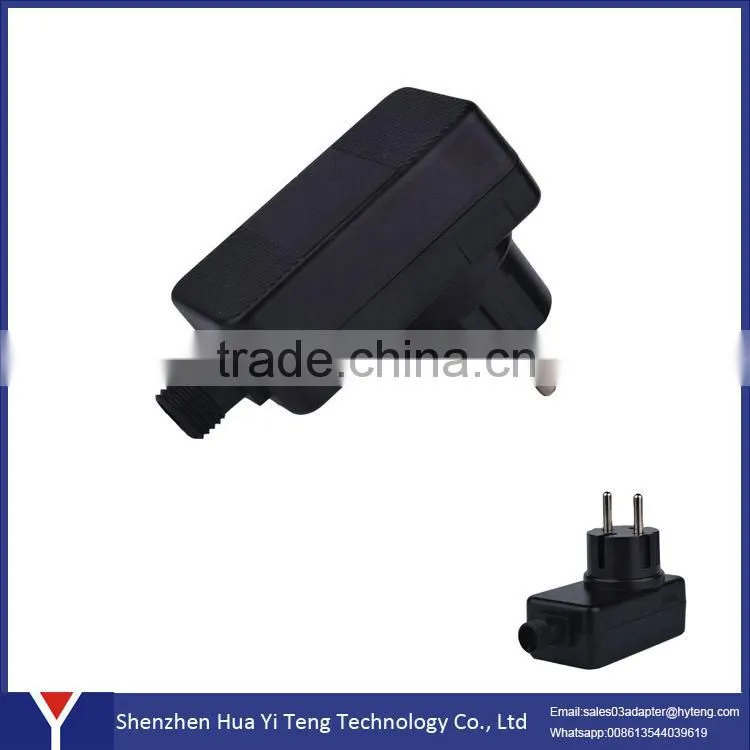

Factory universal Waterproof ac dc 1A 12v power adapter
- 100000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Hua Yi Teng | Model Number: | Power Adapter |
Output Type: | DC | Connection: | Plug In |
Product Description
Related Power Adapter Maybe You Like
Specification
Technical Specification | Input Voltage | AC 100-240V |
Input Frequency | 50Hz/60Hz | |
Input Current | ≤0.4A(AC Input Voltage 100V) | |
Dash Current | ≤35A(AC Input Voltage 240V) | |
Power Factor | ≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω) | |
Efficiency | ≥82.96% at rated voltage | |
Output Voltage | 12V±5% | |
Output Rated Current | 1A | |
Rated Power | 12W | |
Ripple Noise | ≤200mV | |
Start Delay Time | ≤3S(under the Iput-voltage of AC110V) | |
Working Temperature | 0℃ to 40℃ | |
Storage Temperature | -20℃ to 70℃ | |
Humidity | 5%-95%(under the condition of non-concentrated) | |
Atmospheric Pressure | 70 — 106Mpa | |
Hi-pot Test | AC 3000V(Min), 3S, leakage Current≤5mA | |
Insulation Resistance | ≥10MΩ (Test condition: standard atmospheric pressure, humidity 90%, DC500V) | |
Certificate | CE, FCC, ROHS, SAA, CB, GS, KC | |
Warranty | 2 years | |
Feature | IC Program Design with low power consumption | |
100% aging test | ||
MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217) |
Packaging and Shipping
SHENZHEN HUA YI TENG TECHNOLOGY CO.,LTD is an integrated high-tech enterprise which includes R&D,
Productionand Sales.Our main products are Power Adapter, Charger, Water-proof Power Supply, Industrial Power Supply, Which could be applied in the field of LCD, LCTV, Tablet PC, Communications,Portable Product,
POS Terminal, Audio Equipment, Fan, LED Light, Security Product and kinds of Small Household Appliance, etc.
It covers an area of three thousand square meters and we have more than one hundred trained, skilled worker
and rich experienced R&D team to support you.
We will always follow the business philosophy of Creating Value for Customers, Creating Opportunities for Employees,Creating Benefits for Society. If possible, you will definitely enjoy excellent and high-efficient
before-sale and after-sale service from us.
Most of our products have been certificated by CE, FCC,ROHS, SAA,CB,GS, KC. Besides, OEM is also available!
