CN 8W Plug In Connection and DC Output Type Switching Adapter

FOB Price

USD $1.55 - $2 / Piece

100 Pieces(Min.Order)

Product Details

Place of Origin:	China	Brand Name:	HUA YI TENG	Model Number:	HYT******
Output Type:	DC	Connection:	Plug In

Description of CN 8W Plug In Connection and DC Output Type Switching Adapter

Technical Specification	Input Voltage	AC 100-240V
	Input Frequency	47Hz~63Hz
	Input Current	<400mA(Max)
	Dash Current	≤50A(AC Input Voltage 240V)
	Power Factor	≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω)
	Efficiency	≥76% at rated voltage
	Output Voltage	5V±5%
	Output Rated Current	1.5A
	Rated Power	7.5w
	Ripple Noise	≤120mV
	Start Delay Time	≤3S(under the Iput-voltage of AC110V)
	Working Temperature	0℃ to 45℃
	Storage Temperature	-40℃ to 70℃
	Test Temperature	25±10℃
	Humidity	5%-93%(under the condition of non-concentrated)
	Atmospheric Pressure	70 — 106Mpa
	Hi-pot Test	AC 3000V(Min), 3S, leakage Current≤5mA
	Insulation Resistance	≥10MΩ (standard atmospheric pressure, humidity 90%, DC500V)
Certificate	CE, FCC, ROHS, SAA, CB, GS, KC
Warranty	2 years
	IC Program Design with low power consumption
	100% Aging Test; Virbration Test; Plug-in and Plug-out Test; ESD Test; Falling Test
Feature	IC Program Design with low power consumption
	100% aging test
	MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217)

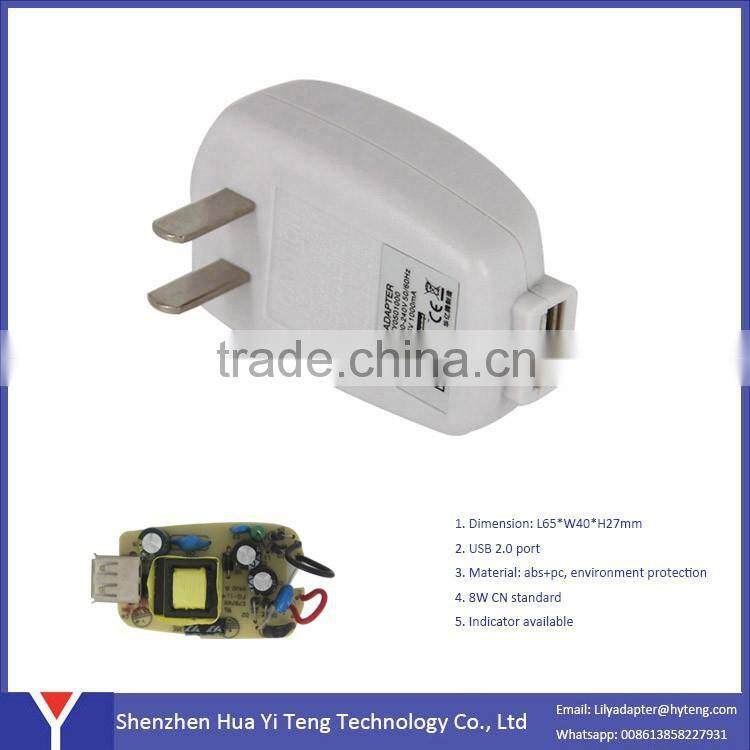

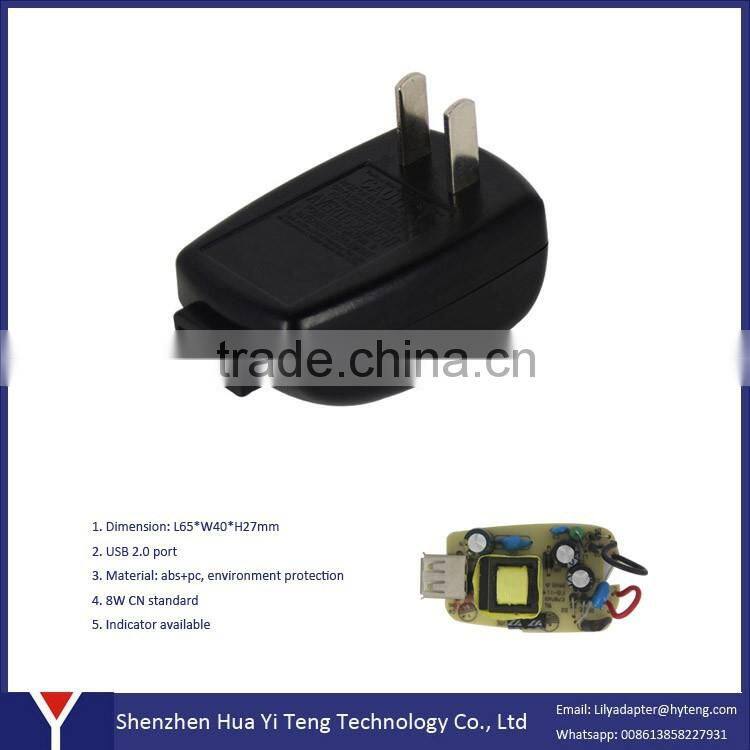

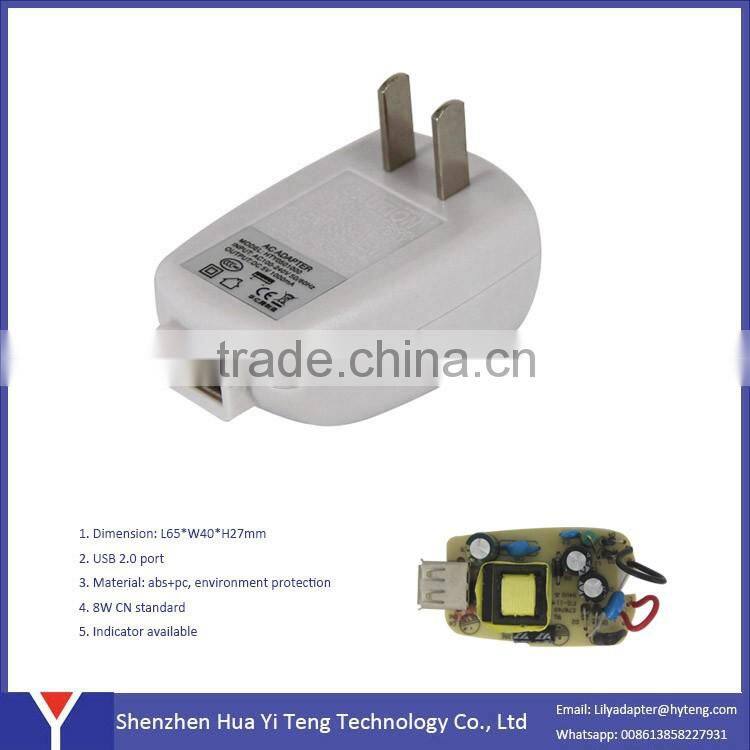

Detailed Pictures about CN 8W Plug In Connection and DC Output Type Switching Adapter

Shenzhen Hua Yi Teng Technology Co., Ltd.: Contact namexinhua liu; Phone86-0755-84099039; Address1 Building, Xinwei Industrial Area, NO.23, Xihutang Street, Pingdong Community, Longgang District, Shenzhen, China Shenzhen,Guangdong
