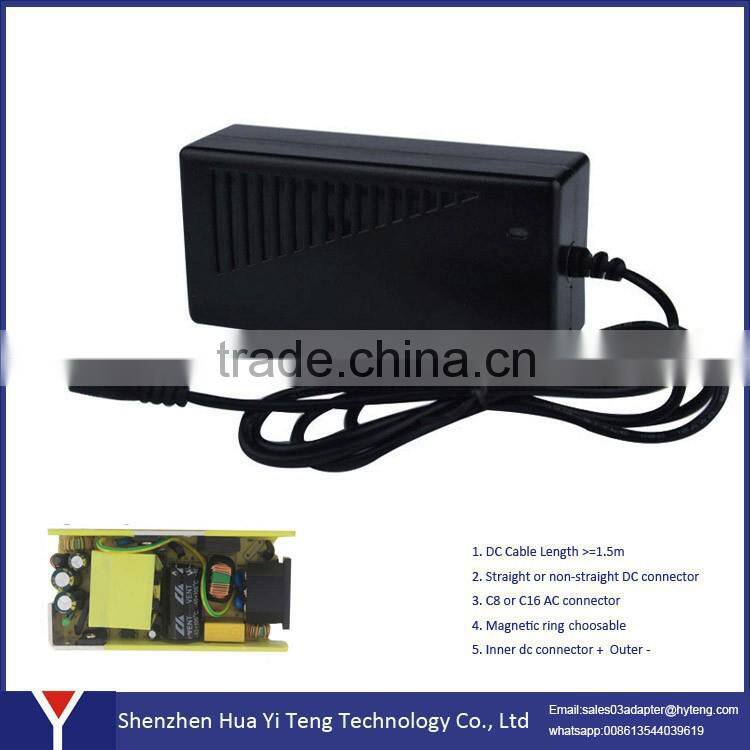

12V 5a desktop ac dc power adapter 60w

Name: 12V 5a desktop ac dc power adapter 60w
Brand: Hua Yi Teng
Availability: InStock

FOB Price

US$ 5.2 - 6 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Related Power Adapter

Specification

Technical Specification	Input Voltage	AC 100-240V
	Input Frequency	50Hz/60Hz
	Input Current	≤1.3A(Max) at AC 100V
	Dash Current	≤50A(AC Input Voltage 240V)
	Power Facter	≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω)
	Efficiency	≥87% at rated voltage
	Output Voltage	12V±5%
	Output Rated Current	5A
	Rated Power	60W
	Ripple Noise	≤120mV
	Start Delay Time	≤3S(under the Iput-voltage of AC110V)
	Working Temperature	0℃ to 40℃
	Storage Temperature	-20℃ to 75℃
	Humidity	5%-95%(under the condition of non-concentrated)
	Hi-pot Test	AC 3000V(Min), 3S, leakage Current≤5mA
	Insulation Resistance	≥10MΩ (Test condition: standard atmospheric pressure, humidity 90%, DC500V)
Certificate	CE, FCC, ROHS, SAA, CB, GS, KC
Warranty	2 years
Feature	IC Program Design with low power consumption
	100% aging test
	MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217)
