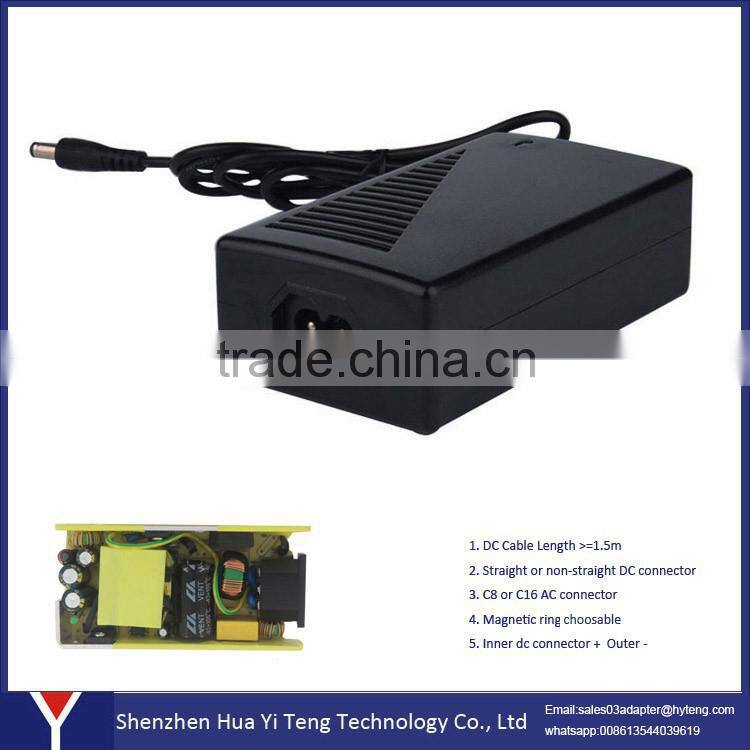

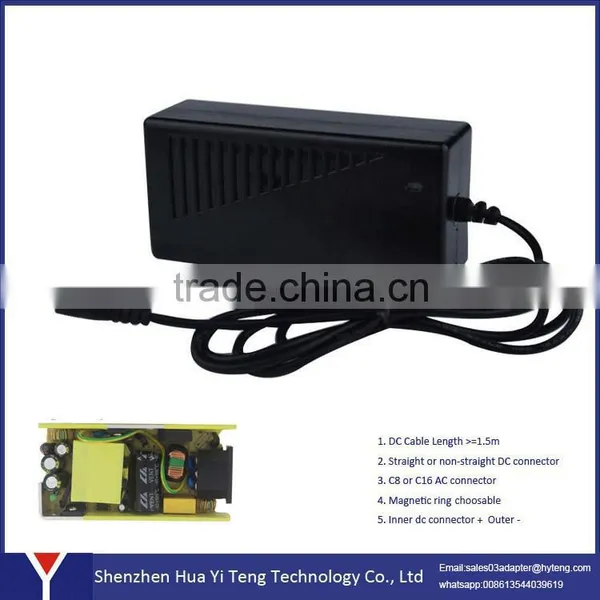

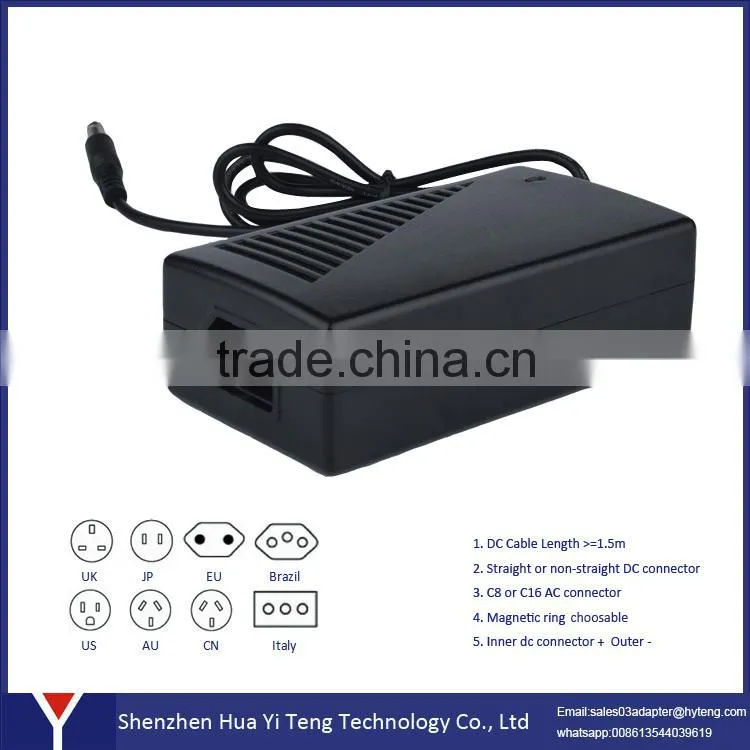

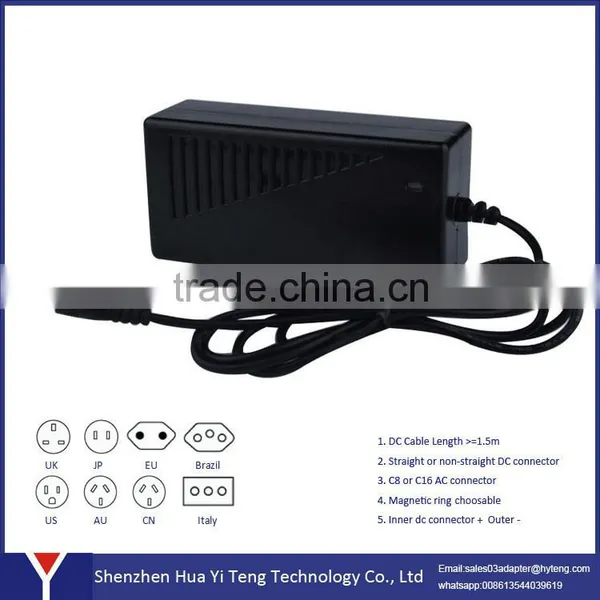

AC/DC 12V power adapter 12V 4A 5A 6A power supply for LCTV

FOB Price

USD $5.4 - $7.5 / Piece

100 Pieces(Min.Order)

Product Details

Place of Origin:	China	Brand Name:	Hua Yi Teng	Model Number:	Power Adapter
Output Type:	DC	Connection:	Plug In

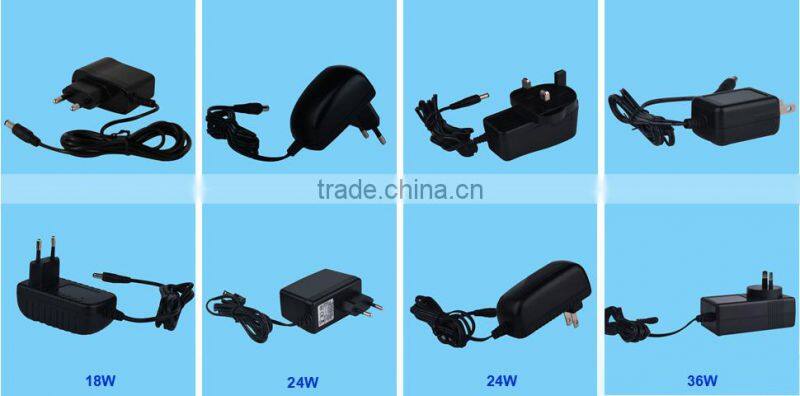

Related Power Adapter

Product Description

Specification

Technical Specification	Input Voltage	AC 100-240V
	Input Frequency	50Hz/60Hz
	Input Current	≤1.3A(Max) at AC 100V
	Dash Current	≤50A(AC Input Voltage 240V)
	Power Facter	≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω)
	Efficiency	≥87% at rated voltage
	Output Voltage	12V±5%
	Output Rated Current	5A
	Rated Power	60W
	Ripple Noise	≤120mV
	Start Delay Time	≤3S(under the Iput-voltage of AC110V)
	Working Temperature	0℃ to 40℃
	Storage Temperature	-20℃ to 75℃
	Humidity	5%-95%(under the condition of non-concentrated)
	Hi-pot Test	AC 3000V(Min), 3S, leakage Current≤5mA
	Insulation Resistance	≥10MΩ (Test condition: standard atmospheric pressure, humidity 90%, DC500V)

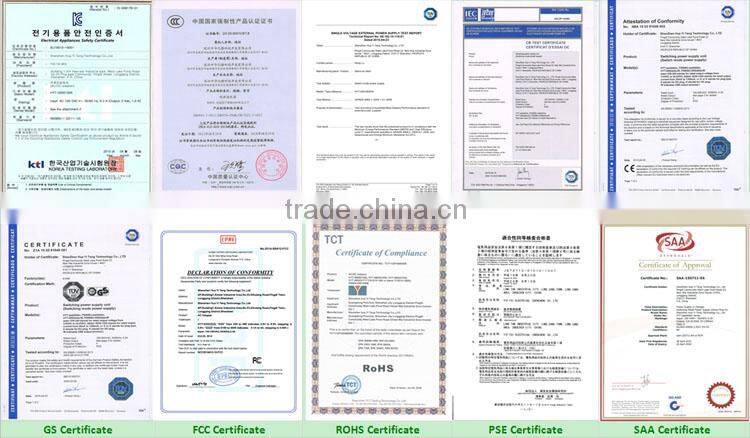

Certificate	CE, FCC, ROHS, SAA, CB, GS, KC
Warranty	2 years
Feature	IC Program Design with low power consumption
	100% aging test
	MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217)

Our Services

Packaging & Shipping

Application

Shenzhen Hua Yi Teng Technology Co., Ltd.: Contact namexinhua liu; Phone86-0755-84099039; Address1 Building, Xinwei Industrial Area, NO.23, Xihutang Street, Pingdong Community, Longgang District, Shenzhen, China Shenzhen,Guangdong
