Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > 30w AC DC Power Adapter
US$ 3.4 - 5.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hua Yi Teng
Model Number:
30w
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Power Adapter Notebook Charger AC Adapter Laptop Adapter 72 WattsUS$ 5.2 - 6MOQ: 100 Pieces -
12V 24V Desktop ac dc Poer Adapter 60wUS$ 5.2 - 6MOQ: 100 Pieces
-
36w 12v 3a Switching Powe Supply With 3 PinsUS$ 3.1 - 4.5MOQ: 100 Pieces
-
Ac/ dc Power Adapter 12v 4a 48w Constant Voltage Power Supply for Digital ProductsUS$ 4.6 - 5.1MOQ: 100 Pieces
-
Universal Destop 12v 3a Ac/dc Power Supply for Digital ProductsUS$ 3.1 - 4.5MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Hua Yi Teng
Model Number
30w
Output Type
DC
Connection
Plug In

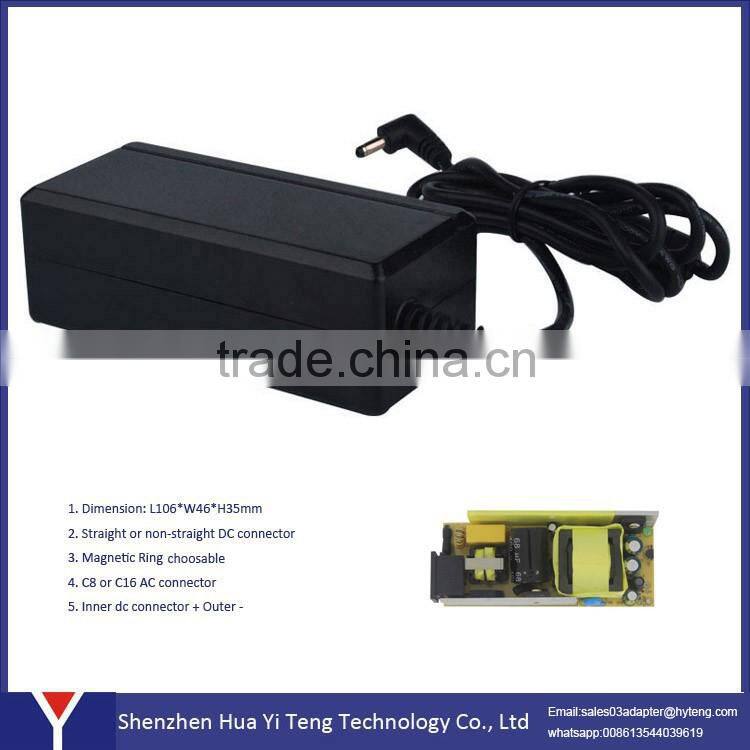

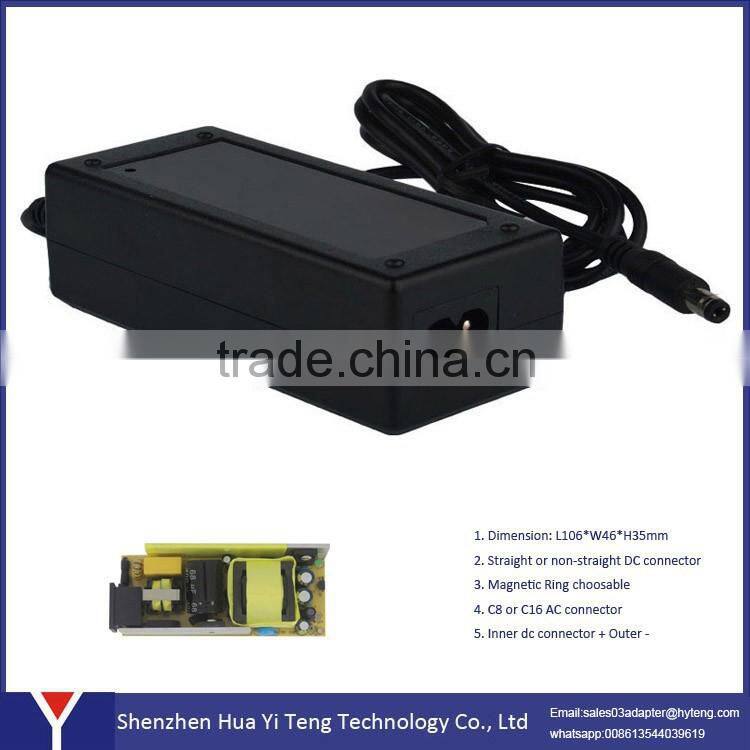

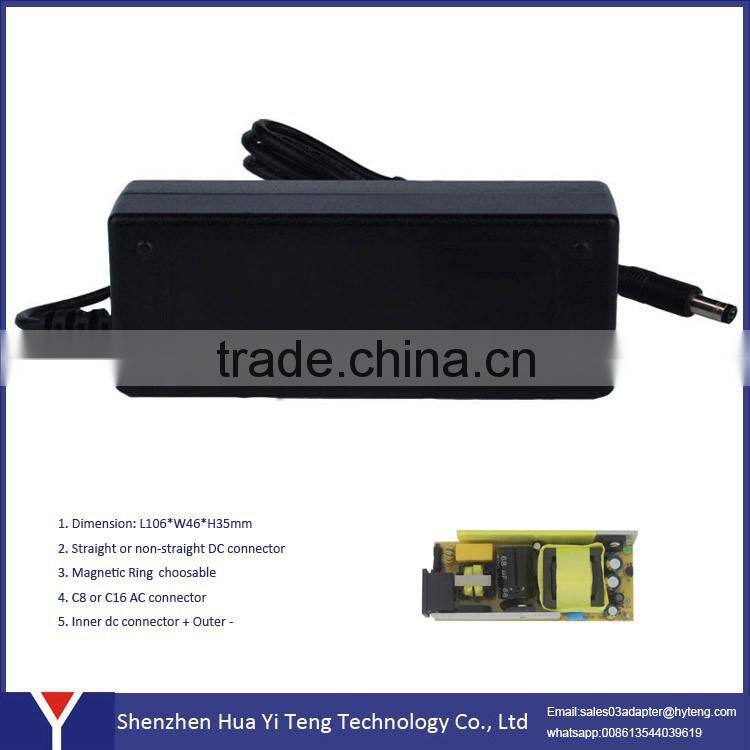

Product Description
Specification
| Technical Specification | Input Voltage | AC 100-240V |
| Input Frequency | 50Hz/60Hz | |
| Input Current | ≤0.8A(AC Input Voltage 100V) | |
| Dash Current | ≤50A(AC Input Voltage 240V) | |
| Power Facter | ≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω) | |
| Efficiency | ≥82.96% at rated voltage | |
| Output Voltage | 15V±5% | |
| Output Rated Current | 2A | |
| Rated Power | 30W | |
| Ripple Noise | ≤120mV | |
| Start Delay Time | ≤3S(under the Iput-voltage of AC110V) | |
| Working Temperature | 0℃ to 40℃ | |
| Storage Temperature | -40℃ to 70℃ | |
| Humidity | 5%-95%(under the condition of non-concentrated) | |
| Hi-pot Test | AC 3000V(Min), 3S, leakage Current≤5mA | |
| Insulation Resistance | ≥7MΩ (Test condition: standard atmospheric pressure, humidity 90%, DC500V) | |
| Certificate | CE, FCC, ROHS, SAA, CB, GS, KC | |
| Warranty | 2 years | |
| Feature | IC Program Design with low power consumption | |
| 100% aging test | ||
| MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217) | ||
