Specifications
Laser Level Measure
Laser Level Measurement
CE ISO ROHS Certificate

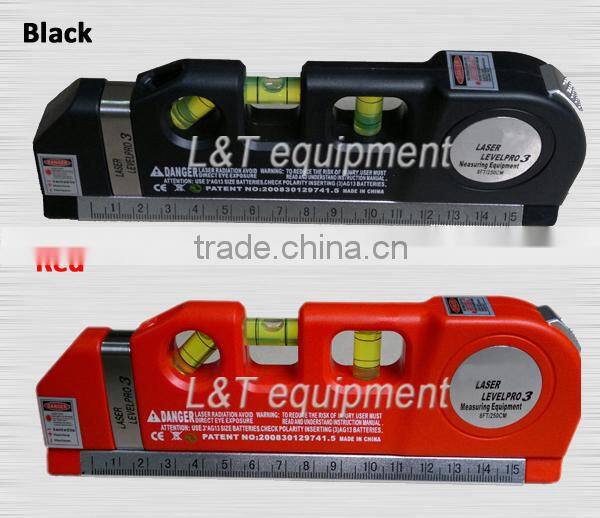

Sample Picture
Battery Installation
- Locate the battery compartment near the Power Switch
- Remove the screw on the battery compartment cover to remove the cover.
- Insert 3 x LR44/AG13 sized cell button batteries while paying attention to the polarity directions indicated inside the compartment.
Note: Fold the piece of cloth in the battery compartment under the batteries and then over, after insert. So that you can easily remove the batteries the next time you need to remove them.
4. Close the battery and insert back the screw.
Operation Instructions

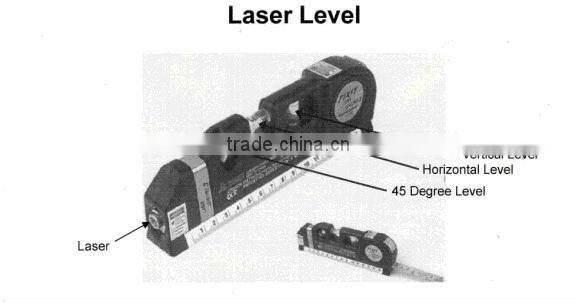

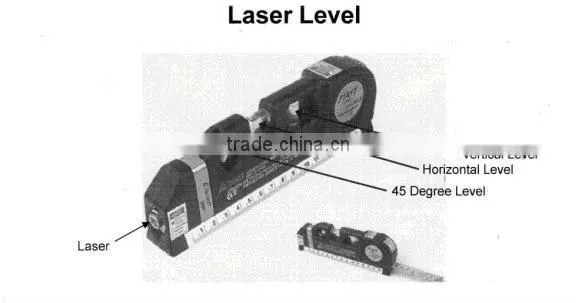

- Place the edge of the metal ruler on the laser level flat against the surface you want to measure.
- The respective indicator will indicate whether the surface is level or not.
Note: The air bubble in the indicator must be in the immediate middle of the 2 lines on the indicator tube in order to be level.
- Turn ON/OFF the Power Switch to project a laser in front of the Laser Level.
- Using a Flat-headed screwdriver, turn the metal nozzle of the laser around to produce different angled lines or a cross pinpoint.
Note: Be careful when turning the nozzle, do not break/scratch the glass protecting the laser.
- The measuring tape reel can be drawn out to measure lengths of up to 250cm/8ft.
- Press the Grey button on top of the roll of the measuring tape to automatically rell in the tape.
Warning!
·Aviod direct eye contact with laser.
· Handle with care and do not drop from heights to avoid damaging the glass indicators.
· When reeling in the measuring tape, feed it in slowly to avoid cuts or injuries.

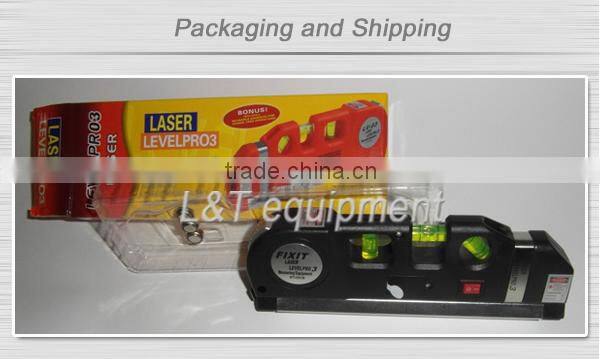

100 Unit/Carton,
Carton Dimension: 460*430*430mm
Total Net Weight: 22kgs
Total Gross Weight: 24kgs
Laser Level Measurement
