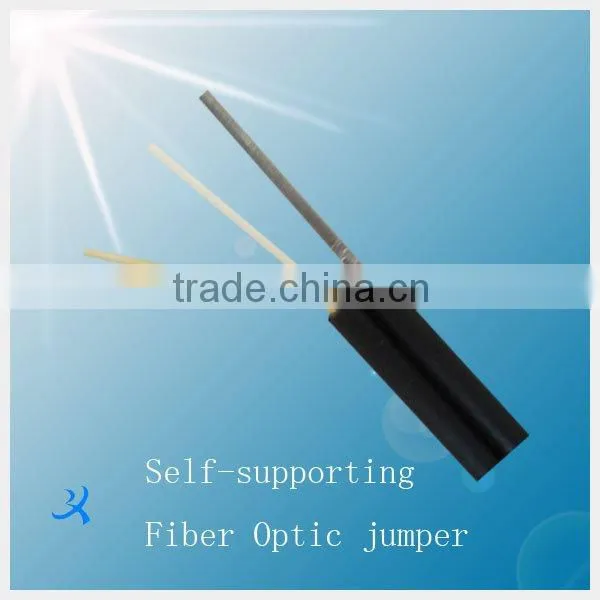

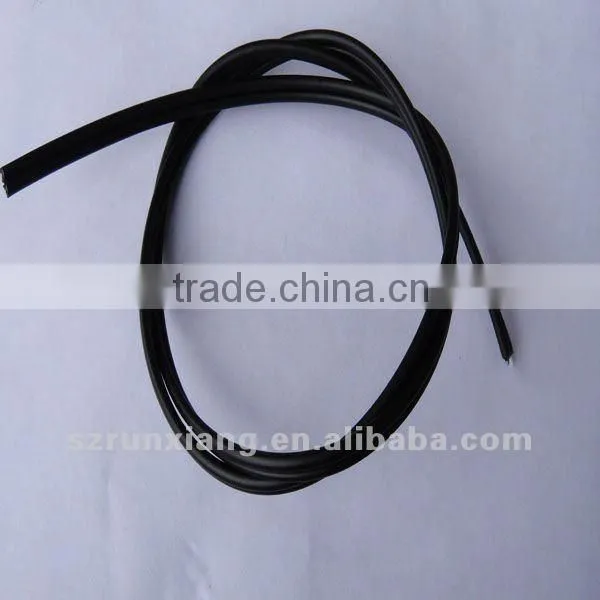

RX Fiber Optic Jumper Self-supporting

Name: RX Fiber Optic Jumper Self-supporting
Brand: szrunxiang
SKU: 105886401
Availability: InStock

Negotiable MOQ: 5000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

szrunxiang

Model Number:

RX-FIBER OPTIC JUMPE 1G.657A

Shenzhen Runxiang Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name szrunxiang

Model Number RX-FIBER OPTIC JUMPE 1G.657A

FIBER OPTIC JUMPER

CHARACTERISTICS OF PRODUCTS

Optical				Jacket Machine
Test items		Units	Spec	Test items	Units				Spec
Single-mode fiber cutoff wavelength		λc/nm	≤ 1250	Test material	—				PVC
		λcc/nm	≤ 1260
Maximum Attenuation @	1310nm	dB/km	≤ 0.40	Tensile Strength			Elongation at break
	1550nm	dB/km	≤ 0.30	Thermal aging treatment
Dispersion Coefficient	1288-1339nm	ps/nm•km	\|D\|≤3.5	Before		MPa/ %			≥12.5 ≥150
	1271-1360nm	Ps/nm•km	\|D\|≤5.3	After		%			20 ≥125
	1550nm	ps/nm•km	\|D\|≤18	Time		h			24×10
Zero dispersion Wavelength		nm	1300~1322	Temperature		°C			100±2
Zero dispersion slope		ps/nm²×km	≤0.092	Change rate after heating aging		%			20
Light source continuity		—	continuous
Others characteristics		Cable Net weight	1Core		22kg/km
		Product Length	m/Plywood Drum	500	1000			2000
