Electronic Theodolite White color Surveying Instrument

each to be packed in carton

Specifications

Electronic Theodolite White color Surveying Instrument

We Manufacture. Distribute. Service

L&T 20-Year Export Experience

Reliable and accurate angle measurement is easy with the DT-02 electronic theodolite, it benefits from simple operating functions and a large, clear display.

Ÿ Accurate to 2 sec of arc. You also can choose 5 sec / 10 sec /20 sec

Ÿ Reads to 1 sec of arc

Ÿ Erect image

Ÿ Stadia hairs for distance measuring

Ÿ Built in optical plummet

Ÿ Dual backlit displays

Ÿ Horizontal and vertical tangent drives

Ÿ Zero set and hold function

Ÿ Percent or degrees on vertical circle

Ÿ Rechargeable batteries

Ÿ RS-232C port allows data to be transferred by cable

Specification

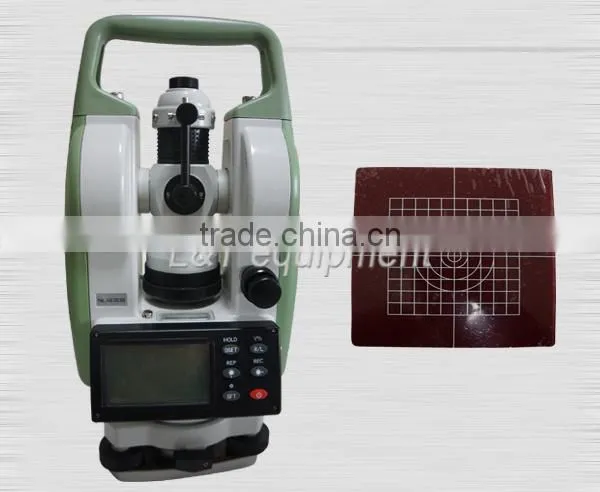

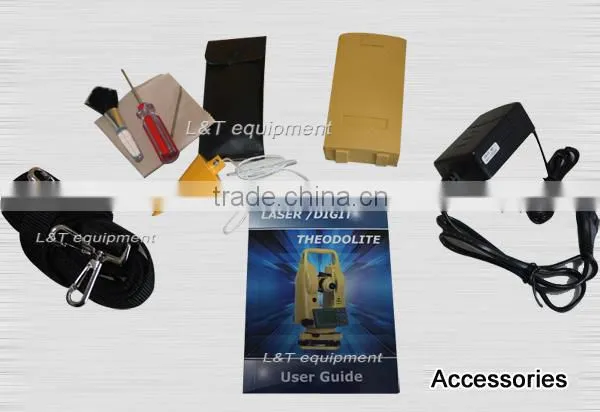

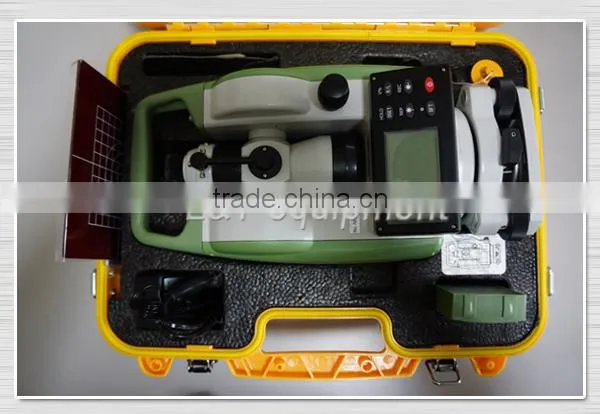

Sample Picture

Mode Setup Procedures

Before the instrument is delivered, initial set mode is: 360º system in angle unit, minimum reading

of 1″, disabled power off, zenith angle for vertical angle mode, and enabled vertical axis tilt

compensation function.

Assume the modes to be set as follows: 400 Gon system in angle unit, minimum reading of

1 mGon (5″), automatic power off in 30 minutes, height angle for vertical angle mode, and disabled

vertical axis tilt compensation function. Proper setup procedures are described as follows:

1. Start up the instrument, and vertical angle crosses zero.

2. Press  key and  key simultaneously, and the instrument will go to the state of mode setup. In LCD,

the upper left row is minimum reading, for instance, 1″ or 5″ in 360º system, and 0.5 or 1.0 mGon in 400

Gon system. The lower left row is automatic power off constant, for instance, 0 for disabled power off, 20

for 20 minutes, 30 for 30 minutes. The lower right row is vertical angle measurement modes, for instance,

Ua for zenith angle, Ub for vertical angle, and Uc for height angle. The middle part indicates enabled

compensation function. When the function is disabled, no indication exists.

3. Press  key to change the number (400 Gon) in the upper right row. Repeatedly press it to alternate 360

and 400.

4. Press  key to change the number (1.0 Gon) in the upper left row. Repeatedly press it to alternate 0.5

and 1.0 (Gon) or 1 and 5 (″).

5. Press  key twice to change the symbol of Ua into Uc in lower right row. Repeatedly press it display Ua,

Ub and Uc by turn.

6. Press  key twice to change the number 30 in lower left row. Repeatedly press it display 0, 20 and 30

by turn.

7. Press  key, and the TILT will disappear and the tilt compensator will be shut down. Repeatedly press

it to disable or enable the compensation function.

8. After completing the above settings, press  key and  key simultaneously, and the instrument will record

new settings and return to the state of angle measurement.
