Hot Sale! Optical Automatic Level Survey Instrument AL8
- Xingang of Tianjin
- T/T
You May Like
Product Details
Place of Origin | Tianjin, China | Brand Name | LT | |
Model Number | AL8 SEIRIES AL24 AL10 | Size | As per Specification | |
Precision | As per Specification | Wavelength | As per Specification |
Four sets in one carton
Carton Size: 300*350*400mm
Product Description
Hot Sale! Optical Automatic Level Survey Instrument AL8
Main Feature
CE ISO ROHS Certificate
3-Years Extended Warranty
This instrument is mainly suitable for high precision survey of engineering including construction project, mines, road, bridge, etc. It possesses convenient operation, clear image, water proof facility, type X air or magnetic damping and compensation mechanism, and precision of compensator. It is speedy and reliable as well.
Specification
Model | AL8-22 | AL8-26 | AL8-28 | AL8-32 |
Magnification | 22X | 26X | 28X | 32X |
Image | Erect | Erect | Erect | Erect |
Objective Aperture | 36mm | 36mm | 36mm | 36mm |
Field of View | 1°20' | 1°20' | 1°20' | 1°20' |
Minimum Focusing Distance | 1m | 1m | 1m | 1m |
Stadia Ratio | 100 | 100 | 100 | 100 |
Setting Accuracy | 0.5’’ | 0.5’’ | 0.5’’ | 0.5’’ |
Compensating Range | ±15' | ±15' | ±15' | ±15' |
Standard Deviation for 1Km Double Run Levelling | ±3.0mm | ±3.0mm | ±2.5mm | ±2.5mm |
Circular Level Sensitivity | 8’/2mm | 8’/2mm | 8’/2mm | 8’/2mm |
Horizontal Circle Graduating | 1° or 1gon | 1° or 1gon | 1° or 1gon | 1° or 1gon |
Net Weight | 1.8kg | 1.8kg | 1.8kg | 1.8kg |

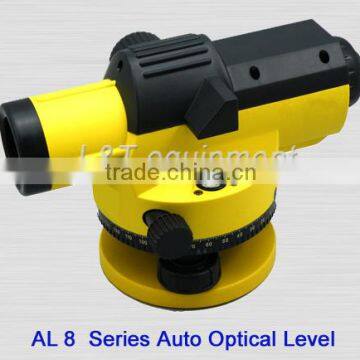

Sample Picture
Hot Sale! Optical Automatic Level Survey Instrument AL8
