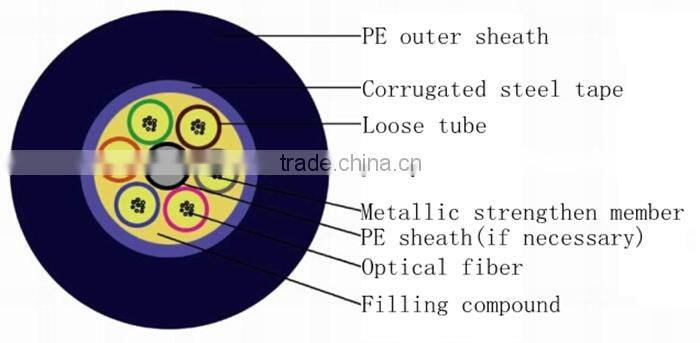

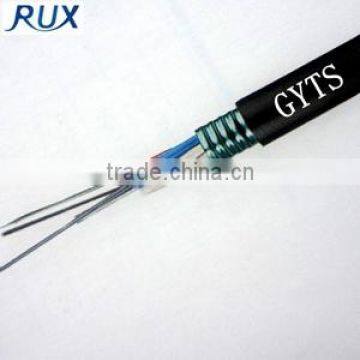

Help CenterAerial/Duct Single Armored Steel Tape 2-288 Cores GYTS Fiber Optic Cable
Related Products
-
Phosphated Flexible Wire Single Mode Aluminium Tape Fiber Optical GYTA CableUS$ 400 - 600MOQ: 10 Kilometers -
GJXFV Ftth Non-metallic Strength Member Condcutor FRP Optic Fiber CableUS$ 0.05 - 0.085MOQ: 5000 Meters
-
2014 New Outdoor Paired CAT 3 CABLE for TelephoneUS$ 0.1 - 10MOQ: 500 Meters
-
Shenzhen Runxiang Brand Cat3 Utp Cable PriceUS$ 0.07 - 0.2MOQ: 5000 Meters
-
Cat6 4 Pair Utp Network Cable With 305m PE SheathUS$ 0.21 - 0.38MOQ: 5000 Meters
Product Display
Fiber color code
NO | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
NO | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Purple | Pink | Aqua |
Product Characteristics:
1.PE sheath protects cable from ultraviolet radiation.
2.Special tube filling compound ensure the cable watertight
3.Good mechanical and temperature performance,specially desinged compact structure is good at preventing loose tubes from shrinking.
4.Steel wire used as the central strength member,100% cable core filling,APL moisture barrier.
Technical Data:
| Fiber range | Cable outer diameter(MM) | Cable weight (kg/km) | Min.bending radius(MM) | Allowable tension(N) | Max.crush loading force(N/100mm) | |||
| 2-30 | 9.8 | 95 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | ||||||
| 38-60 | 10.7 | 115 | ||||||
| 62-72 | 11.3 | 140 | ||||||
| 74-76 | 12.9 | 175 | ||||||
| 98-120 | 14.4 | 210 | ||||||
| 122-144 | 15.8 | 245 | ||||||
| 146-216 | 16.3 | 260 | ||||||
| 218-240 | 19.5 | 345 | ||||||
| 242-288 | 21.7 | 415 | ||||||
Packaging and Shipping
we usually complete the order within 10-15days.It also depends on the items and the order quantities.
Payment terms:
1) L/C at sight
2)T/T: 30% deposit by T/T, 70% balance by T/T before shipment.
3)Can as per client's request
Our Services
1.We are professional manufacture of optical fiber cables in China.
2.The cable size and material are customized,and your own logo or design are welcom.
3.We'll reply you in 12 hours after you send inquiry to us.
