new product universal beam manifacturer in china
product description
| Grade | Q235b,Q345B |
| Material | Black iron |
| Technique | Welding |
| Anti-corrosion | painting or galvanized |
| zine | 80-120g/sqm |
| thickness | according to the requirements |
| Features | Eco-frienly |
standard
H x B | T1 | T2 | JIS Weight | GB Weight |
100*100 | 6 | 8 | 16.9 | 17.2 |
125*125 | 6.5 | 9 | 23.6 | 23.8 |
294*200 | 8 | 12 | 55.8 | 57.3 |
294*302 | 12 | 12 | 83.4 | 85 |
300*300 | 10 | 15 | 93 | 94.5 |
300*305 | 15 | 15 | 105 | 106 |
346*174 | 6 | 9 | 41.2 | 41.8 |
350*175 | 7 | 11 | 49.4 | 50 |
350*250 | 9 | 14 | 78.1 | 79.7 |
344*348 | 10 | 16 | 113 | 115 |
350*350 | 12 | 19 | 135 | 137 |
496*199 | 9 | 14 | 77.9 | 79.5 |
500*200 | 10 | 16 | 88.2 | 89.6 |
506*201 | 11 | 19 | 102 | 103 |
482*300 | 11 | 15 |
| 115 |
488*300 | 11 | 18 | 125 | 129 |
596*199 | 10 | 15 | 92.5 | 95.1 |
600*200 | 11 | 17 | 103.4 | 106 |
606*201 | 12 | 20 | 118 | 120 |
582*300 | 12 | 17 | 133 | 137 |
588*300 | 12 | 20 | 147 | 151 |
594*302 | 14 | 23 | 170 | 175 |
692*300 | 13 | 20 | 163 | 166 |
700*300 | 13 | 24 | 182 | 185 |
800*300 | 14 | 26 | 207 | 210 |
900*300 | 16 | 28 | 240.1 | 243 |

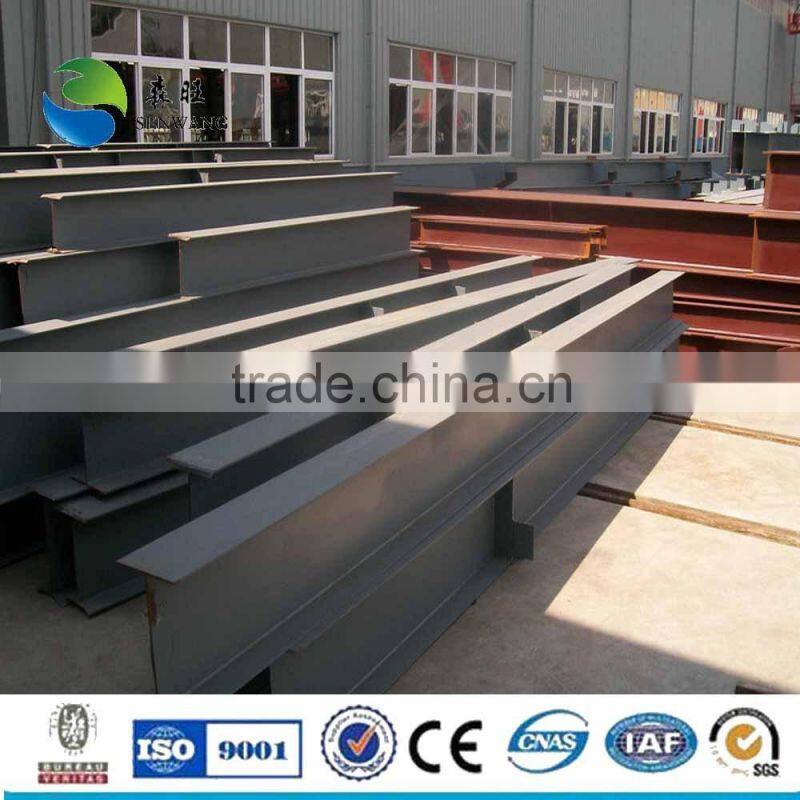

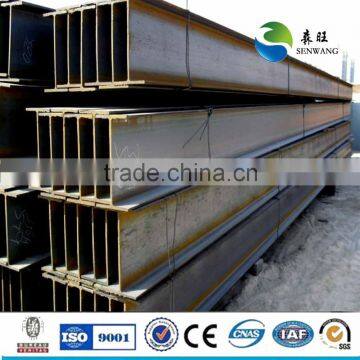

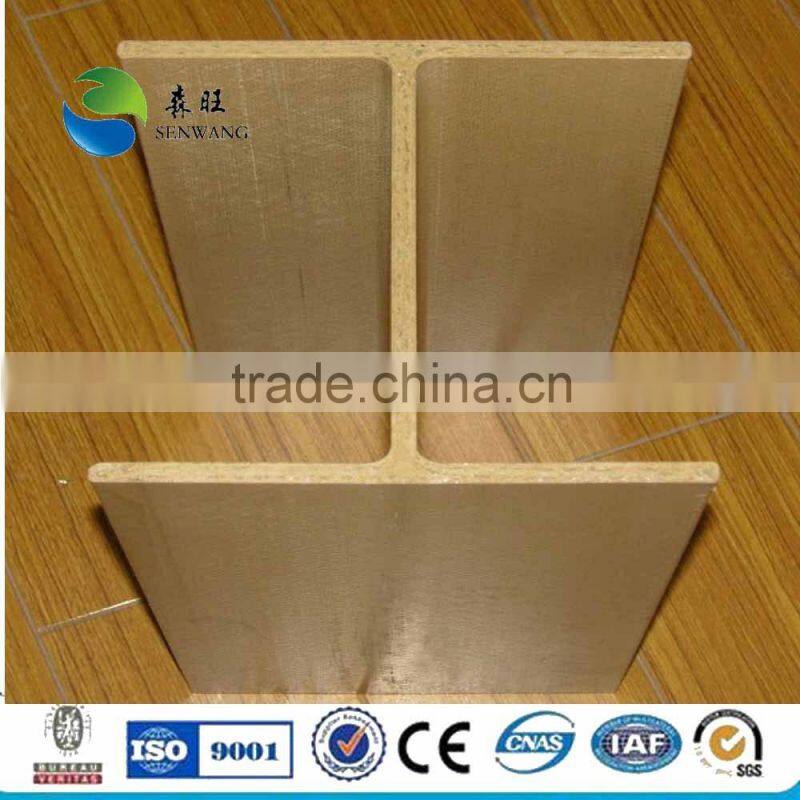

product show
Our factory have independent design institute and the Design qualification is the grade one .excellent design and the perfect price Beyond your imagination .If you want to a perfect warehouse and please provide to us that information wihich as follows;
Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
