Help CenterStranded Loose Tube GYHTY Fiber Optic Cable Price
Related Products
-
2-4 Cores GJXFH Ftth Fiber Optic Cable PriceUS$ 40 - 200MOQ: 20 Kilometers -
GYXTW Unitube Ftth Fiber Cable Price per MeterUS$ 1 - 50MOQ: 20 Kilometers
-
2 Cores GJYXFCH Fiber Optic Cable Price per MeterUS$ 0.063 - 0.07MOQ: 5 Kilometers
-
Telecommunication Optic Cable GJYXFCHUS$ 0.63 - 2.1MOQ: 10 Kilometers
-
Single Mode Fiber Optic Cable GJXFHUS$ 40 - 200MOQ: 10 Kilometers
Photos show
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation (+20°C) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
| |
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Weight kg/km | Tensile Strength
Long/Short Term N | Crush Resistance
Long/Short Term N/100mm |
Bending Radius
Static mm |
GYHTY-2~6 | 2~6 | 1 | 5 | 11.0 | 100 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-8~12 | 8~12 | 2 | 4 | 11.0 | 100 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-14~18 | 14~18 | 3 | 3 | 11.0 | 100 | 600/1500 | 300/1000 | 10D/20D |
GYHTY -20~24 | 20~24 | 4 | 2 | 11.0 | 100 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-26~30 | 26~30 | 5 | 1 | 11.0 | 100 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-32~36 | 32~36 | 6 | 0 | 11.0 | 100 | 600/1500 | 300/1000 | 10D/20D |
Product Description

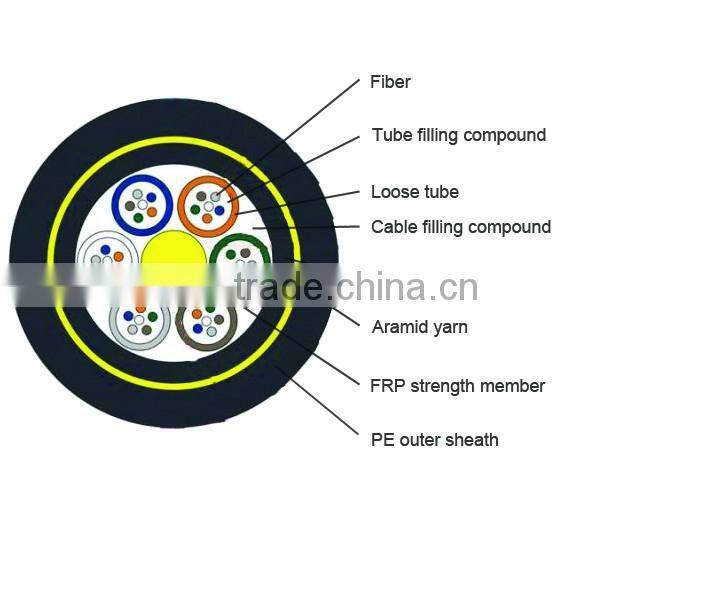

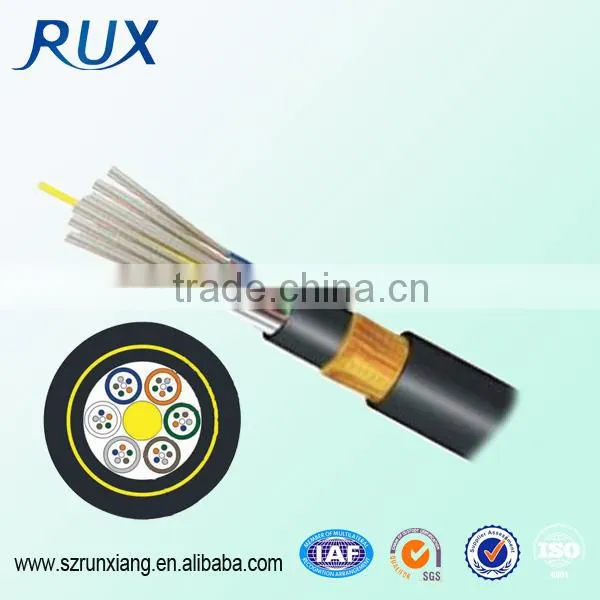

Stranded loose tube GYHTY fiber optic cable price puts 250μm fiber in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. Then, a layer of aramid yarn is applied as additional strength member and the cable is completed with a polyethylene (PE) outer sheath.
Our Services
1.Professional fiber optic cable manufacturer for many years
2.Customized is availble
3.Competitve price with high quality
4.Quick delivery time
Packaging & Shipping

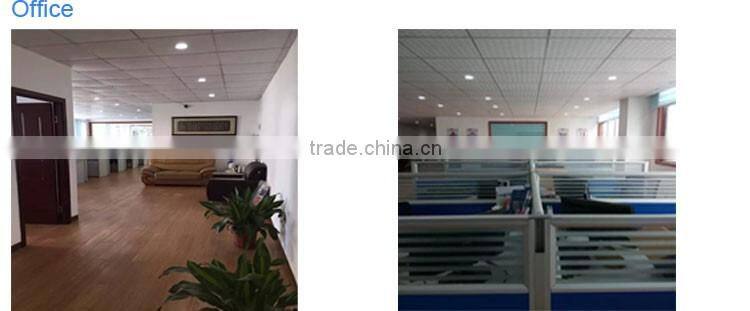

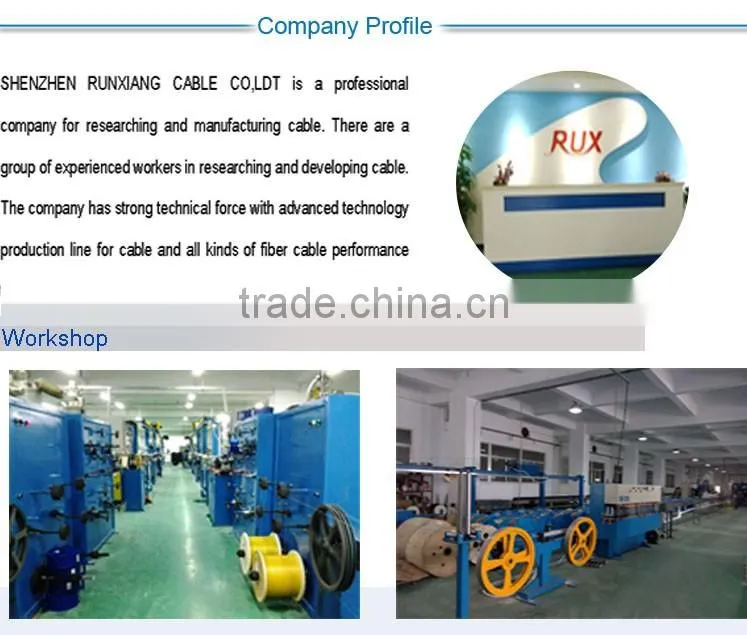

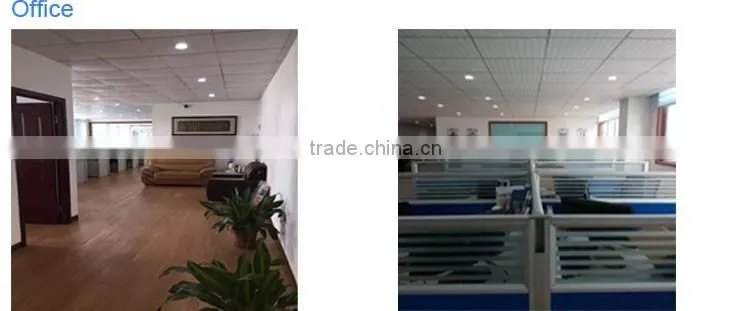

Company Information
Certificate
FAQ
