Place of Origin
Tianjin, China
Brand Name
ME
Model Number
MDJ50
Power
Electronic
Usage
Other, gear testing machine
Introduction

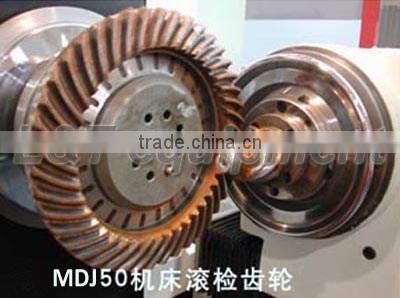

This machine is used to test contact surface of a pair of gears(straight bevel gears, spiral bevel gears and hypoid gears, diameter up to 500mm) that are at right angle and rotating at opposite direction. The test result will be applied to:
- Final inspection of gear parts to determine contact area and best locating distance.
- Determine adjustment data for gear cutting machine to modify contact area.
- Inspection during gear batch production to keep consistency.
- To get modify data to compensate heat treatment distortion by comparing test result of gear pairs before and after heat treatment.
Specifications
Max. diameter of work | 500mm | |
Shaft angle between driving spindle and driven spindle | 90° | |
Offset of driven headstock | above center | 75mm |
below center | 75mm | |
Distance from spindle axis of driving headstock to spindle nose of driving headstock | 120-310mm | |
Distance from spindle axis of driven headstock to spindle nose of driving headstock | 120-120mm | |
Driving spindle speed | 720/1440rpm | |
Main motor power | 3/4.5kw | |
Taper hole of driving spindle and driven spindle | Diameter at large end | 100mm |
Taper | 1:20 | |
Depth of taper hole | 180mm | |
