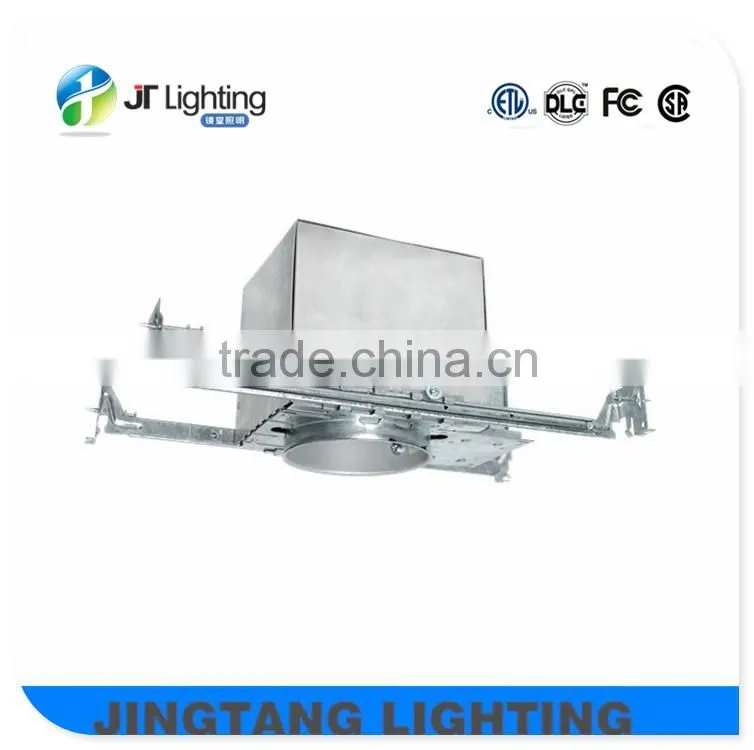

Recessed ic airtight downlight housing with T bar 4 inch etl listed
Item No.: K4-IA
| Item | Description |
| Item No. | K4-IA |
| Brand | JINGTANG |
| Item Wattage | 50w max / led 12w max |
| Item Voltage | 120V-277V |
| CCT | 2700-6500k |
| Size | 4 inch |
| Item Series | recessed downlight housing |
| Item Type | new construction ic airtight |
| Material | Aluminum / Iron |
| Approval | ETL |
Description
• Designed for direct contact with insulation
• Can be installed in 1/2" to 1-3/8" thick ceilings
• Includes adjustable hanger bars with integral nail
• J-Box listed for through-branch circuit wiring (2 in-2 out or 4 in-4 out), five
1/2" knockouts and four romex knockouts with strain clamps
• ETL listed for damp location W/Feed through
Housing
Die-formed aluminum for maximum heat dissipation and rust protection
Designed for New Construction installation and suitable for using in insulation covered ceilings
Housing can be installed in 1/2" to 1-3/8" thick ceilings.
Hanger Bar
Allow housing to be positioned and locked at nay point within a 24" joist span.
Can be shortened for 12" joists.
Can be positioned on long or short axis of the housing.
Contain integral nail.
Hanger fit onto T-bar spline for quick alignment.
Junction Box
ETL listed for through branch wiring 2 in-2 out or 4 in-4 out J-box for your better choices.
Designed for straight through conduit runs 1/2" and 3/4" romex wiring knockouts.
Pre-wired junction box provided with removable access plate.
Knockouts equipped with pry out slots.
All leads are #18AWG wire, ground wire is connected to the bottom, quick connectors are supplied on all leads.
