Help CenterAlloy Structural Steel 5140 Scr440 41cr4 1.7035 Hot Forged Steel Bar
Related Products
-
Aisi 4140 Din 42crmo4 Steel BarUS$ 890 - 1,130MOQ: 1 Ton -
Forged Steel SAE 4140 Steel Round Bar/ Round Steel Bar 1.7225US$ 100 - 2,600MOQ: 1 Ton
-
HR Alloy Steel Round Bar 4140/4140 Alloy Steel/SAE 4140 Steel PriceUS$ 100 - 2,600MOQ: 1 Ton
-
4140 4150 Sae1020 1045 Ss400 Steel Round BarUS$ 500 - 1,000MOQ: 1 Ton
-
Scm440 Material SpecificationUS$ 890 - 1,130MOQ: 1 Ton
1.Product Name |
Alloy structural steel 5140 Scr440 41cr4 1.7035 hot forged steel bar -Dongguan Yaoteng Trade |
|||||||||||||||
2.Equvalent Grade |
AISI 5140/5150 , ASTM 5140/5150 , GB40Cr/50Cr. |
|||||||||||||||
3.Comparative Standards |
GB, AISI, ASTM, ASME, EN, BS, DIN, JIS. |
|||||||||||||||
|
4.Chemical Compositions |
|
|||||||||||||||
|

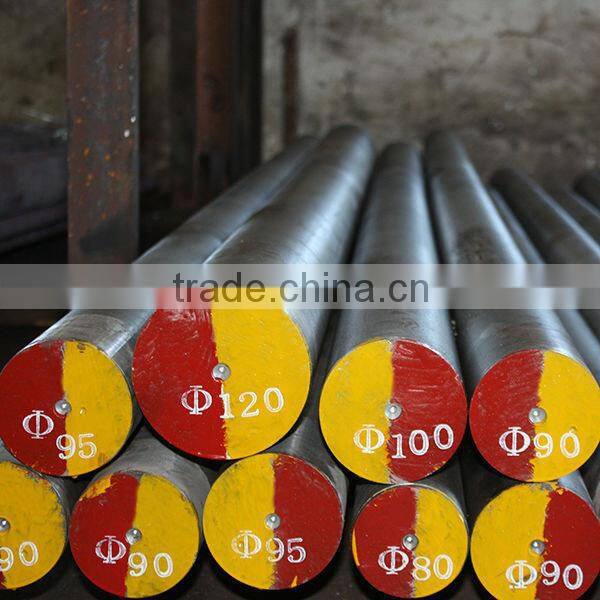

5.Specifications Round bar |
Diameter:1mm-2000mm.
|
|||||||||||||||
|

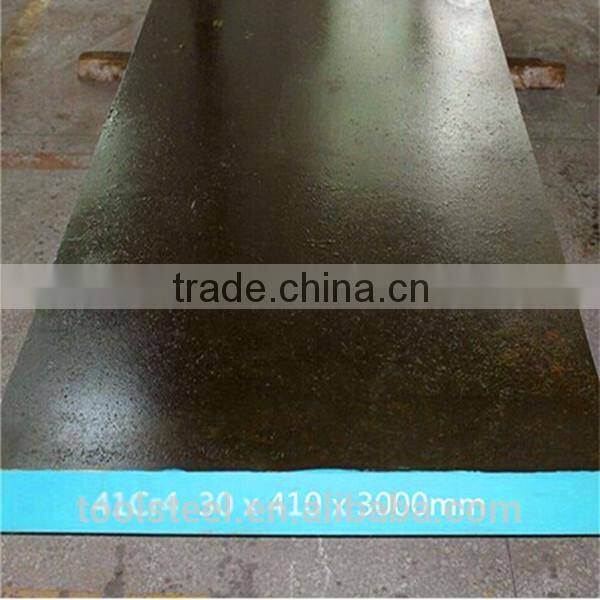

6.Specifications Plate |
Cold-rolled sheet:Thickness:2-5mm Width:1000mm Length:2000mm Hot-rolled sheet:Thickness;6-80mm Width:210-610mm Length:We can supply any length based on the customer's requirement. |
|||||||||||||||
7.FOB Port |
Shenzhen or Guangzhou port. | |||||||||||||||
8.Surface Conditions |
scaled(hot working finish)/ground/rough machining/fine machining/based on the customer's requirement. |
|||||||||||||||
9.Furnaces for metallurgical processiong |
electrode arc+LF/VD/VOD/ESR/VACUUM consumable electrode. |
|||||||||||||||
10.Ultrasonice inspecition |
100% ultrasonic inspection for any inperfections or based on the customer's requirement. |
|||||||||||||||
11. mechanical properties |
Tensile strength σb (MPa): ≥ 980 (100)
Yield strength σs (MPa): ≥ 785 (80)
Elongation δ5 (%): ≥ 9
Reduction of area ψ (%): ≥ 45
Impact energy Akv (J): ≥ 47
Impact toughness value of alpha kv (J/cm2): ≥ 59 (6)
Hardness: ≤ 207HB
Sample size: Sample size is 25mm rough
|
|||||||||||||||
12. Heat treatment and microstructure specifications |
Heat treatment specifications: quenching 850 ℃, oil cooling; tempering 520 ° C, water-cooled, oil-cooled. |
|||||||||||||||
13.Payment |
30% advance by T/T;Balance pay before the shipment against shipping documents or irrevocable LC at sight. | |||||||||||||||
14.Delivery Time |
7-15 days. | |||||||||||||||
15. Process flow |
Electric arc furnace melting→Refining furnace → Vacuum treatment furnace → Cast ingot → Steel ingot anneal → Heating → High-speed forging,refining forging → Anneal,retarded cooling,air cooling → Quenching and tempering tretment → Finishing operation → Text → Finished products. | |||||||||||||||
16.MOQ |
||||||||||||||||
Another STOCK STEEL FOR PROMOTION: | ||||||||||||||||
17.Hot work tool steel |
DIN 1.2343, 1.2344, 1.2365, 1.2367, 1.2581, 1.2714, 1.2885, etc. |
|||||||||||||||
AISI H10, H10A, H11, H12, H13, H21, L6, etc. | ||||||||||||||||
JIS SKD5, SKD6, SKD61, SKT4, etc. | ||||||||||||||||
18.Plastic Mould Steel |
DIN 1.2083, 1.2085, 1.2311, 1.2312, 1.2316, 1.2738, etc. |
|||||||||||||||
AISI 420, P20, P20+S, P20+Ni, etc. | ||||||||||||||||
DAIDO NAK80 | ||||||||||||||||
19.High Speed Steel |
DIN 1.3343, 1.3355/ AISI M2, T1. |
|||||||||||||||
20.Alloy steel |
AISI/SAE 4140, 4130, 4340, 8620, 8640, etc. |
|||||||||||||||
