2015 New Bafang Crank Motor Electric Bike JB-TDBM22Z

Name: 2015 New Bafang Crank Motor Electric Bike JB-TDBM22Z
Brand: JOBO
SKU: 105862015

US$ 500 - 700 MOQ: 5 Pieces

Key Specifications

Wattage:

351 - 500w

Voltage:

36V

Power Supply:

Lithium Battery

Jinhua JOBO Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Wattage 351 - 500w

Voltage 36V

Power Supply Lithium Battery

Wheel Size Other, 28”

Motor Other, Brushless, Crank /Rear Motor 500W

Certification CE

Frame Material Aluminum Alloy

Foldable No

Max Speed Other, <30km/h, 25-32KM/H

Range per Power 31 - 60 km

Place of Origin Zhejiang, China

Brand Name JOBO

Model Number JB-TDBM22Z

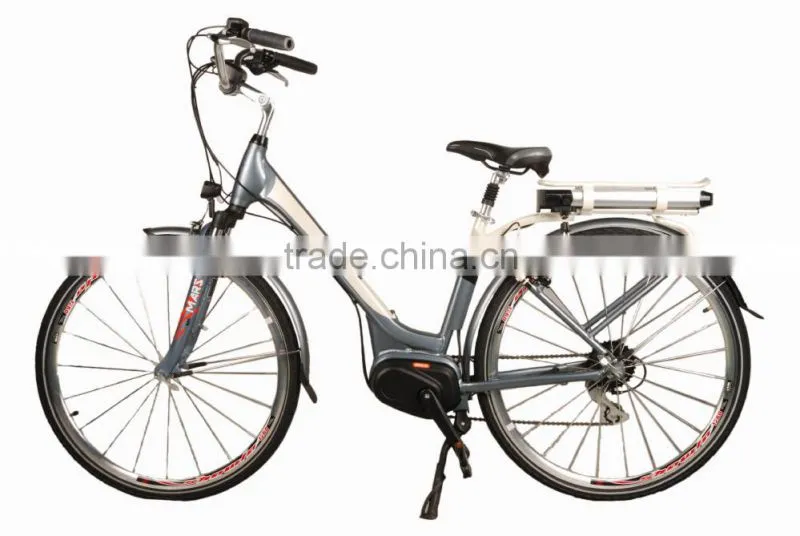

2015 new Bafang crank motor electric bike JB-TDBM22Z

Product Description

New released model !!!
	Charge time: 4-6H
	Charger life: >500 times
* frame:6061#Aluminum alloy	Charger: 100V AC - 240V AC
* Bafang crank motor	Max speed:25-30km/h
* 36V/9Ah Samsung battery	Driving distance:>50kms
* RST suspension Fork	Loading capacity: 120kg
* Brake: front disc brake/rear disc brake	Available colors: black, silve or other colours
* Brake lever: Tektro Brand	Pedal Assistant System: 1:1
* Handle Bar/Stem: ZOOM Brand	JOBO-LCD display on handle bar:
*Saddle/post : Velo saddle, Suspension post	with 0-5-9 level PAS speed
* Dimension of tyre:KENDA 700C×40C	container loading: 20"FCL 94pcs
* Sibang headlight and LED taillight	N.W:27kgs; G.W: 30kg
* Shimano 8 speed gears	Packing carton:1557825
* VELO soft grip,black mountain mudguard
