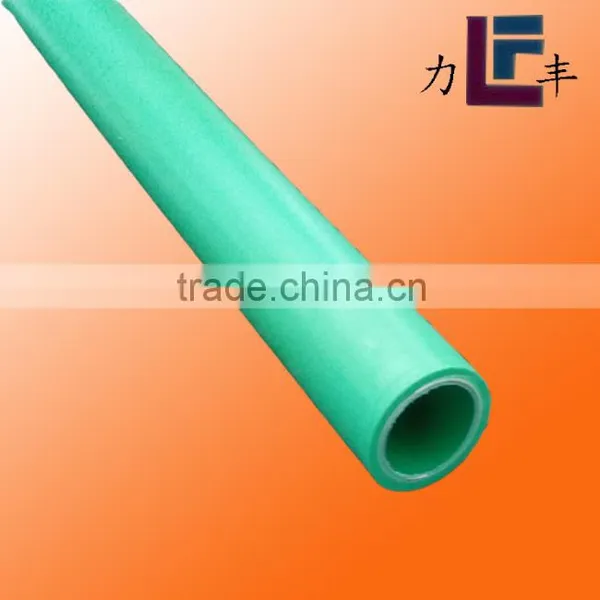

pn12.5 for water supply PPR-AL-PPR pipe
PPR-AL-PPR Pipes profiles
PPR-AL-PPR pipe is composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with mel adhesive to the mid-layer of aluminum core which is longitudinally welded in a butt welded or overlap-welded way, this kind of pipe is the perfect union of metal and the plastic ones.
PPR-AL-PPR pipe features
Sizes: 16 to 32mm
Pressure Rating: 0.5MPa, 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa
Colors: blue, black or other colors on request
Connection: socket fusion joint, butt fusion joint, electro fusion joint, flanged joint
Certification: ISO9001, ISO14001, DIN8077-8078,GB/T18742
Applications: water supply, industrial liquids transportation and sewage treatment
Advantages
*Compared with the ppr plastic pipe, the ppr composite pipe has the same strength, reluctant to retain former shapes
*Smooth inner surface of the pipe reduces resistance to the fluids. The ability to conduct water is 30% more efficient
*Super properties of high temperature, high pressure and corrosion resistance
*Good property of heat preservation, heat conduction coefficient is 0.45 W/m.k, which is much less than metal pipes and it can save insulation materials outside the pipe
*Easy to cut and install. It can be connected with special fittings instead of screw fittings; small diameter pipes can be rolled and packaged. Once bent in order than many directional parts such as elbow s or angles are no longer recessing very convenient to install, much time and labor cost can be saved
*Life pan of the composite pipe is more than 50 years
Packing Information
1. Normally, we will apply polyethylene bag and carton.
2. We can also arrange it according to customers’ requirements.
3. Different packing will appear to different products.
