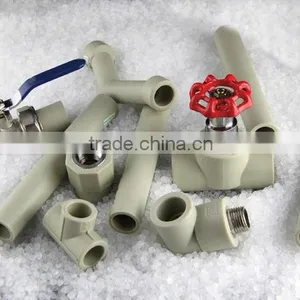

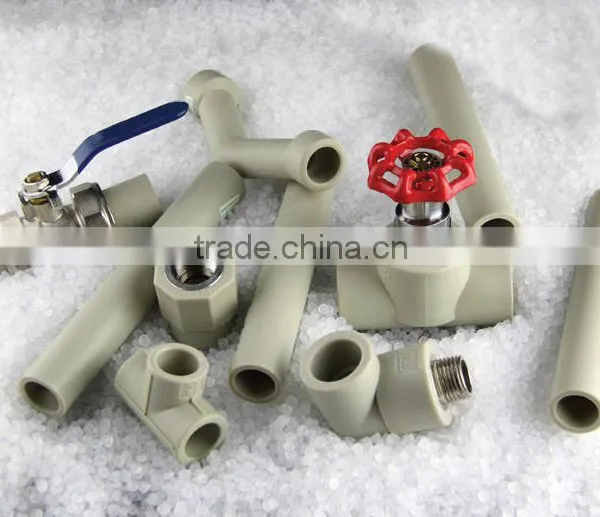

PPR fiberglass pipe for water supply
anti-corrosion
lower price fast delivery
Temp. range -40~95 degree
PP-R Water Supply Pipe size table
|
|
PN 1.25MPa |
PN 1.6MPa |
PN 2.0MPa |
PN 2.5MPa |
|
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
16 |
|
1.9 |
2.2 |
|
20 |
2 |
2.3 |
2.8 |
3.4 |
25 |
2.3 |
2.8 |
3.5 |
4.2 |
32 |
2.9 |
3.6 |
4.4 |
5.4 |
40 |
3.7 |
4.5 |
5.5 |
6.7 |
50 |
4.6 |
5.6 |
6.9 |
8.3 |
63 |
5.8 |
7.1 |
8.6 |
10.5 |
75 |
6.8 |
8.4 |
10.1 |
12.5 |
90 |
8.2 |
10.1 |
12.3 |
15 |
110 |
10 |
12.3 |
15.1 |
18.3 |
160 |
14.6 |
17.9 |
21.9 |
26. |
Product Characteristic
- Light weight: Density is 0.89-0.92g/cm3 only 1/9 of steel pipe, 1/10 of purple steel pipe. Due to light weight,it can reduce the transportation cost and works for installing
- Long service life: Under the normal environment temperature,and the working pressure of PP-R pipe is 10kg/cm2 its service life is longer than other pipes made of different material, the reason is that it has the anti-heat performance( the service life is up to 50 years under 70℃.
- Good anti-corrosion property: The ion in the water and the chemical matter in the building can't make the pipe cause extra chemical reaction, it can't rust,erode,and bring the bacillus.
Low thermal conductivity: Heat conduction is 0.23-0.24W/mk at 20oC, it is much lower than that of steel pipe(43-52W/mk) and purple steel pipe (333W/mk). - Strong heat resistance: When the working water temperature is 70oC, It can be used for long time,when it is used for short term,the temperature reaches 95oC.
- Firm pipe fittings connection :Because polypropylene has fine thermal casting performance, thermal casting between the pipe and pipe fittings with the same material as a integration, it can prevent water leaking.
- Recycling property:During being produced, constructed and used, it has no pollution to environment, its waste can be recycled, it is belong to healthy product.
The mating of PP-R pipe system is complete, so it can meet the project mating requirement of water supply pipe in the room and residential district.
Packing Information
1. Normally, we will apply polyethylene bag and carton.
2. We can also arrange it according to customers’ requirements.
3. Different packing will appear to different products.
Transport Information
One roll size is 0.54*0.2*0.54=0.058CBM.
Container size |
Available Volume |
Rolls can hold |
20ft |
26CBM |
1850 |
40ft |
56CBM |
4000 |
40HQ |
67CBM |
4750 |
Company Description
Zhuji City Sanli Rifeng Pipe Industrial Co., Ltd. Is located in Zhuji,Zhejiang Province,China.We specialize in manufacturing and export PEX,PERT,PE pipes for large application fields. We get ISO9001-2008 Certification, and our management are to the ISO rules.Our main products such as PEX-AL-PEX hot water/underfloor heating pipe,PERT-AL-PERT hot water/underfloor heating pipe and PE gas pipe have exported to American and European. our products are with the best quality for the cheapest prices.
Besides,we also accept customized. Customers just need to send your sample to us ,then you will get the best product and service.
♥Whatever pipes you want,we will try our best to supply for you.
♥We have rich experience of design, manufacture and sell lingerie.
♥ Sample can be offered with sample charge and courier fee by buyer's side.
♥Looking forward to receive good news from u.
♥Best wishes!
