Green Pex al Pex Pipe Price
- ningbo/shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Lifeng | |
| Model Number | LF1216/1418/1620/2025/2026/2632 | Material | pex | |
| Heat Conductivity | 0.45w/mk | Specification | 16~32mm | |
| Linear Expansion Coefficient | 0.025mm/mk | Outer Diameter | 16~32mm | |
| Length | 50/100/200m/coil | Thickness | can be customized | |
| Standard | GB/T18742-2002 | Color | White,Red,etc |
Product Description
Green pex al pex pipe price
anti-corrosion
well packing and faxt shippment
high strength light weight
1.Products Description
Lifeng Aluminum -plastic composite pipe is consists of aluminum sheet with inner and outer layer plastic ,tightly bonded with a special adhesive to the aluminum sheet that is welded in overlapping and butt welding way.
It have advantage of both metal and plastic pipe sit can be used in:
1.Pipes for hot and cold water pipeline system in industry and residential area.
2.Pipes for industry and chemical liquids conveying .
3.Pipes for conveying drinking water .
4.pipeline for compressed air.
5.Heating system under floor and wall.
2.Main Characteristics
Light weight, high strength------------------------------1/8 to mental pipe
Pipe design is scientific with no-leakage-------------antioxygen
Long time life-----------------------------------------------duration up to 50 years
Low and High temperature resistant-----------------40℃-95℃
High pressure resistant-----------------------------------1.25Mpa
Conveniently and easy Installation--------------------Hot melt connection
Can be buried and detected-----------------------------aluminum protect layer
Energy-saving------------------------------------------------thermal conductivity is 1/200 of metal pipe

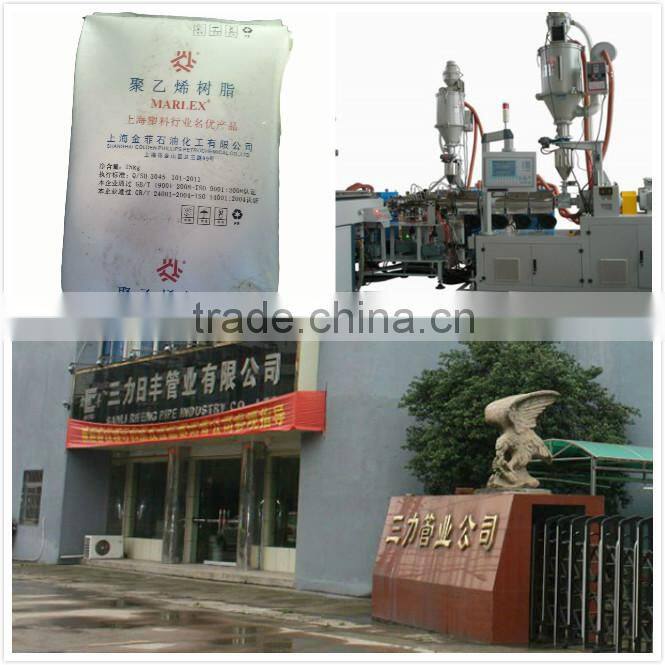

3.Material+pipe line+Company
4.Detail goods
A:Type:Butt welding+overlapped
B:Size:1014,1216,1418,1522,1620,2025,2026,2632
C,Pex/al/pex pipe ,pex-al-pe pipe ,pe-al-pe pipe,pert-al-pert pipe
D,In rolls and bar
E:Data:Temperature:95C,Pressure:10bar
Overlapped | Desc. | Modle No. | Spec. | Wall thickness(mm) | Qty/pack(M) |
| PE-AL-PEPE-AL-PE(Cold water+gas) | LF1-1 | 1216 | 2.0 | 100/200/300 |
LF1-2 | 1418 | 2.0 | 100/200 | ||
LF1-3 | 1620 | 2.0 | 100/200 | ||
LF1-4 | 2025 | 2.5 | 100 | ||
LF1-5 | 2026 | 3.0 | 100 | ||
LF1-6 | 2632 | 3.0 | 50/100 | ||
PEX-AL-PE(X) (Hot water +gas) | LF2-1 | 1216 | 2.0 | 100/200/300 | |
LF2-2 | 1418 | 2.0 | 100/200 | ||
LF2-3 | 1620 | 2.0 | 100/200 | ||
LF2-4 | 2025 | 2.5 | 100 | ||
LF2-5 | 2026 | 3.0 | 100 | ||
LF2-6 | 2632 | 3.0 | 50/100 | ||
PEX-AL-PEX (Hot water +gas) | LF3-1 | 1216 | 2.0 | 100/200/300 | |
LF3-2 | 1418 | 2.0 | 100/200 | ||
LF3-3 | 1620 | 2.0 | 100/200 | ||
LF3-4 | 2025 | 2.5 | 100 | ||
LF3-5 | 2026 | 3.0 | 100 | ||
LF3-6 | 2632 | 3.0 | 50/100 |
Butt welding | Desc. | Modle No. | Spec. | Wall thickness(mm) | Qty/pack(M) |
| PE-AL-PEPE-AL-PE(Cold water+gas) | LF1-1 | 1216 | 2.0 | 100/200/300 |
LF1-2 | 1418 | 2.0 | 100/200 | ||
LF1-3 | 1620 | 2.0 | 100/200 | ||
LF1-4 | 2025 | 2.5 | 100 | ||
LF1-5 | 2026 | 3.0 | 100 | ||
LF1-6 | 2632 | 3.0 | 50/100 | ||
PEX-AL-PE(X) (Hot water +gas) | LF2-1 | 1216 | 2.0 | 100/200/300 | |
LF2-2 | 1418 | 2.0 | 100/200 | ||
LF2-3 | 1620 | 2.0 | 100/200 | ||
LF2-4 | 2025 | 2.5 | 100 | ||
LF2-5 | 2026 | 3.0 | 100 | ||
LF2-6 | 2632 | 3.0 | 50/100 | ||
PEX-AL-PEX (Hot water +gas) | LF3-1 | 1216 | 2.0 | 100/200/300 | |
LF3-2 | 1418 | 2.0 | 100/200 | ||
LF3-3 | 1620 | 2.0 | 100/200 | ||
LF3-4 | 2025 | 2.5 | 100 | ||
LF3-5 | 2026 | 3.0 | 100 | ||
LF3-6 | 2632 | 3.0 | 50/100 |
5.Packing and Shipping
A:In bar or rolls as request
B,With plastic bag+Craft paper+ctn+pallet
C,Customer logo and print accept
D,Delivery date:15 days after order confirmed.
E:Produce pipe and fitting both ,save more area and cost for shipping
6.Our service
A:90% of products export,Main market is Europe ,Middle east.
B:High +stable quality with good equiment machine+lab+experience
C:Pipe +fitting systems with the certificates of CE.
D:24hours on lines
